- WhichTractor size: Utility
- Not independently tested
- 1993–1998
- 483 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

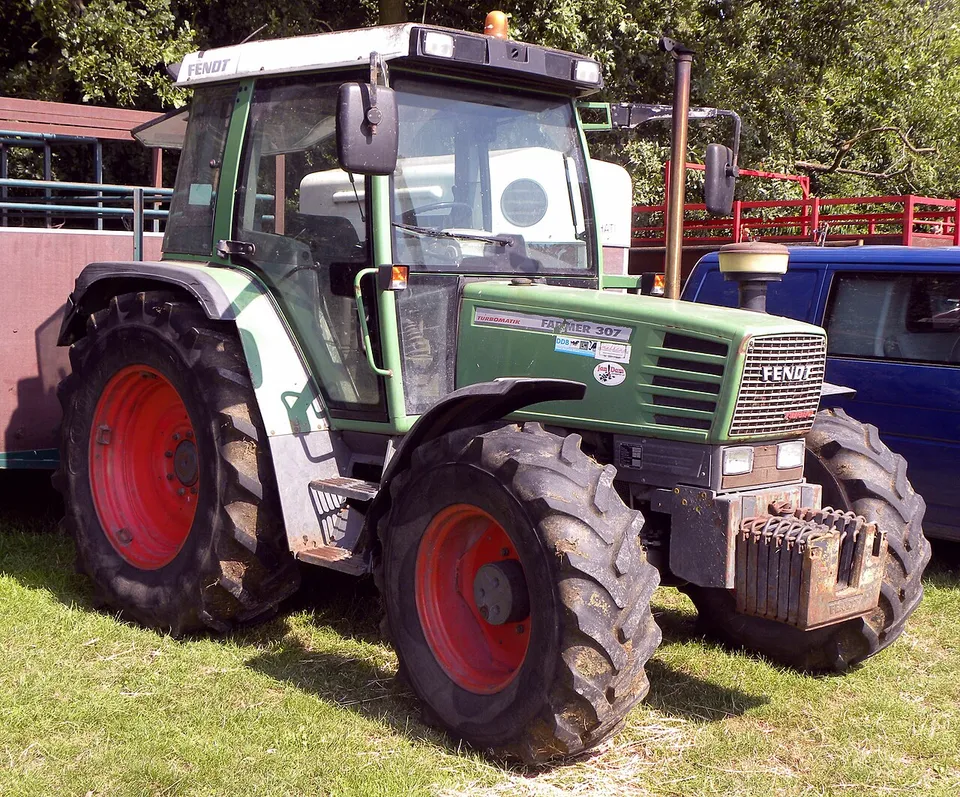

Fendt Farmer 307 Full specifications
MWM TD 226.B-3 three-cylinder diesel. The manufacturer claimed 74 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
74 hp
55 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fendt Farmer 307”, claimed
- Weight
- 8,488 lb
- Hyd. flow
- 18.8 gpm
- Top speed
- 24.9 mph
Fendt Farmer 307 specs: key facts
The Fendt Farmer 307 was built from 1993 to 1998.
The Fendt Farmer 307 has a claimed engine power (gross or net not stated) of 55 kW (74 hp); it has no measured PTO figure.
The Fendt Farmer 307 is four-wheel drive (4WD).Source 2
The Fendt Farmer 307 has a MWM TD 226.B-3 engine, a 3-cylinder 3.12 L diesel unit.
The Fendt Farmer 307 weighs 3,850 kg (8,488 lb) unladen.
The Fendt Farmer 307 has an independent rear PTO running at 540/750/1000 rpm.Source 2
The hydraulic pump of the Fendt Farmer 307 delivers 71.0 L/min (18.8 gpm).
Source · Traktorenlexikon, “Fendt Farmer 307”
.jpg){kind=link}
How much horsepower does a Farmer 307 have?
The only figure for the Farmer 307 is 74 hp (55 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fendt Farmer 307”
What engine is in a Farmer 307?
A Farmer 307 has an MWM TD 226.B-3, a 3-cylinder 3.12 L diesel engine.
| Make & model | MWM TD 226.B-3 |
|---|---|
| Cylinders | 3, liquid-cooled |
| Displacement | 190.2 ci · 3.12 L |
| Max torque | 226 lb·ft · 306 N·m @ 1,500 rpm |
| Injection | Direct injection |
Source · Traktorenlexikon, “Fendt Farmer 307”
How much will a Farmer 307 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the Farmer 307 are below.
| Pump flow | 18.8 gpm · 71.0 L/min |
|---|---|
| Hitch category | Category 2Source 2On record for 1 of 2 configurations |
| Rear PTO | engine-driven, 540/750/1000 rpmEngages under load |
Source · Traktorenlexikon, “Fendt Farmer 307”
What transmission does a Farmer 307 have?
Transmission specifications for the Farmer 307 are below.
| Clutch | Single-disc dry clutch |
|---|---|
| Brakes | Hydraulically operated full-disc brake, acting on the rear wheels |
| Steering | Hydrostatic ZF steering with integrated synchronizing cylinder |
| Top speed | 24.9 mph · 40 km/h |
Source · Traktorenlexikon, “Fendt Farmer 307”
How much does a Farmer 307 weigh?
A Farmer 307 weighs 8,488 lb (3,850 kg) unladen.
| Unladen weight | 8,488 lb · 3,850 kg |
|---|---|
| Maximum permissible mass | 14,330 lb · 6,500 kg |
| Wheelbase | 84.7 in · 2,152 mm |
| Length | 153.1 in · 3,890 mm |
| Width | 83.1 in · 2,110 mm |
| Height | 105.1 in · 2,670 mm |
| Ground clearance | 18.9 in · 480 mm |
| Front track | 61.8–67.7 in · 1,570–1,720 mmthe article lists alternatives |
| Rear track | 65.0 in · 1,650 mm |
Source · Traktorenlexikon, “Fendt Farmer 307”
Which tractors compare with a Farmer 307?
Within 10% of its 74 hp of claimed engine power, the same type, and first built within 15 years of it.
- Massey Ferguson MF 3055 (A)74 hp engine, claimed · 1993–1995Side by side with the Farmer 307 →
- Claas Celtis 42674 hp engine, claimed · 2003–2008Side by side with the Farmer 307 →
- Fendt Farmer 304 LS/Turbo74 hp engine, claimed · 1990–1998Side by side with the Farmer 307 →
- Fendt Farmer 304 LSA74 hp engine, claimed · 1990–1998Side by side with the Farmer 307 →
- Deutz-Fahr Agrotron 4.8074.0 hp engine, claimed · 1995–1997Side by side with the Farmer 307 →
- Deutz-Fahr Agroplus 7574.0 hp engine, claimed · 1997–2005Side by side with the Farmer 307 →
Everything else people ask
Is a Farmer 307 two-wheel drive or four-wheel drive?
The Fendt Farmer 307 is four-wheel drive (4WD).
What PTO does a Farmer 307 have?
A Farmer 307 has a 540/750/1000 rpm rear PTO.
