- Rigid chassis
- WhichTractor size: Utility
- Not independently tested
- 1996–2003
- 2,807 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

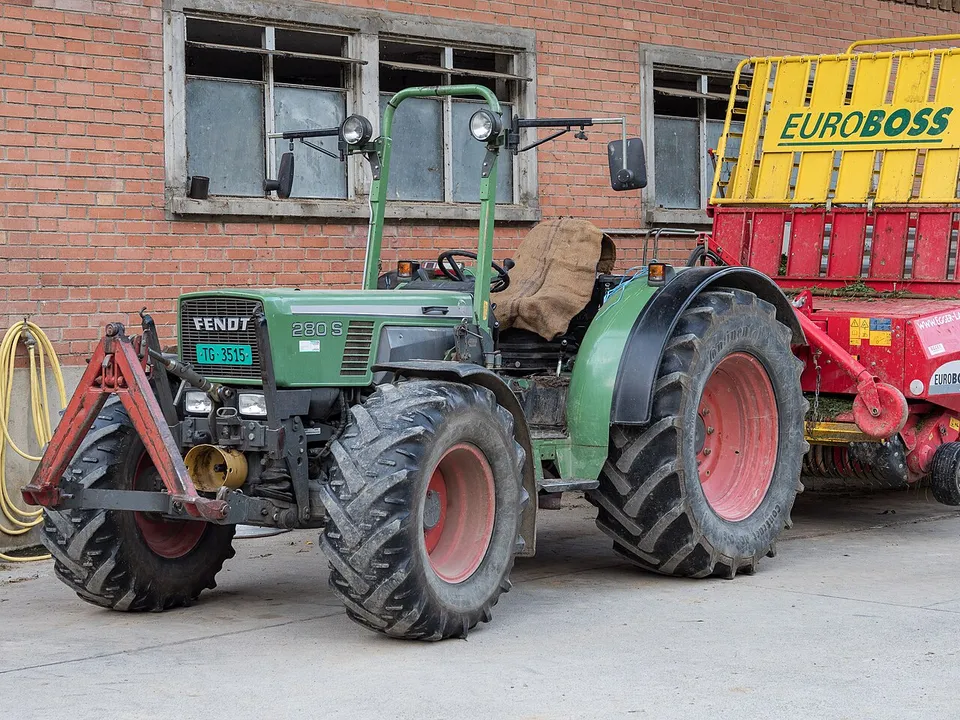

Fendt Farmer 280 S Full specifications
Deutz F4L 913 four-cylinder diesel. The manufacturer claimed 78.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
78.6 hp
58.6 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fendt Farmer 280 S”, claimed
- Weight
- 6,548 lb
- Hyd. flow
- 9.7 gpm
- Top speed
- 24.9 mph
Fendt Farmer 280 S specs: key facts
The Fendt Farmer 280 S was built from 1996 to 2003.
The Fendt Farmer 280 S has a claimed engine power (gross or net not stated) of 58.6 kW (78.6 hp); it has no measured PTO figure.
The Fendt Farmer 280 S is four-wheel drive (4WD).
The Fendt Farmer 280 S has a Deutz F4L 913 engine, a 4-cylinder 4.09 L diesel unit.
The Fendt Farmer 280 S weighs 2,970 kg (6,548 lb) unladen.
The Fendt Farmer 280 S has an independent rear PTO running at 540/750/1000 rpm.
The hydraulic pump of the Fendt Farmer 280 S delivers 36.6 L/min (9.7 gpm).
Source · Traktorenlexikon, “Fendt Farmer 280 S”
How much horsepower does a Farmer 280 S have?
The only figure for the Farmer 280 S is 78.6 hp (58.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fendt Farmer 280 S”
What engine is in a Farmer 280 S?
A Farmer 280 S has a Deutz F4L 913, a 4-cylinder 4.09 L diesel engine.
| Make & model | Deutz F4L 913 |
|---|---|
| Cylinders | 4, air-cooled |
| Displacement | 249.3 ci · 4.09 L |
| Max torque | 201 lb·ft · 272 N·m @ 1,550 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fendt Farmer 280 S”
How much will a Farmer 280 S lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the Farmer 280 S are below.
| Pump flow | 9.7 gpm · 36.6 L/min |
|---|---|
| Hitch category | Category 2 |
| Rear PTO | Independent, engine-driven, 540/750/1000 rpm @ 2,104 engine rpmEngages under load |
| PTO shaft | 1 3/8"-6 splines ( Form-A ) |
Source · Traktorenlexikon, “Fendt Farmer 280 S”
What transmission does a Farmer 280 S have?
Transmission specifications for the Farmer 280 S are below.
| Top speed | 24.9 mph · 40 km/h |
|---|
Source · Traktorenlexikon, “Fendt Farmer 280 S”
How much does a Farmer 280 S weigh?
A Farmer 280 S weighs 6,548 lb (2,970 kg) unladen.
| Unladen weight | 6,548 lb · 2,970 kg |
|---|---|
| Maximum permissible mass | 11,023 lb · 5,000 kg |
| Wheelbase | 85.8 in · 2,180 mm |
| Length | 143.1 in · 3,635 mm |
| Width | 74.0 in · 1,880 mm |
| Height | 92.5 in · 2,350 mm |
| Ground clearance | 13.4 in · 340 mm |
| Front track | 58.8 in · 1,494 mm |
| Rear track | 59.1 in · 1,502 mm |
Source · Traktorenlexikon, “Fendt Farmer 280 S”
Which tractors compare with a Farmer 280 S?
Within 10% of its 78.6 hp of claimed engine power, the same type, and first built within 15 years of it.
- Hürlimann H-478.4 Club78.9 hp engine, claimed · 1998–2003Side by side with the Farmer 280 S →
- AGRIFULL A-80 DL78.9 hp engine, claimed · 1993–1995Side by side with the Farmer 280 S →
- AGCO-ALLIS 568078.9 hp engine, claimed · 1991–1997Side by side with the Farmer 280 S →
- AGCO-ALLIS 668078.9 hp engine, claimed · 1991–1997Side by side with the Farmer 280 S →
- URSUS 932/93478.9 hp engine, claimed · 1990–2003Side by side with the Farmer 280 S →
- Lamborghini R 774-80 (DT)78.9 hp engine, claimed · 1989–1998Side by side with the Farmer 280 S →
Everything else people ask
Is a Farmer 280 S two-wheel drive or four-wheel drive?
The Fendt Farmer 280 S is four-wheel drive (4WD).
What PTO does a Farmer 280 S have?
A Farmer 280 S has a independent 540/750/1000 rpm rear PTO on a 1 3/8"-6 splines ( Form-A ) shaft.
Where this page comes from
Compiled from Traktorenlexikon, “Fendt Farmer 280 S”.
