WhichTractor
  • Vehicle type: unspecified
  • Rigid chassis
  • WhichTractor size: Compact
  • No lab test on file
  • 1982–1985
  • 290 built

It sits on the compact/utility boundary, so either size is a fair description. It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category

We looked and the record does not say what this machine is. How we decide what a machine is

Fendt Farmer 303 LSA specs: hp, weight, years

MWM D 226.3.2 three-cylinder diesel. The manufacturer claimed 51.1 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

51.1 hp

38.1 kW as stated by the source

No lab test on file

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Fendt Farmer 303 LSA”, claimed

This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.

Weight
7,088 lb
Hyd. flow
10.8 gpm
Top speed
24.9 mph

Fendt Farmer 303 LSA specs: key facts

  • The Fendt Farmer 303 LSA was built from 1982 to 1985.

  • The Fendt Farmer 303 LSA has a claimed engine power (gross or net not stated) of 38.1 kW (51.1 hp); it has no measured PTO figure.

  • The Fendt Farmer 303 LSA is four-wheel drive (4WD).

  • The Fendt Farmer 303 LSA has a MWM D 226.3.2 engine, a 3-cylinder 3.12 L diesel unit.Source 1

  • The Fendt Farmer 303 LSA weighs 3,215 kg (7,088 lb) unladen.

  • The Fendt Farmer 303 LSA has an independent rear PTO running at 540/650/750/1000 rpm.

  • The hydraulic pump of the Fendt Farmer 303 LSA delivers 40.7 L/min (10.8 gpm).

Source · Traktorenlexikon, “Fendt Farmer 303 LSA”

How does the Farmer 303 LSA compare with its class?

  • Worth knowing:

    An unladen mass of 3,215 kg is high for its class — 40% above the median of 2,300 kg across the 315 machines within 10% of its power that hold this figure.

Derived by WhichTractor from 315 comparable records. How we work this out

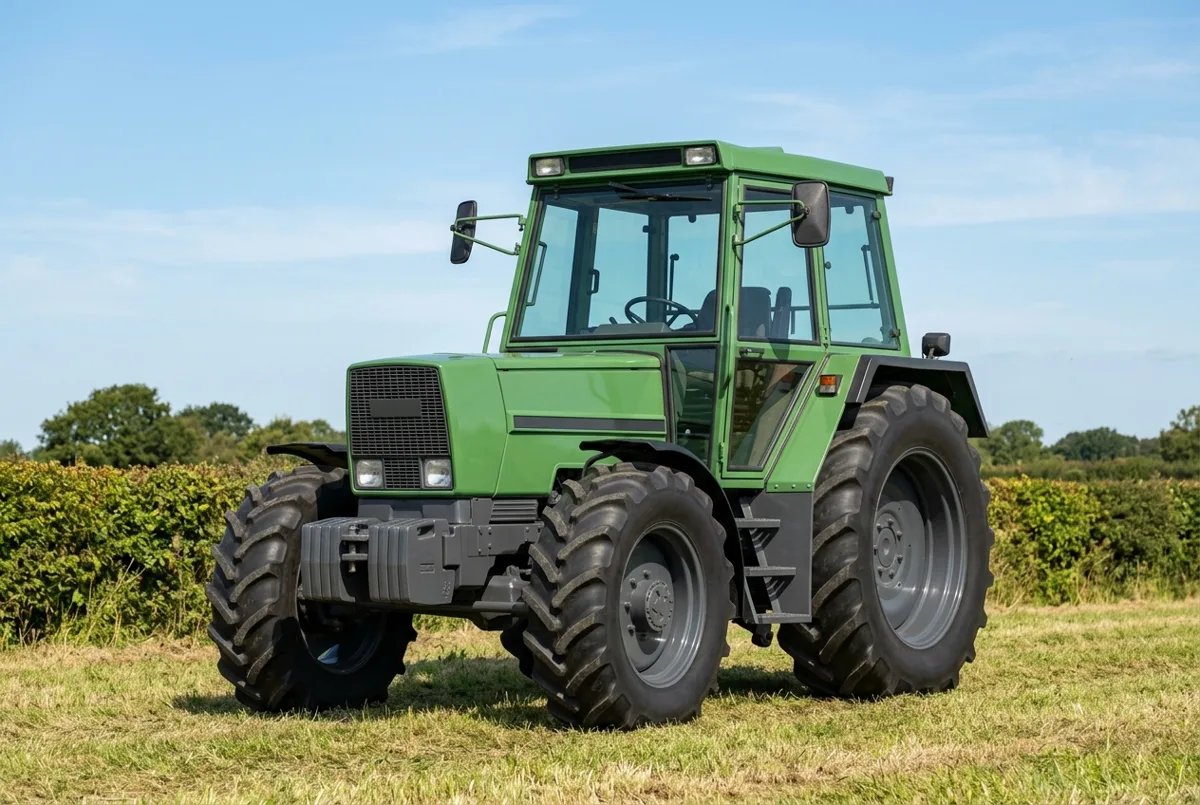

Illustration of the 1982–1985 Fendt Farmer 303 LSA, a 51 hp farm tractor, a drawing generated from its specification record
Illustration — not a photograph

How much horsepower does a Farmer 303 LSA have?

The only figure for the Farmer 303 LSA is 51.1 hp (38.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
51.1 hp

Source · Traktorenlexikon, “Fendt Farmer 303 LSA”

What engine is in a Farmer 303 LSA?

A Farmer 303 LSA has an MWM D 226.3.2, a 3-cylinder 3.12 L diesel engine.

Engine — Farmer 303 LSA engine specifications
Make & modelMWM D 226.3.2
Cylinders3, liquid-cooledSource 2
Displacement190.2 ci · 3.12 L
Max torque148 lb·ft · 201 N·m @ 1,499 rpmSource 2
Electrical system12 VSource 2

Source · Traktorenlexikon, “Fendt Farmer 102 LS/LSA”

How much will a Farmer 303 LSA lift, and what is its hydraulic flow?

Hydraulic and PTO specifications for the Farmer 303 LSA are below.

Hydraulics & PTO — Farmer 303 LSA hydraulics and PTO specifications
SystemOpen centre
Pump flow10.8 gpm · 40.7 L/min
Rear PTOIndependent, engine-driven, 540/650/750/1000 rpm @ 2,230 engine rpmEngages under load
PTO shaft1 3/8'-6 splines (Form-A)

Source · Traktorenlexikon, “Fendt Farmer 303 LSA”

What transmission does a Farmer 303 LSA have?

Transmission specifications for the Farmer 303 LSA are below.

Transmission — Farmer 303 LSA transmission specifications
ClutchSingle-plate dry clutch from Fichtel & Sachs with upstream Voith fluid coupling
Top speed24.9 mph · 40 km/h

Source · Traktorenlexikon, “Fendt Farmer 303 LSA”

How much does a Farmer 303 LSA weigh?

A Farmer 303 LSA weighs 7,088 lb (3,215 kg) unladen.

Weights & dimensions — Farmer 303 LSA weights and dimensions
Unladen weight7,088 lb · 3,215 kg
Maximum permissible mass11,023 lb · 5,000 kg
Wheelbase86.3 in · 2,192 mm
Length148.8 in · 3,780 mm
Width77.6 in · 1,971 mm
Height100.5 in · 2,552 mm
Ground clearance13.3 in · 338 mm
Front track59.7 in · 1,517 mm
Rear track59.3 in · 1,506 mm
Turning radius, braked13.3 ft · 4.06 m

Source · Traktorenlexikon, “Fendt Farmer 303 LSA”

What oil does a Farmer 303 LSA take, and how much?

A Farmer 303 LSA engine takes 7.7 qt (7.25 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

Farmer 303 LSA fluid capacities, grades and service intervals
SystemCapacity
Engine oil7.7 qt · 7.25 LSource: Traktorenlexikon, “Fendt Farmer 303 LSA” · single source, not independently verified
Transmission34.3 qt · 32.5 LSource: Traktorenlexikon, “Fendt Farmer 303 LSA” · single source, not independently verified
Hydraulic19.0 qt · 18 LSource: Traktorenlexikon, “Fendt Farmer 303 LSA” · single source, not independently verified
Cooling system10.1 qt · 9.6 LSource: Traktorenlexikon, “Fendt Farmer 303 LSA” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

Which tractors compare with a Farmer 303 LSA?

Within 10% of its 51.1 hp of claimed engine power, the same type, and first built within 15 years of it.

Common questions about the Fendt Farmer 303 LSA

Is a Farmer 303 LSA two-wheel drive or four-wheel drive?

The Fendt Farmer 303 LSA is four-wheel drive (4WD).

What PTO does a Farmer 303 LSA have?

A Farmer 303 LSA has a independent 540/650/750/1000 rpm rear PTO on a 1 3/8'-6 splines (Form-A) shaft.

Sources and how this page was built

Compiled from Traktorenlexikon, “Fendt Farmer 102 LS/LSA”; and Traktorenlexikon, “Fendt Farmer 303 LSA”.

Sources checked

14 SEP 2026

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Fendt Farmer 102 LS/LSA — CC BY-SA 4.0, WIKIBOOKS-TL-98278 · revision 993752. Wikibooks contributors (Traktorenlexikon). Original document
  2. Traktorenlexikon: Fendt Farmer 303 LSA — CC BY-SA 4.0, WIKIBOOKS-TL-98595 · revision 990734. Wikibooks contributors (Traktorenlexikon). Original document
