Fendt Farmer 102 specs: hp, weight, years

3 D 325-3 three-cylinder diesel or Ab 1972 = MWM D 325-3 diesel. The manufacturer claimed 39.3 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

39.3 hp

29.3 kW as stated by the source

No lab test on file

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Fendt Farmer 102”, claimed

This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.

Weight
5,049 lb
Hyd. flow
8.0 gpm
Top speed
16.0 mph

Fendt Farmer 102 specs: key facts

  • The Fendt Farmer 102 was built from 1972 to 1974.

  • The Fendt Farmer 102 has a claimed engine power (gross or net not stated) of 29.3 kW (39.3 hp); it has no measured PTO figure.

  • The Fendt Farmer 102 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.Source 2

  • The Fendt Farmer 102 has a 3 D 325-3 engine, a 3-cylinder 2.55 L diesel unit.

  • The Fendt Farmer 102 weighs 2,290 kg (5,049 lb) unladen.

  • The Fendt Farmer 102 has an independent rear PTO running at 559 rpm.

  • The hydraulic pump of the Fendt Farmer 102 delivers 30.5 L/min (8.0 gpm).

Source · Traktorenlexikon, “Fendt Farmer 102”

How does the Farmer 102 compare with its class?

  • Strength:

    13 forward gears is high for its class — 117% above the median of 6 across the 181 machines within 10% of its power that hold this figure.

Derived by WhichTractor from 182 comparable records. How we work this out

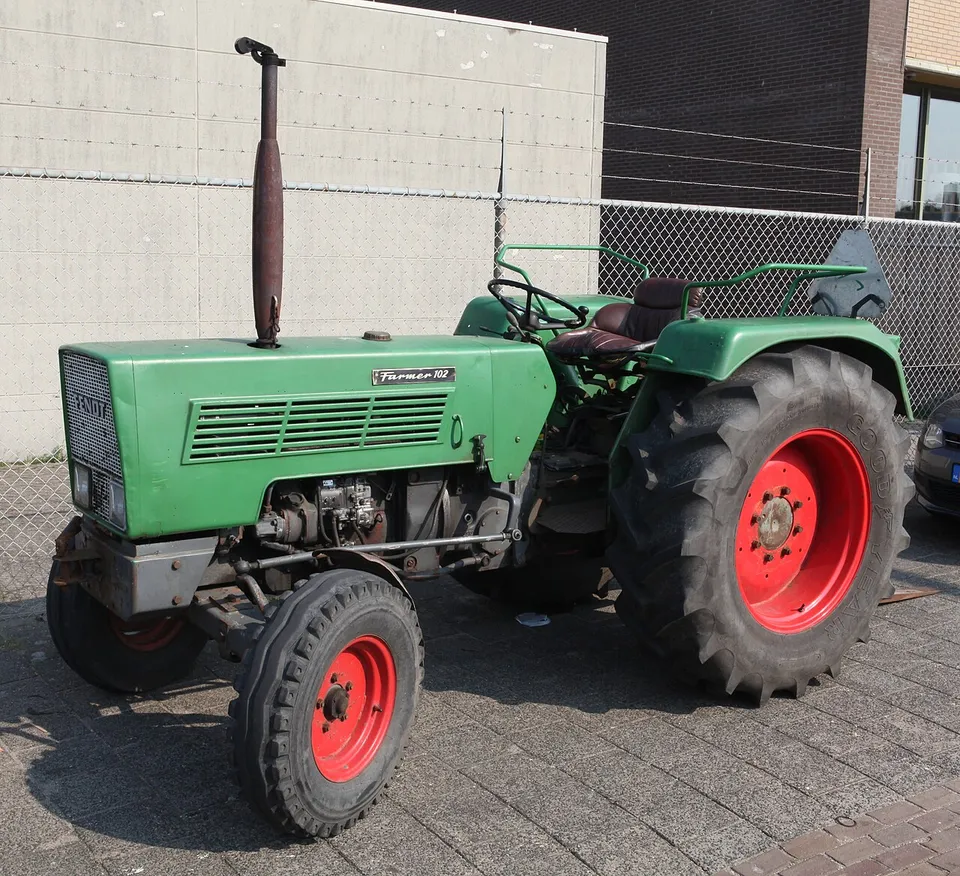

Fendt Farmer 102 tractor
Photo: Joost J. Bakker from IJmuiden, CC BY 2.0 via Wikimedia Commons · Wrong photo?

How much horsepower does a Farmer 102 have?

The only figure for the Farmer 102 is 39.3 hp (29.3 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
39.3 hp

Source · Traktorenlexikon, “Fendt Farmer 102”

What engine is in a Farmer 102?

A Farmer 102 has a 3 D 325-3, a 3-cylinder 2.55 L diesel engine. Diesel tractors have a Ab 1972 = MWM D 325-3. Diesel tractors have a Ab 1972 = MWM D 325-3.

Engine — Farmer 102 engine specifications
Make & model3 D 325-3
Cylinders3, air-cooled
Displacement155.6 ci · 2.55 L
Electrical system12 V

Source · Traktorenlexikon, “Fendt Farmer 102”

How much will a Farmer 102 lift, and what is its hydraulic flow?

Hydraulic and PTO specifications for the Farmer 102 are below.

Hydraulics & PTO — Farmer 102 hydraulics and PTO specifications
Pump flow8.0 gpm · 30.5 L/min
Pressure2,489 psi · 172 barSource 2
Rear PTOIndependent, engine-driven, 559 rpm

Source · Traktorenlexikon, “Fendt Farmer 102”

What transmission does a Farmer 102 have?

Transmission specifications for the Farmer 102 are below.

Transmission — Farmer 102 transmission specifications
ClutchDouble-sprung Tornado single-disc dry clutch for normal driving
BrakesFoot-operated internal cam brake acting mechanically on rear wheels
SteeringGemmer steering
Top speed16.0 mph · 25.8 km/h

Source · Traktorenlexikon, “Fendt Farmer 102”

How much does a Farmer 102 weigh?

A Farmer 102 weighs 5,049 lb (2,290 kg) unladen.

Weights & dimensions — Farmer 102 weights and dimensions
Unladen weight5,049 lb · 2,290 kg
Maximum permissible mass8,433 lb · 3,825 kg
Wheelbase82.0 in · 2,083 mm
Length142.7 in · 3,625 mm
Width67.2 in · 1,706 mm
Height92.7 in · 2,354 mm
Ground clearance15.2 in · 385 mm
Front track53.5 in · 1,360 mm
Rear track53.5–59.1 in · 1,360–1,500 mmthe article lists alternatives
Turning radius, braked12.0 ft · 3.65 m

Source · Traktorenlexikon, “Fendt Farmer 102”

What oil does a Farmer 102 take, and how much?

A Farmer 102 engine takes 8.2 qt (7.75 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

Farmer 102 fluid capacities, grades and service intervals
SystemCapacity
Engine oil8.2 qt · 7.75 LSource: Traktorenlexikon, “Fendt Farmer 102” · single source, not independently verified
Transmission3.3 qt · 3 LSource: Traktorenlexikon, “Fendt Farmer 102” · single source, not independently verified
Front axle6.3 qt · 6 LSource: Traktorenlexikon, “Fendt Farmer 102 S/SA” · single source, not independently verified
Final drives3.1 qt · 2.9 LSource: Traktorenlexikon, “Fendt Farmer 102 S/SA” · single source, not independently verified
Cooling system10.6 qt · 10 LSource: Traktorenlexikon, “Fendt Farmer 102 S/SA” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

Which tractors compare with a Farmer 102?

Within 10% of its 39.3 hp of claimed engine power, the same type, and first built within 15 years of it.

Common questions about the Fendt Farmer 102

Is a Farmer 102 two-wheel drive or four-wheel drive?

The Fendt Farmer 102 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.

What PTO does a Farmer 102 have?

A Farmer 102 has a independent 559 rpm rear PTO.

Sources and how this page was built

Compiled from Traktorenlexikon, “Fendt Farmer 102”; and Traktorenlexikon, “Fendt Farmer 102 S/SA”.
