- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1961–1967
- 10,935 built
It sits on the compact/utility boundary, so either size is a fair description. It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

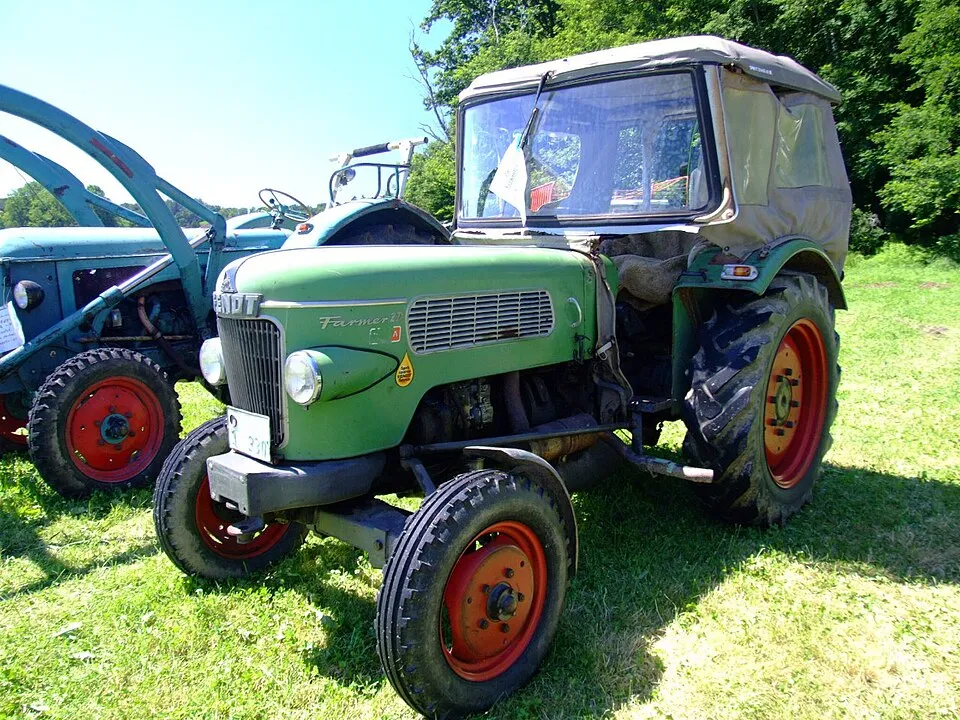

Fendt Farmer 2D specs: hp, weight, years
The manufacturer claimed 27.5 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
27.5 hp
20.5 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fendt Farmer 2 D”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 3,968 lb
- Hyd. flow
- 4.2 gpm
- Top speed
- 12.4–18.3 mph
Fendt Farmer 2D specs: key facts
The Fendt Farmer 2D was built from 1961 to 1967.
The Fendt Farmer 2D has a claimed engine power (gross or net not stated) of 20.5 kW (27.5 hp); it has no measured PTO figure.
The Fendt Farmer 2D is two-wheel drive (2WD).
The Fendt Farmer 2D weighs 1,800 kg (3,968 lb) unladen.
The Fendt Farmer 2D has a rear PTO running at 553/1106 rpm.
The hydraulic pump of the Fendt Farmer 2D delivers 16.0 L/min (4.2 gpm).
Source · Traktorenlexikon, “Fendt Farmer 2 D”
How much horsepower does a Farmer 2D have?
The only figure for the Farmer 2D is 27.5 hp (20.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fendt Farmer 2 D”
How much will a Farmer 2D lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the Farmer 2D are below.
| Pump flow | 4.2 gpm · 16.0 L/min |
|---|---|
| Pressure | 1,740 psi · 120 bar |
| Rear PTO | engine-driven, 553/1106 rpm |
| PTO shaft | Splined shaft profile according to DIN 9611 |
Source · Traktorenlexikon, “Fendt Farmer 2 D”
What transmission does a Farmer 2D have?
Transmission specifications for the Farmer 2D are below.
| Clutch | Tornado duplex clutch (dual clutch DO 250/225 K) |
|---|---|
| Steering | ZF Gemmer steering, type GD 38, organically installed in the clutch housing |
| Top speed | 12.4–18.3 mph · 20.0–29.5 km/h |
Source · Traktorenlexikon, “Fendt Farmer 2 D”
How much does a Farmer 2D weigh?
A Farmer 2D weighs 3,968 lb (1,800 kg) unladen.
| Unladen weight | 3,968 lb · 1,800 kg |
|---|---|
| Maximum permissible mass | 5,732 lb · 2,600 kg |
| Wheelbase | 77.5 in · 1,968 mm |
| Length | 128.5 in · 3,264 mm |
| Width | 61.5 in · 1,562 mm |
| Height | 59.3 in · 1,507 mm |
| Ground clearance | 15.9 in · 405 mm |
| Front track | 49.2–59.1 in · 1,250–1,500 mm |
| Rear track | 49.2–59.1 in · 1,250–1,500 mm |
| Turning radius, braked | 11.0 ft · 3.36 m |
Source · Traktorenlexikon, “Fendt Farmer 2 D”
What oil does a Farmer 2D take, and how much?
A Farmer 2D engine takes 10.0 qt (9.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 10.0 qt · 9.5 LSource: Traktorenlexikon, “Fendt Farmer 2 D” · single source, not independently verified |
| Transmission | 0.8 qt · 1 LSource: Traktorenlexikon, “Fendt Farmer 2 D” · single source, not independently verified |
| Hydraulic | 3.2 qt · 3 LSource: Traktorenlexikon, “Fendt Farmer 2 D” · single source, not independently verified |
| Final drives | 2.0 qt · 1.9 LSource: Traktorenlexikon, “Fendt Farmer 2 D” · single source, not independently verified |
| Cooling system | 13.2 qt · 12.5 LSource: Traktorenlexikon, “Fendt Farmer 2 D” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a Farmer 2D?
Within 10% of its 27.5 hp of claimed engine power, the same type, and first built within 15 years of it.
- MAN 2N127.5 hp engine, claimed · 1961–1962Side by side with the Farmer 2D →
- Hermann Lanz D 3027.5 hp engine, claimed · 1956–1960Side by side with the Farmer 2D →
- Hermann Lanz D 28 (TD)27.5 hp engine, claimed · 1948–1952Side by side with the Farmer 2D →
- Kramer K 2827.5 hp engine, claimed · 1947–1950Side by side with the Farmer 2D →
- URSUS C-32827.6 hp engine, claimed · 1963–1968Side by side with the Farmer 2D →
- Renault 5327.6 hp engine, claimed · 1967–1973Side by side with the Farmer 2D →
Common questions about the Fendt Farmer 2D
Is a Farmer 2D two-wheel drive or four-wheel drive?
The Fendt Farmer 2D is two-wheel drive (2WD).
What PTO does a Farmer 2D have?
A Farmer 2D has a 553/1106 rpm rear PTO on a Splined shaft profile according to DIN 9611 shaft.
