- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1972–1980
- 13,500 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
The source says so, in a sentence about this machine. How we decide what a machine is

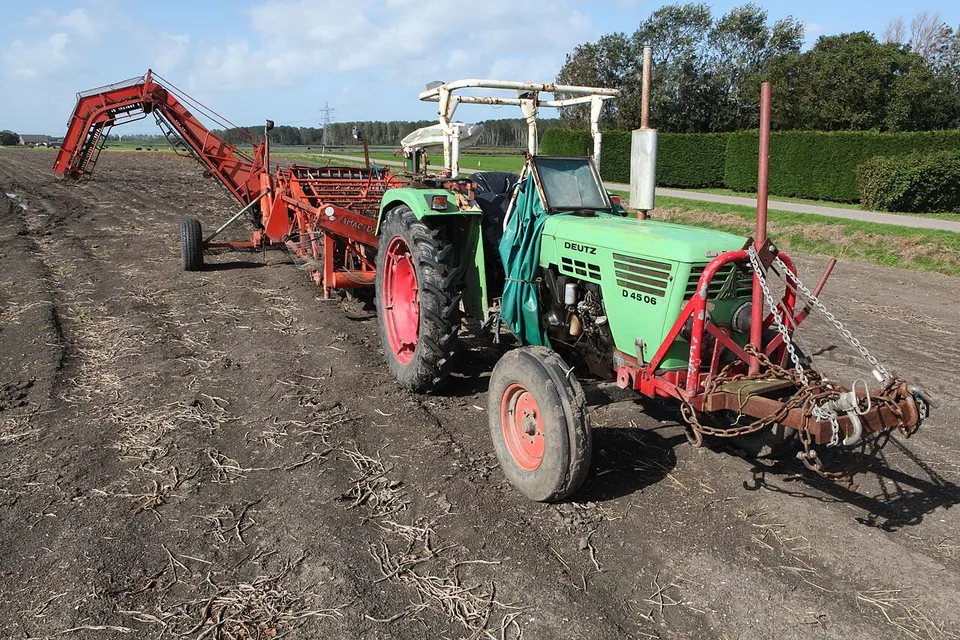

Deutz D 4506 specs: hp, weight, years
KHD F3L 912 three-cylinder diesel. The manufacturer claimed 39.3 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
39.3 hp
29.3 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz D 4506”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 4,233 lb
- 3-point lift
- 3,439 lb
- Hyd. flow
- 7.2 gpm
- Top speed
- 12.4 mph
Deutz D 4506 specs: key facts
The Deutz D 4506 was built from 1972 to 1980.
The Deutz D 4506 has a claimed engine power (gross or net not stated) of 29.3 kW (39.3 hp); it has no measured PTO figure.
The Deutz D 4506 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz D 4506 has a KHD F3L 912 engine, a 3-cylinder 2.83 L diesel unit.Source 1
The Deutz D 4506 weighs 1,920 kg (4,233 lb) unladen.
The Deutz D 4506 has a rear PTO running at 540 rpm.
The three-point hitch of the Deutz D 4506 lifts 1,560 kg (3,439 lb) at the lower-link ends.
The hydraulic pump of the Deutz D 4506 delivers 27.2 L/min (7.2 gpm).
Source · Traktorenlexikon, “Deutz D 4506”
How does the Deutz D 4506 compare with its class?
- Strength:
A 70 L fuel tank is high for its class — 40% above the median of 50 L across the 167 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 182 comparable records. How we work this out
How much horsepower does a Deutz D 4506 have?
The only figure for the Deutz D 4506 is 39.3 hp (29.3 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz D 4506”
What engine is in a Deutz D 4506?
A Deutz D 4506 has a KHD F3L 912, a 3-cylinder 2.83 L diesel engine.
| Make & model | KHD F3L 912Source 1 |
|---|---|
| Cylinders | 3, air-cooledSource 1 |
| Displacement | 172.5 ci · 2.83 LSource 1 |
| Max torque | 95 lb·ft · 129 N·m @ 1,600 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Deutz D 4506”
How much will a Deutz D 4506 lift, and what is its hydraulic flow?
A Deutz D 4506 lifts 3,439 lb (1,560 kg) at the lower-link ends.
| Pump flow | 7.2 gpm · 27.2 L/min |
|---|---|
| Pressure | 2,538 psi · 175 bar |
| Lift at ends | 3,439 lb · 1,560 kg |
| Rear PTO | 540 rpm @ 2,077 engine rpm |
| PTO shaft | 29 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Deutz D 4506”
What transmission does a Deutz D 4506 have?
Transmission specifications for the Deutz D 4506 are below.
| Clutch | Pedal operated dry double clutch with independent PTO clutch |
|---|---|
| Steering | Mechanical ZF Gemmer steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Deutz D 4506”
How much does a Deutz D 4506 weigh?
A Deutz D 4506 weighs 4,233 lb (1,920 kg) unladen.
| Unladen weight | 4,233 lb · 1,920 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 7,716 lb · 3,500 kg |
| Maximum front axle load | 3,417 lb · 1,550 kg |
| Maximum rear axle load | 5,732 lb · 2,600 kg |
| Wheelbase | 78.7 in · 2,000 mm |
| Length | 136.6 in · 3,470 mm |
| Width | 66.9 in · 1,700 mm |
| Height | 65.7 in · 1,670 mm |
| Ground clearance | 16.9 in · 430 mm |
| Front track | 49.6–55.9 in · 1,260–1,420 mmtwo-wheel-drive version |
| Rear track | 49.2–59.4 in · 1,250–1,510 mm |
| Turning radius, braked | 10.5 ft · 3.19 m |
Source · Traktorenlexikon, “Deutz D 4506”
What oil does a Deutz D 4506 take, and how much?
A Deutz D 4506 engine takes 9.0 qt (8.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.0 qt · 8.5 LSource: Traktorenlexikon, “Deutz D 4506” · single source, not independently verified |
| Transmission | 1.7 qt · 2 LSource: Traktorenlexikon, “Deutz D 4506” · single source, not independently verified |
| Hydraulic | 2.1 qt · 2 LSource: Traktorenlexikon, “Deutz D 4506” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a Deutz D 4506?
Within 10% of its 39.3 hp of claimed engine power, the same type, and first built within 15 years of it.
- Fendt Farmer 10239.3 hp engine, claimed · 1972–1974Side by side with the Deutz D 4506 →
- Ford 2000 Dexta (A)39.3 hp engine, claimed · 1968–1975Side by side with the Deutz D 4506 →
- Deutz D 450539.3 hp engine, claimed · 1965–1967Side by side with the Deutz D 4506 →
- Porsche-Diesel Super L 31839.3 hp engine, claimed · 1960–1961Side by side with the Deutz D 4506 →
- Fendt 240S39.3 hp engine, claimed · 1987–1993Side by side with the Deutz D 4506 →
- Renault Super 639.4 hp engine, claimed · 1964–1965Side by side with the Deutz D 4506 →
Common questions about the Deutz D 4506
Is a Deutz D 4506 two-wheel drive or four-wheel drive?
The Deutz D 4506 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a Deutz D 4506 have?
A Deutz D 4506 has a 540 rpm rear PTO on a 29 x 34,9 x 8,7 mm shaft.
