- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1958–1959
- 504 built
WhichTractor size, not the maker’s category
The source says so, in a sentence about this machine. How we decide what a machine is

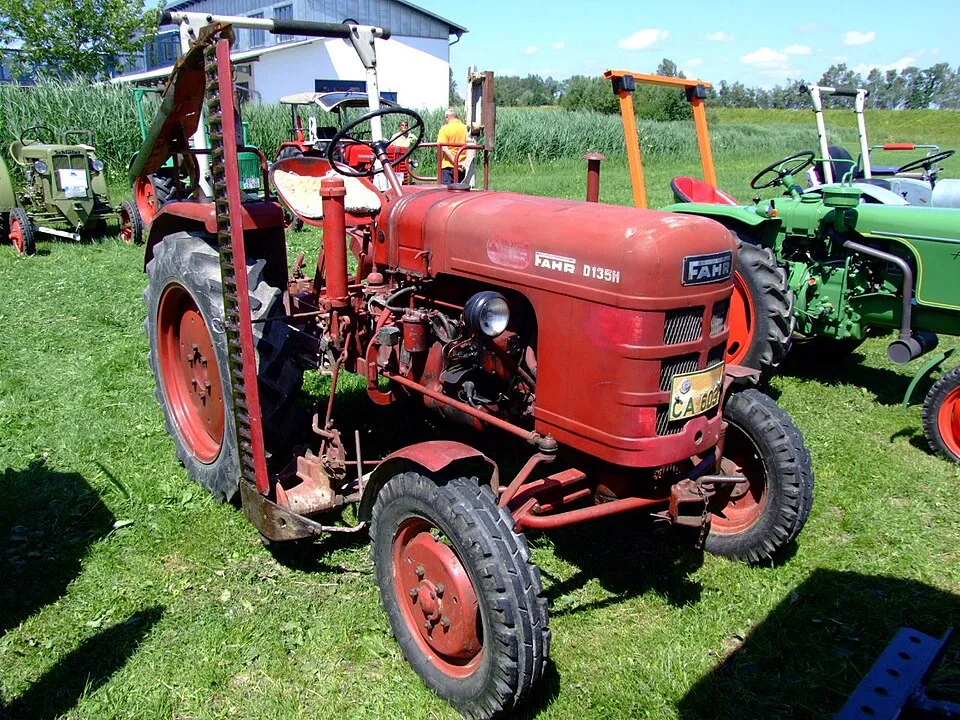

Fahr D 135H specs: hp, weight, years
Güldner 2 DNSF two-cylinder diesel. The manufacturer claimed 17.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
17.7 hp
13.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fahr D 135 H”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,734 lb
- 3-point lift
- 2,425 lb
- Top speed
- 12.4 mph
Fahr D 135H specs: key facts
The Fahr D 135H was built from 1958 to 1959.
The Fahr D 135H has a claimed engine power (gross or net not stated) of 13.2 kW (17.7 hp); it has no measured PTO figure.
The Fahr D 135H is two-wheel drive (2WD).
The Fahr D 135H has a Güldner 2 DNSF engine, a 2-cylinder 1.31 L diesel unit.Source 1
The Fahr D 135H weighs 1,240 kg (2,734 lb) unladen.
The Fahr D 135H has a dependent rear PTO running at 525 rpm.
The three-point hitch of the Fahr D 135H lifts 1,100 kg (2,425 lb) at the lower-link ends.
Source · Traktorenlexikon, “Fahr D 135 H”
How much horsepower does a D 135H have?
The only figure for the D 135H is 17.7 hp (13.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fahr D 135 H”
What engine is in a D 135H?
A D 135H has a Güldner 2 DNSF, a 2-cylinder 1.31 L diesel engine.
| Make & model | Güldner 2 DNSF |
|---|---|
| Cylinders | 2, liquid-cooledSource 2 |
| Displacement | 79.6 ci · 1.31 L |
| Max torque | 49 lb·ft · 67 N·m @ 1,700 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Fahr D 135”
How much will a D 135H lift?
A D 135H lifts 2,425 lb (1,100 kg) at the lower-link ends.
| Pressure | 3,129 psi · 216 bar |
|---|---|
| Lift at ends | 2,425 lb · 1,100 kg |
| Rear PTO | Dependent, transmission-driven, 525 rpm |
| PTO shaft | 29 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Fahr D 135 H”
What transmission does a D 135H have?
Transmission specifications for the D 135H are below.
| Clutch | Pedal operated dry Fichtel & Sachs single-plate clutch |
|---|---|
| Brakes | Pedal operated combined hand and foot brake as internal expanding brake |
| Steering | ZF steering, type EL 10 609 |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Fahr D 135 H”
How much does a D 135H weigh?
A D 135H weighs 2,734 lb (1,240 kg) unladen.
| Unladen weight | 2,734 lb · 1,240 kg |
|---|---|
| Maximum permissible mass | 4,409 lb · 2,000 kg |
| Maximum front axle load | 1,984 lb · 900 kg |
| Maximum rear axle load | 2,425 lb · 1,100 kg |
| Wheelbase | 66.4 in · 1,687 mm |
| Length | 106.4 in · 2,702 mm |
| Width | 57.5 in · 1,460 mm |
| Height | 64.2 in · 1,630 mm |
| Ground clearance | 18.3 in · 465 mm |
| Front track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Rear track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Turning radius, braked | 7.7 ft · 2.35 m |
Source · Traktorenlexikon, “Fahr D 135 H”
What oil does a D 135H take, and how much?
A D 135H engine takes 5.3 qt (5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 5.3 qt · 5 LSource: Traktorenlexikon, “Fahr D 135 H” · single source, not independently verified |
| Transmission | 0.3 qt · 0 LSource: Traktorenlexikon, “Fahr D 135 H” · single source, not independently verified |
| Hydraulic | 6.3 qt · 6 LSource: Traktorenlexikon, “Fahr D 135 H” · single source, not independently verified |
| Cooling system | 10.6 qt · 10 LSource: Traktorenlexikon, “Fahr D 135 H” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a D 135H?
Within 10% of its 17 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- BOLINDER-MUNKTELL 425 Terrier16.8 hp PTO, claimed · 1957–1962Side by side with the D 135H →
- Fahr D 130 AH17 hp PTO, claimed · 1957–1959Side by side with the D 135H →
- Fahr D 130A17 hp PTO, claimed · 1957–1959Side by side with the D 135H →
- Volvo T-425 Krabat16.8 hp PTO, claimed · 1957–1962Side by side with the D 135H →
- Kramer KA 1717 hp PTO, claimed · 1956Side by side with the D 135H →
- Fahr D 13017 hp PTO, claimed · 1954–1957Side by side with the D 135H →
Common questions about the Fahr D 135H
Is a D 135H two-wheel drive or four-wheel drive?
The Fahr D 135H is two-wheel drive (2WD).
What PTO does a D 135H have?
A D 135H has a dependent 525 rpm rear PTO on a 29 x 34,9 x 8,7 mm shaft.
