- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1958–1959
- 443 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

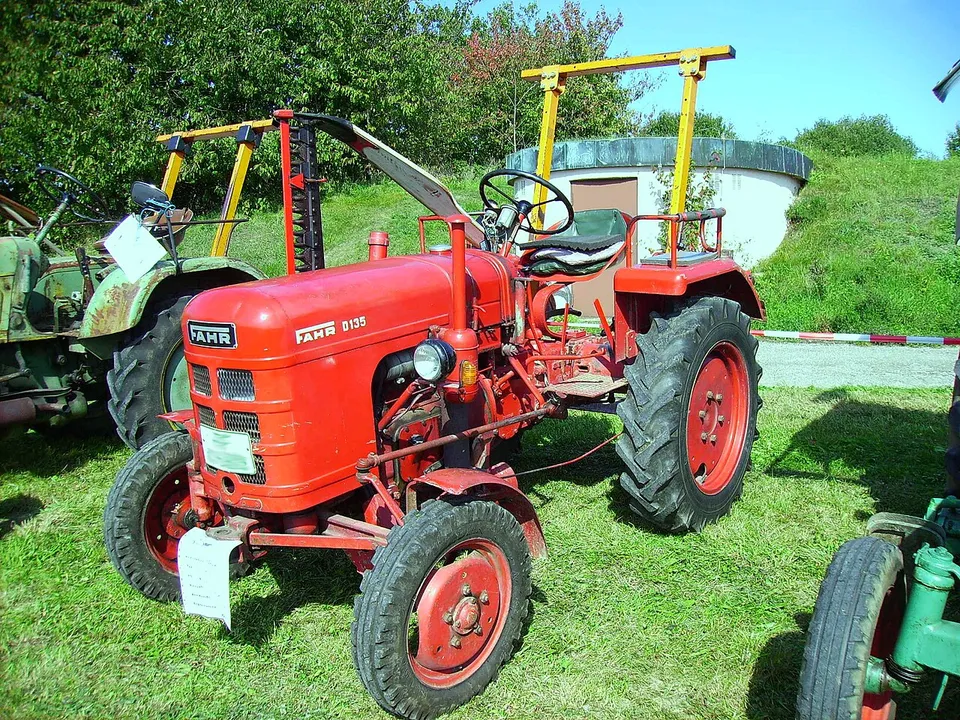

Fahr D 135 specs: hp, weight, years
Güldner 2 DNSF two-cylinder diesel. The manufacturer claimed 17.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
17.7 hp
13.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fahr D 135”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,557 lb
- 3-point lift
- 2,425 lb
- Top speed
- 11.8 mph
Fahr D 135 specs: key facts
The Fahr D 135 was built from 1958 to 1959.
The Fahr D 135 has a claimed engine power (gross or net not stated) of 13.2 kW (17.7 hp); it has no measured PTO figure.
The Fahr D 135 is two-wheel drive (2WD).
The Fahr D 135 has a Güldner 2 DNSF engine, a 2-cylinder 1.31 L diesel unit.
The Fahr D 135 weighs 1,160 kg (2,557 lb) unladen.
The Fahr D 135 has a dependent rear PTO running at 525 rpm.
The three-point hitch of the Fahr D 135 lifts 1,100 kg (2,425 lb) at the lower-link ends.
Source · Traktorenlexikon, “Fahr D 135”
How much horsepower does a D 135 have?
The only figure for the D 135 is 17.7 hp (13.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fahr D 135”
What engine is in a D 135?
A D 135 has a Güldner 2 DNSF, a 2-cylinder 1.31 L diesel engine.
| Make & model | Güldner 2 DNSF |
|---|---|
| Cylinders | 2, liquid-cooled |
| Displacement | 79.6 ci · 1.31 L |
| Max torque | 49 lb·ft · 67 N·m @ 1,700 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fahr D 135”
How much will a D 135 lift?
A D 135 lifts 2,425 lb (1,100 kg) at the lower-link ends.
| Pressure | 3,129 psi · 216 bar |
|---|---|
| Lift at ends | 2,425 lb · 1,100 kg |
| Rear PTO | Dependent, transmission-driven, 525 rpm |
| PTO shaft | 29 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Fahr D 135”
What transmission does a D 135 have?
Transmission specifications for the D 135 are below.
| Clutch | Pedal operated dry Fichtel & Sachs single disc clutch |
|---|---|
| Steering | ZF steering |
| Top speed | 11.8 mph · 19 km/h |
Source · Traktorenlexikon, “Fahr D 135”
How much does a D 135 weigh?
A D 135 weighs 2,557 lb (1,160 kg) unladen.
| Unladen weight | 2,557 lb · 1,160 kg |
|---|---|
| Maximum permissible mass | 3,660 lb · 1,660 kg |
| Maximum front axle load | 1,543 lb · 700 kg |
| Maximum rear axle load | 2,116 lb · 960 kg |
| Wheelbase | 66.6 in · 1,692 mm |
| Length | 104.7 in · 2,660 mm |
| Width | 57.5 in · 1,460 mm |
| Height | 61.4 in · 1,560 mm |
| Ground clearance | 14.3 in · 364 mm |
| Front track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Rear track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Turning radius, braked | 7.7 ft · 2.35 m |
Source · Traktorenlexikon, “Fahr D 135”
What oil does a D 135 take, and how much?
A D 135 engine takes 5.3 qt (5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 5.3 qt · 5 LSource: Traktorenlexikon, “Fahr D 135” · single source, not independently verified |
| Transmission | 0.3 qt · 0 LSource: Traktorenlexikon, “Fahr D 135” · single source, not independently verified |
| Hydraulic | 6.3 qt · 6 LSource: Traktorenlexikon, “Fahr D 135” · single source, not independently verified |
| Cooling system | 10.6 qt · 10 LSource: Traktorenlexikon, “Fahr D 135” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a D 135?
Within 10% of its 18 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Fahr D 131L18 hp PTO, claimed · 1959–1960Side by side with the D 135 →
- Fahr D 131W18 hp PTO, claimed · 1959–1960Side by side with the D 135 →
- MAN 4K118 hp PTO, claimed · 1959–1961Side by side with the D 135 →
- Fahr D 132L18 hp PTO, claimed · 1960–1961Side by side with the D 135 →
- Fahr D 132W18 hp PTO, claimed · 1960–1961Side by side with the D 135 →
- Kramer KB 18018 hp PTO, claimed · 1956–1959Side by side with the D 135 →
Common questions about the Fahr D 135
Is a D 135 two-wheel drive or four-wheel drive?
The Fahr D 135 is two-wheel drive (2WD).
What PTO does a D 135 have?
A D 135 has a dependent 525 rpm rear PTO on a 29 x 34,9 x 8,7 mm shaft.
