- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1957–1959
- 1,244 built
WhichTractor size, not the maker’s category
The source says so, in a sentence about this machine. How we decide what a machine is

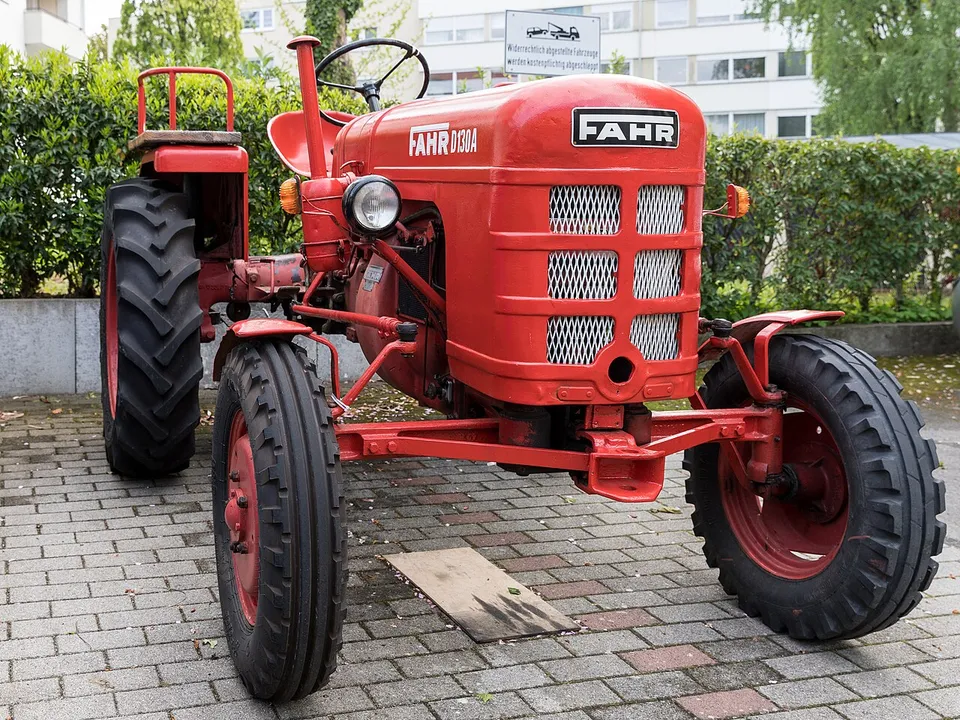

Fahr D 130A specs: hp, weight, years
Güldner 2 LD two-cylinder diesel. The manufacturer claimed 16.8 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
16.8 hp
12.5 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fahr D 130 A”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,513 lb
- Top speed
- 11.6 mph
Fahr D 130A specs: key facts
The Fahr D 130A was built from 1957 to 1959.
The Fahr D 130A has a claimed engine power (gross or net not stated) of 12.5 kW (16.8 hp); it has no measured PTO figure.
The Fahr D 130A is two-wheel drive (2WD).
The Fahr D 130A has a Güldner 2 LD engine, a 2-cylinder 1.31 L diesel unit.Source 2
The Fahr D 130A weighs 1,140 kg (2,513 lb) unladen.
The Fahr D 130A has a rear PTO running at 538 rpm.
Source · Traktorenlexikon, “Fahr D 130 A”
How much horsepower does a D 130A have?
The only figure for the D 130A is 16.8 hp (12.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fahr D 130 A”
What engine is in a D 130A?
A D 130A has a Güldner 2 LD, a 2-cylinder 1.31 L diesel engine.
| Make & model | Güldner 2 LDSource 2 |
|---|---|
| Cylinders | 2, air-cooledSource 2 |
| Displacement | 79.6 ci · 1.31 LSource 2 |
| Max torque | 48 lb·ft · 65 N·m @ 1,700 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fahr D 130 A”
How much will a D 130A lift?
Hydraulic and PTO specifications for the D 130A are below.
| Pressure | 3,129 psi · 216 bar |
|---|---|
| Rear PTO | 538 rpm |
Source · Traktorenlexikon, “Fahr D 130 A”
What transmission does a D 130A have?
Transmission specifications for the D 130A are below.
| Steering | ZF steering |
|---|---|
| Top speed | 11.6 mph · 18.7 km/h |
Source · Traktorenlexikon, “Fahr D 130 A”
How much does a D 130A weigh?
A D 130A weighs 2,513 lb (1,140 kg) unladen.
| Unladen weight | 2,513 lb · 1,140 kg |
|---|---|
| Maximum permissible mass | 3,748 lb · 1,700 kg |
| Maximum front axle load | 1,543 lb · 700 kg |
| Maximum rear axle load | 2,205 lb · 1,000 kg |
| Wheelbase | 68.4 in · 1,737 mm |
| Length | 107.4 in · 2,727 mm |
| Width | 57.5 in · 1,460 mm |
| Height | 60.6 in · 1,540 mm |
| Ground clearance | 15.4 in · 390 mm |
| Front track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Rear track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles; the article lists alternatives |
| Turning radius, braked | 7.7 ft · 2.35 m |
Source · Traktorenlexikon, “Fahr D 130 A”
What oil does a D 130A take, and how much?
A D 130A engine takes 5.1 qt (4.8 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 5.1 qt · 4.8 LSource: Traktorenlexikon, “Fahr D 130 A” · single source, not independently verified |
| Transmission | 0.3 qt · 0 LSource: Traktorenlexikon, “Fahr D 130 A” · single source, not independently verified |
| Hydraulic | 11.6 qt · 11 LSource: Traktorenlexikon, “Fahr D 130 A” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a D 130A?
Within 10% of its 17 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- BOLINDER-MUNKTELL 425 Terrier16.8 hp PTO, claimed · 1957–1962Side by side with the D 130A →
- Fahr D 130 AH17 hp PTO, claimed · 1957–1959Side by side with the D 130A →
- Volvo T-425 Krabat16.8 hp PTO, claimed · 1957–1962Side by side with the D 130A →
- Fahr D 135H17 hp PTO, claimed · 1958–1959Side by side with the D 130A →
- Kramer KA 1717 hp PTO, claimed · 1956Side by side with the D 130A →
- Fahr D 130H17 hp PTO, claimed · 1954–1957Side by side with the D 130A →
Common questions about the Fahr D 130A
Is a D 130A two-wheel drive or four-wheel drive?
The Fahr D 130A is two-wheel drive (2WD).
What PTO does a D 130A have?
A D 130A has a 538 rpm rear PTO.
