- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1985–1988
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

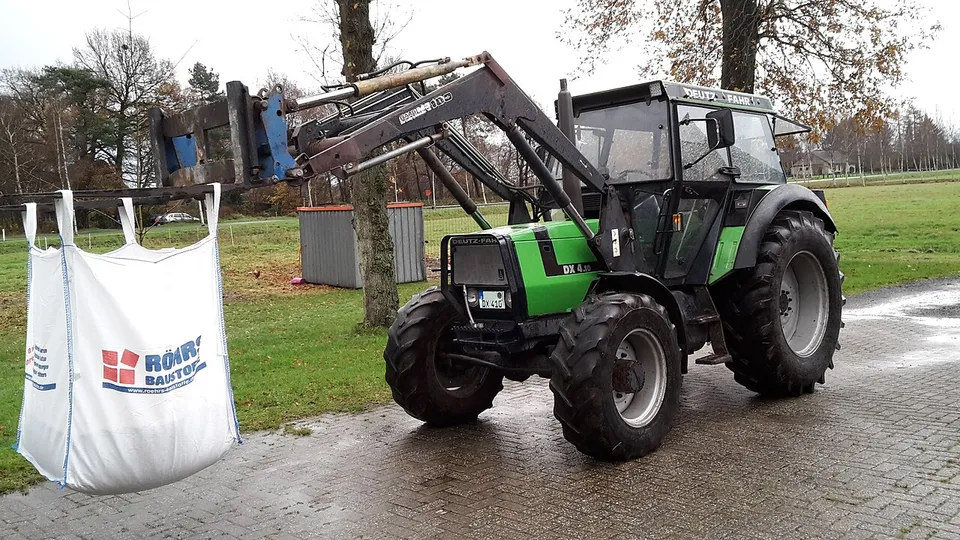

Deutz-Fahr DX 4.10 specs: hp, weight, years
KHD F4L 912 four-cylinder diesel. The manufacturer claimed 69.1 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
69.1 hp
51.5 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz-Fahr DX 4.10”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 8,642 lb
- 3-point lift
- 8,378 lb
- Hyd. flow
- 10.6 gpm
- Top speed
- 18.6–24.9 mph
Deutz-Fahr DX 4.10 specs: key facts
The Deutz-Fahr DX 4.10 was built from 1985 to 1988.
The Deutz-Fahr DX 4.10 has a claimed engine power (gross or net not stated) of 51.5 kW (69.1 hp); it has no measured PTO figure.
The Deutz-Fahr DX 4.10 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz-Fahr DX 4.10 has a KHD F4L 912 engine, a 4-cylinder 3.77 L diesel unit.Source 1
The Deutz-Fahr DX 4.10 weighs 3,920 kg (8,642 lb) unladen.
The Deutz-Fahr DX 4.10 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Deutz-Fahr DX 4.10 lifts 3,800 kg (8,378 lb) at the lower-link ends.
The hydraulic pump of the Deutz-Fahr DX 4.10 delivers 40.0 L/min (10.6 gpm).
Source · Traktorenlexikon, “Deutz-Fahr DX 4.10”
How does the DX 4.10 compare with its class?
- Strength:
A 125 L fuel tank is high for its class — 51% above the median of 83 L across the 364 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 3,920 kg is high for its class — 34% above the median of 2,930 kg across the 393 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 393 comparable records. How we work this out
How much horsepower does a DX 4.10 have?
The only figure for the DX 4.10 is 69.1 hp (51.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz-Fahr DX 4.10”
What engine is in a DX 4.10?
A DX 4.10 has a KHD F4L 912, a 4-cylinder 3.77 L diesel engine.
| Make & model | KHD F4L 912 |
|---|---|
| Cylinders | 4, air-cooledSource 2 |
| Displacement | 229.9 ci · 3.77 L |
| Max torque | 175 lb·ft · 237 N·m @ 1,600 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Deutz D 6006”
How much will a DX 4.10 lift, and what is its hydraulic flow?
A DX 4.10 lifts 8,378 lb (3,800 kg) at the lower-link ends.
| Pump flow | 10.6 gpm · 40.0 L/min |
|---|---|
| Pressure | 3,481 psi · 240 bar |
| Lift at ends | 8,378 lb · 3,800 kg |
| Rear PTO | Independent, 540/1000 rpmEngages under load |
| PTO shaft | 1 3/8"-6 splines |
Source · Traktorenlexikon, “Deutz-Fahr DX 4.10”
What transmission does a DX 4.10 have?
Transmission specifications for the DX 4.10 are below.
| Brakes | Hydraulically operated double drum brake acting on rear wheels via intermediate shaft |
|---|---|
| Steering | Hydrostatic DANFOSS steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Deutz-Fahr DX 4.10”
How much does a DX 4.10 weigh?
A DX 4.10 weighs 8,642 lb (3,920 kg) unladen.
| Unladen weight | 8,642 lb · 3,920 kg |
|---|---|
| Maximum front axle load | 5,071 lb · 2,300 kg |
| Wheelbase | 94.5 in · 2,400 mm |
| Length | 163.0 in · 4,140 mm |
| Width | 90.6 in · 2,300 mm |
| Height | 103.0 in · 2,615 mm |
| Ground clearance | 16.7 in · 425 mm |
| Front track | 63.0–70.9 in · 1,600–1,800 mm |
| Rear track | 65.0 in · 1,650 mm |
| Turning radius, braked | 13.7 ft · 4.17 m |
Source · Traktorenlexikon, “Deutz-Fahr DX 4.10”
What oil does a DX 4.10 take, and how much?
A DX 4.10 engine takes 11.6 qt (11 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11 LSource: Traktorenlexikon, “Deutz-Fahr DX 4.10” · single source, not independently verified |
| Transmission | 46.5 qt · 44 LSource: Traktorenlexikon, “Deutz-Fahr DX 4.10” · single source, not independently verified |
| Cooling system | 1,479.4 qt · 1,400 LSource: Traktorenlexikon, “Deutz-Fahr DX 4.10” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a DX 4.10?
Within 10% of its 69.1 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault 75-12 LS69.1 hp engine, claimed · 1985–1989Side by side with the DX 4.10 →
- Deutz-Fahr DX 3.7069.1 hp engine, claimed · 1984–1989Side by side with the DX 4.10 →
- Fiat 70-66 (DT)69.1 hp engine, claimed · 1984–1991Side by side with the DX 4.10 →
- Fiat 70-66 F (DT/F)69.1 hp engine, claimed · 1984–1991Side by side with the DX 4.10 →
- Fiat 70-90 (DT)69.1 hp engine, claimed · 1984–1992Side by side with the DX 4.10 →
- SAME Explorer 70 (DT)69.1 hp engine, claimed · 1986–1990Side by side with the DX 4.10 →
Common questions about the Deutz-Fahr DX 4.10
Is a DX 4.10 two-wheel drive or four-wheel drive?
The Deutz-Fahr DX 4.10 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a DX 4.10 have?
A DX 4.10 has a independent 540/1000 rpm rear PTO on a 1 3/8"-6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz D 6006”; and Traktorenlexikon, “Deutz-Fahr DX 4.10”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Deutz D 6006 — CC BY-SA 4.0, WIKIBOOKS-TL-51755 · revision 1024090. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Deutz-Fahr DX 4.10 — CC BY-SA 4.0, WIKIBOOKS-TL-88413 · revision 990216. Wikibooks contributors (Traktorenlexikon). Original document
