- WhichTractor size: Utility
- No lab test on file
- 1984–1992
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

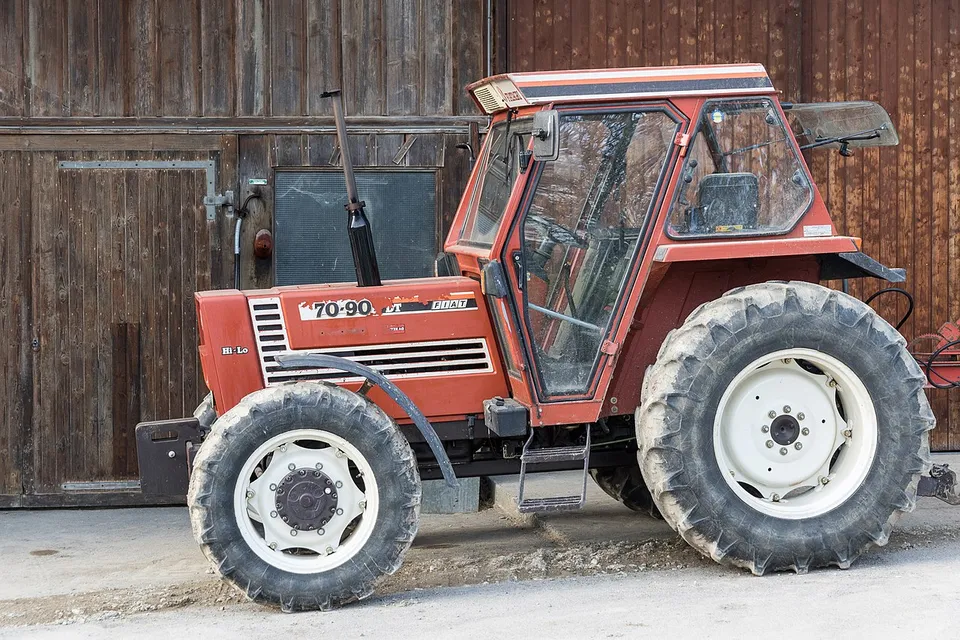

Fiat 70-90 (DT) specs: hp, weight, years
FIAT-IVECO 8045.06.200 or 300 four-cylinder diesel. The manufacturer claimed 69.1 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
69.1 hp
51.5 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 6,702 lb
- Hyd. flow
- 9.4 gpm
- Top speed
- 18.6–24.9 mph
Fiat 70-90 (DT) specs: key facts
The Fiat 70-90 (DT) was built from 1984 to 1992.
The Fiat 70-90 (DT) has a claimed engine power (gross or net not stated) of 51.5 kW (69.1 hp); it has no measured PTO figure.
The Fiat 70-90 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
The Fiat 70-90 (DT) has a FIAT-IVECO 8045.06.200 or 300 engine, a 4-cylinder 3.61 L diesel unit.
The Fiat 70-90 (DT) weighs 3,040 kg (6,702 lb) unladen.
The Fiat 70-90 (DT) has a rear PTO running at 540/1000 rpm.
The hydraulic pump of the Fiat 70-90 (DT) delivers 35.5 L/min (9.4 gpm).
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”
How much horsepower does a 70-90 (DT) have?
The only figure for the 70-90 (DT) is 69.1 hp (51.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”
What engine is in a 70-90 (DT)?
A 70-90 (DT) has a FIAT-IVECO 8045.06.200 or 300, a 4-cylinder 3.61 L diesel engine.
| Make & model | FIAT-IVECO 8045.06.200 or 300 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 220.5 ci · 3.61 L |
| Max torque | 168 lb·ft · 228 N·m @ 1,350 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”
How much will a 70-90 (DT) lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the 70-90 (DT) are below.
| Pump flow | 9.4 gpm · 35.5 L/min |
|---|---|
| Pressure | 3,046–3,118 psi · 210–215 bar |
| Rear PTO | 540/1000 rpm @ 2,198 engine rpm |
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”
What transmission does a 70-90 (DT) have?
Transmission specifications for the 70-90 (DT) are below.
| Clutch | Dry VALEO, O.M.G. or LuK double clutch |
|---|---|
| Brakes | Pedal operated hydraulic wet disc brake acting on differential half shafts |
| Steering | Hydrostatic DANFOSS steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”
How much does a 70-90 (DT) weigh?
A 70-90 (DT) weighs 6,702 lb (3,040 kg) unladen.
| Unladen weight | 6,702 lb · 3,040 kgDT: 3,330 |
|---|---|
| Maximum permissible mass | 11,684 lb · 5,300 kg |
| Wheelbase | 92.2 in · 2,342 mmDT: 2,314 |
| Length | 152.9 in · 3,884 mmDT: 4,024 |
| Width | 76.0–99.6 in · 1,930–2,530 mm |
| Height | 103.0 in · 2,615 mm |
| Ground clearance | 19.9 in · 505 mmDT: 430 |
| Front track | 55.1–74.8 in · 1,400–1,900 mmDT: 1,630-1,960 |
| Rear track | 55.1–82.7 in · 1,400–2,100 mm |
| Turning radius, braked | 11.4 ft · 3.48 mDT: 4,920 |
Source · Traktorenlexikon, “Fiatagri 70-90/70-90 DT”
What oil does a 70-90 (DT) take, and how much?
A 70-90 (DT) engine takes 12.4 qt (11.7 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 12.4 qt · 11.7 LSource: Traktorenlexikon, “Fiatagri 70-90/70-90 DT” · single source, not independently verified |
| Transmission & hydraulic | 57.5 qt · 54.4 LSource: Traktorenlexikon, “Fiatagri 70-90/70-90 DT” · single source, not independently verified |
| Cooling system | 14.8 qt · 14.0 LSource: Traktorenlexikon, “Fiatagri 70-90/70-90 DT” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 70-90 (DT)?
Within 10% of its 69.1 hp of claimed engine power, the same type, and first built within 15 years of it.
- Deutz-Fahr DX 3.7069.1 hp engine, claimed · 1984–1989Side by side with the 70-90 (DT) →
- Fiat 70-66 (DT)69.1 hp engine, claimed · 1984–1991Side by side with the 70-90 (DT) →
- Fiat 70-66 F (DT/F)69.1 hp engine, claimed · 1984–1991Side by side with the 70-90 (DT) →
- Deutz-Fahr DX 4.1069.1 hp engine, claimed · 1985–1988Side by side with the 70-90 (DT) →
- Renault 75-12 LS69.1 hp engine, claimed · 1985–1989Side by side with the 70-90 (DT) →
- SAME Explorer 70 (DT)69.1 hp engine, claimed · 1986–1990Side by side with the 70-90 (DT) →
Common questions about the Fiat 70-90 (DT)
Is a 70-90 (DT) two-wheel drive or four-wheel drive?
The Fiat 70-90 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 70-90 (DT) have?
A 70-90 (DT) has a 540/1000 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Fiatagri 70-90/70-90 DT”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Fiatagri 70-90/70-90 DT — CC BY-SA 4.0, WIKIBOOKS-TL-108738 · revision 1076906. Wikibooks contributors (Traktorenlexikon). Original document
