- Rigid chassis
- WhichTractor size: Compact
- No lab test on file
- 1984–1990
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

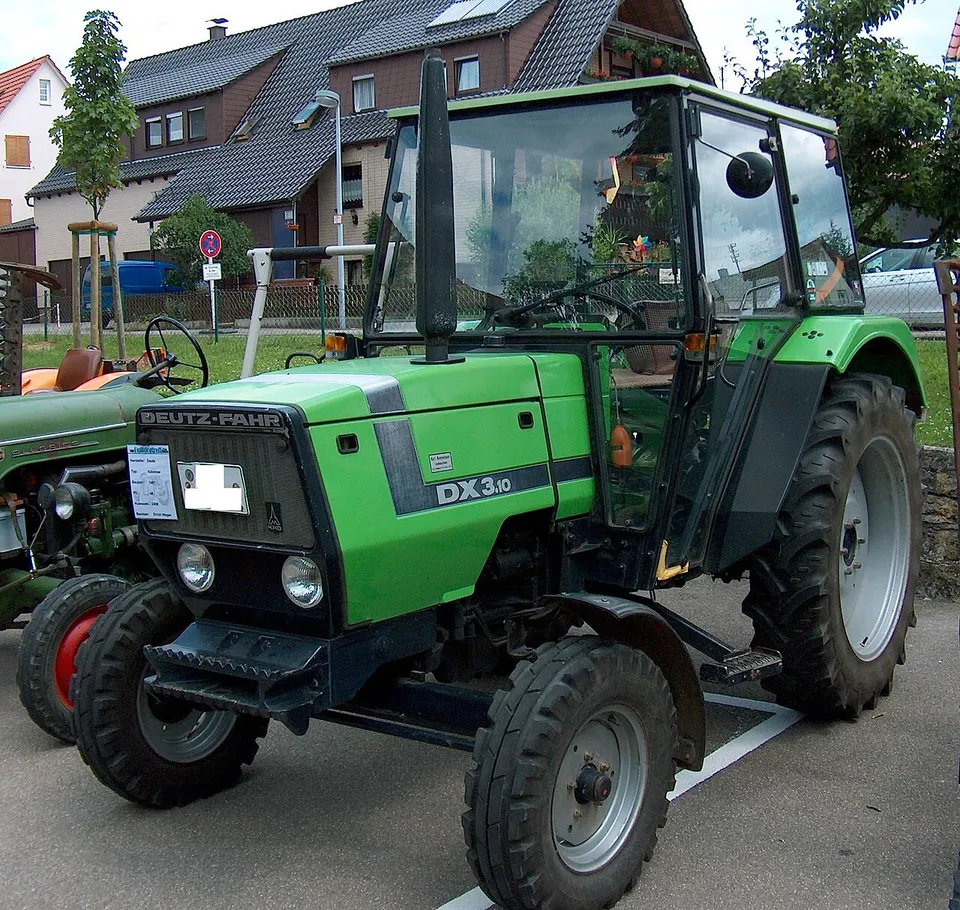

Deutz-Fahr DX 3.10 specs: hp, weight, years
KHD F3L 912 three-cylinder diesel. The manufacturer claimed 46 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
46 hp
34 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz-Fahr DX 3.10”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 5,600 lb
- 3-point lift
- 4,189 lb
- Hyd. flow
- 9.1 gpm
- Top speed
- 18.6 mph
Deutz-Fahr DX 3.10 specs: key facts
The Deutz-Fahr DX 3.10 was built from 1984 to 1990.
The Deutz-Fahr DX 3.10 has a claimed engine power (gross or net not stated) of 34 kW (46 hp); it has no measured PTO figure.
The Deutz-Fahr DX 3.10 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz-Fahr DX 3.10 has a KHD F3L 912 engine, a 3-cylinder 2.83 L diesel unit.Source 1
The Deutz-Fahr DX 3.10 weighs 2,540 kg (5,600 lb) unladen.
The Deutz-Fahr DX 3.10 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Deutz-Fahr DX 3.10 lifts 1,900 kg (4,189 lb) at the lower-link ends.
The hydraulic pump of the Deutz-Fahr DX 3.10 delivers 34.4 L/min (9.1 gpm).
Source · Traktorenlexikon, “Deutz-Fahr DX 3.10”
How does the DX 3.10 compare with its class?
- Strength:
A 83 L fuel tank is high for its class — 54% above the median of 54 L across the 283 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 315 comparable records. How we work this out
How much horsepower does a DX 3.10 have?
The only figure for the DX 3.10 is 46 hp (34 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz-Fahr DX 3.10”
What engine is in a DX 3.10?
A DX 3.10 has a KHD F3L 912, a 3-cylinder 2.83 L diesel engine.
| Make & model | KHD F3L 912 |
|---|---|
| Cylinders | 3, air-cooledSource 2 |
| Displacement | 172.5 ci · 2.83 L |
| Max torque | 123 lb·ft · 167 N·m @ 1,600 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Deutz D 4006 P”
How much will a DX 3.10 lift, and what is its hydraulic flow?
A DX 3.10 lifts 4,189 lb (1,900 kg) at the lower-link ends.
| System | Constant flow |
|---|---|
| Pump flow | 9.1 gpm · 34.4 L/min |
| Pressure | 3,481 psi · 240 bar |
| Lift at ends | 4,189 lb · 1,900 kg |
| Rear PTO | 540/1000 rpm @ 2,077 engine rpm |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.10”
What transmission does a DX 3.10 have?
Transmission specifications for the DX 3.10 are below.
| Clutch | Independent dry double clutch |
|---|---|
| Steering | Hydrostatic Danfoss steering |
| Top speed | 18.6 mph · 30 km/h |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.10”
How much does a DX 3.10 weigh?
A DX 3.10 weighs 5,600 lb (2,540 kg) unladen.
| Unladen weight | 5,600 lb · 2,540 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 8,818 lb · 4,000 kg |
| Maximum front axle load | 3,571 lb · 1,620 kg |
| Maximum rear axle load | 6,614 lb · 3,000 kg |
| Wheelbase | 79.2 in · 2,012 mmtwo-wheel-drive version |
| Length | 137.4 in · 3,490 mmtwo-wheel-drive version |
| Width | 70.4 in · 1,788 mm |
| Height | 91.1 in · 2,315 mm |
| Ground clearance | 16.1 in · 410 mmtwo-wheel-drive version |
| Front track | 59.1–63.0 in · 1,500–1,600 mmtwo-wheel-drive version |
| Rear track | 59.1–63.0 in · 1,500–1,600 mm |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.10”
What oil does a DX 3.10 take, and how much?
A DX 3.10 engine takes 9.5 qt (9.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.5 qt · 9.0 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.10” · single source, not independently verified |
| Transmission | 5.3 qt · 5.0 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.10” · single source, not independently verified |
| Hydraulic | 16.9 qt · 16 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.10” · single source, not independently verified |
| Front axle | 0.5 qt · 0.5 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.10” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a DX 3.10?
Within 10% of its 46 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault 461S45.5 hp engine, claimed · 1980–1987Side by side with the DX 3.10 →
- Renault 461 (S)45.5 hp engine, claimed · 1972–1987Side by side with the DX 3.10 →
- Case-IH 385 (DT)45.3 hp engine, claimed · 1985–1990Side by side with the DX 3.10 →
- Fiat 470 (V/DT)45.3 hp engine, claimed · 1980Side by side with the DX 3.10 →
- SOMECA 470 (TD)45.3 hp engine, claimed · 1980Side by side with the DX 3.10 →
- Deutz-Fahr DX 50V45.2 hp engine, claimed · 1978–1985Side by side with the DX 3.10 →
Common questions about the Deutz-Fahr DX 3.10
Is a DX 3.10 two-wheel drive or four-wheel drive?
The Deutz-Fahr DX 3.10 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a DX 3.10 have?
A DX 3.10 has a 540/1000 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz D 4006 P”; and Traktorenlexikon, “Deutz-Fahr DX 3.10”.
