  • Articulated
  • WhichTractor size: High-power
  • Not independently tested
  • 1990–1995

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Case-IH 9280 Full specifications

CUMMINS NTA-855 A six-cylinder diesel. The manufacturer claimed 374.8 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

374.8 hp

279.5 kW as stated by the source

Not independently tested

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Case-IH 9280”, claimed

Weight
34,674 lb
3-point lift
24,011 lb
Hyd. flow
30.3 gpm
Top speed
18.6 mph

Case-IH 9280 specs: key facts

  • The Case-IH 9280 was built from 1990 to 1995.

  • The Case-IH 9280 has a claimed engine power (gross or net not stated) of 279.5 kW (374.8 hp); it has no measured PTO figure.

  • The Case-IH 9280 is four-wheel drive (4WD).

  • The Case-IH 9280 has a CUMMINS NTA-855 A engine, a 6-cylinder 10.02 L diesel unit.Source 1

  • The Case-IH 9280 weighs 15,728 kg (34,674 lb) unladen.

  • The Case-IH 9280 has a rear PTO running at 1000 rpm.

  • The three-point hitch of the Case-IH 9280 lifts 10,891 kg (24,011 lb) at the lower-link ends.

  • The hydraulic pump of the Case-IH 9280 delivers 114.7 L/min (30.3 gpm).

Source · Traktorenlexikon, “Case-IH 9280”

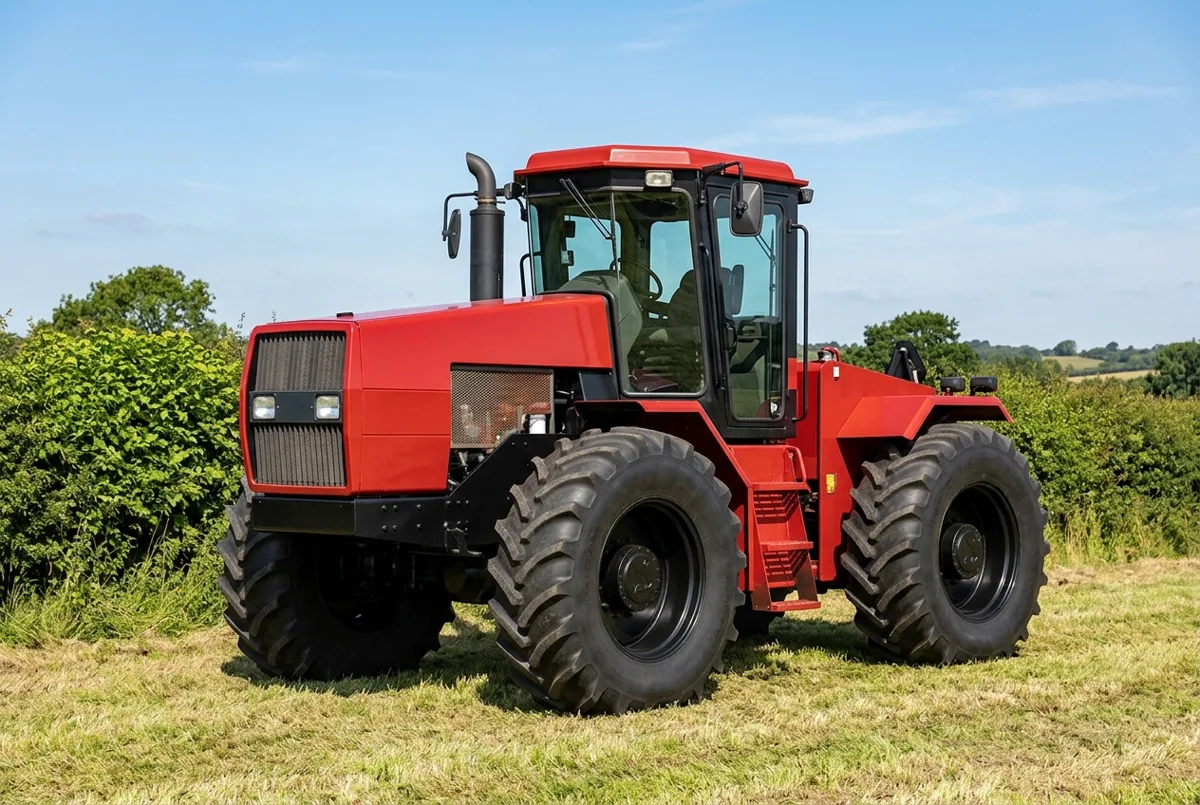

Illustration, not a photograph: Case-IH 9280, drawn from the specification record
Illustration — not a photograph

How much horsepower does a 9280 have?

The only figure for the 9280 is 374.8 hp (279.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
374.8 hp

Source · Traktorenlexikon, “Case-IH 9280”

What engine is in a 9280?

A 9280 has a CUMMINS NTA-855 A, a 6-cylinder 10.02 L diesel engine.

Engine — 9280 engine specifications
Make & modelCUMMINS NTA-855 A
Cylinders6, liquid-cooledSource 2
Displacement611.2 ci · 10.02 L
Max torque1,265 lb·ft · 1,715 N·m @ 1,400 rpmSource 2
InjectionDirect injectionSource 2

Source · Traktorenlexikon, “Case-IH 9270”

How much will a 9280 lift, and what is its hydraulic flow?

A 9280 lifts 24,011 lb (10,891 kg) at the lower-link ends.

Hydraulics & PTO — 9280 hydraulics and PTO specifications
Pump flow30.3 gpm · 114.7 L/min
Pressure2,306 psi · 159 bar
Lift at ends24,011 lb · 10,891 kg
Rear PTO1000 rpm
PTO shaft1 3/4"- 20 teilig

Source · Traktorenlexikon, “Case-IH 9280”

What transmission does a 9280 have?

Transmission specifications for the 9280 are below.

Transmission — 9280 transmission specifications
ClutchOil-immersed multi-plate driving clutch with disc diameter 228.6 mm
BrakesPedal-operated hydraulic dry Kelsey Hayes disc brake acting on front axle differential
SteeringHydrostatic Eaton steering with two integrated double-acting steering cylinders
Top speed18.6 mph · 30 km/h

Source · Traktorenlexikon, “Case-IH 9280”

How much does a 9280 weigh?

A 9280 weighs 34,674 lb (15,728 kg) unladen.

Weights & dimensions — 9280 weights and dimensions
Unladen weight34,674 lb · 15,728 kg
Wheelbase76.5–132.6 in · 1,943–3,368 mm
Length299.6 in · 7,610 mm
Width153.1 in · 3,890 mm
Height152.4 in · 3,870 mm
Ground clearance16.7 in · 424 mm
Front track141.5 in · 3,594 mmWikibooks gives one track for both axles
Rear track141.5 in · 3,594 mmWikibooks gives one track for both axles

Source · Traktorenlexikon, “Case-IH 9280”

Which tractors compare with a 9280?

Within 10% of its 344.0 hp at the PTO (claimed), the same type, and first built within 15 years of it.

Everything else people ask

Is a 9280 two-wheel drive or four-wheel drive?

The Case-IH 9280 is four-wheel drive (4WD).

What PTO does a 9280 have?

A 9280 has a 1000 rpm rear PTO on a 1 3/4"- 20 teilig shaft.

Where this page comes from

Compiled from Traktorenlexikon, “Case-IH 9270”; and Traktorenlexikon, “Case-IH 9280”.
