- Rigid chassis
- WhichTractor size: Compact
- Not independently tested
- 1983–1987
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

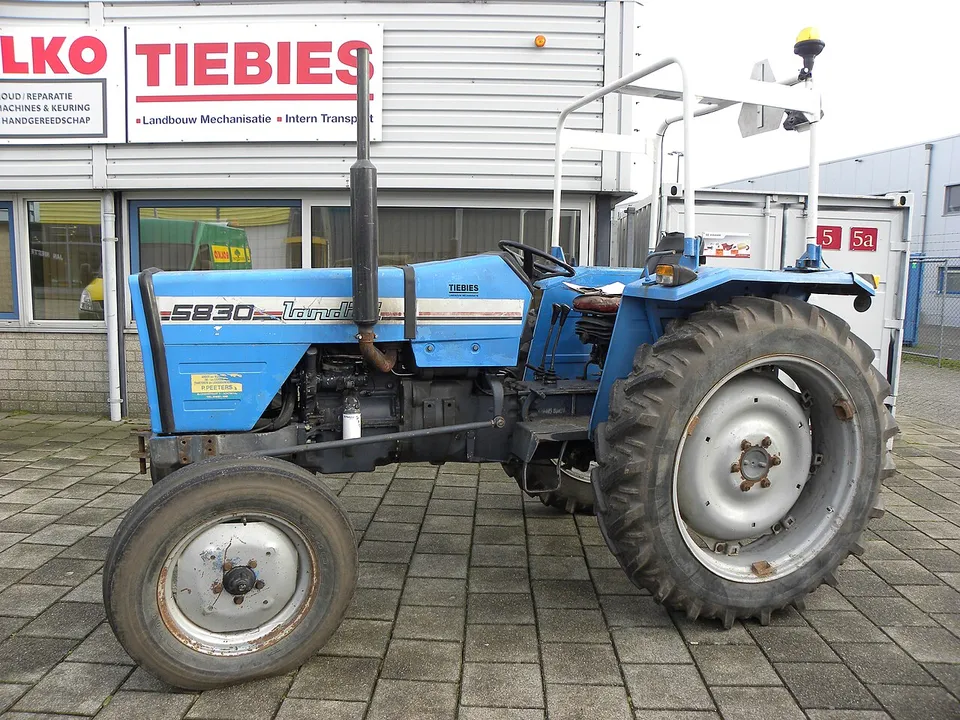

Landini 5830 (DT) TL-22 N/G (TL-DT/L) Full specifications
Perkins AD 3.152 S three-cylinder diesel. The manufacturer claimed 49.3 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
49.3 hp
36.8 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Landini 5830 (DT)”, claimed
- Weight
- 4,674 lb
- 3-point lift
- 4,519 lb
- Hyd. flow
- 9.5 gpm
- Top speed
- 18.6 mph
Landini 5830 (DT) TL-22 N/G (TL-DT/L) specs: key facts
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) was built from 1983 to 1987.
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) has a claimed engine power (gross or net not stated) of 36.8 kW (49.3 hp); it has no measured PTO figure.
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) was offered in two-wheel-drive and four-wheel-drive versions.
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) has a Perkins AD 3.152 S engine, a 3-cylinder 2.50 L diesel unit.Source 2
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) weighs 2,120 kg (4,674 lb) unladen.
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Landini 5830 (DT) TL-22 N/G (TL-DT/L) lifts 2,050 kg (4,519 lb) at the lower-link ends.
The hydraulic pump of the Landini 5830 (DT) TL-22 N/G (TL-DT/L) delivers 36.1 L/min (9.5 gpm).
Source · Traktorenlexikon, “Landini 5830 (DT)”
.jpg){kind=link}
How much horsepower does a 5830 (DT) TL-22 N/G (TL-DT/L) have?
The only figure for the 5830 (DT) TL-22 N/G (TL-DT/L) is 49.3 hp (36.8 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Landini 5830 (DT)”
What engine is in a 5830 (DT) TL-22 N/G (TL-DT/L)?
A 5830 (DT) TL-22 N/G (TL-DT/L) has a Perkins AD 3.152 S, a 3-cylinder 2.50 L diesel engine.
| Make & model | Perkins AD 3.152 SSource 2 |
|---|---|
| Cylinders | 3, liquid-cooledSource 2 |
| Displacement | 152.6 ci · 2.50 LSource 2 |
| Max torque | 133 lb·ft · 181 N·m @ 1,301 rpm |
| Injection | Direct injection method |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Landini 5830 (DT)”
How much will a 5830 (DT) TL-22 N/G (TL-DT/L) lift, and what is its hydraulic flow?
A 5830 (DT) TL-22 N/G (TL-DT/L) lifts 4,519 lb (2,050 kg) at the lower-link ends.
| Pump flow | 9.5 gpm · 36.1 L/min |
|---|---|
| Lift at ends | 4,519 lb · 2,050 kg |
| Rear PTO | 540/1000 rpm @ 1,944 engine rpm |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Landini 5830 (DT)”
What transmission does a 5830 (DT) TL-22 N/G (TL-DT/L) have?
Transmission specifications for the 5830 (DT) TL-22 N/G (TL-DT/L) are below.
| Clutch | Dry, air-cooled OMG double clutch |
|---|---|
| Brakes | Pedal-operated hydraulic wet disc brake acting on differential side shafts |
| Top speed | 18.6 mph · 30 km/h |
Source · Traktorenlexikon, “Landini 5830 (DT)”
How much does a 5830 (DT) TL-22 N/G (TL-DT/L) weigh?
A 5830 (DT) TL-22 N/G (TL-DT/L) weighs 4,674 lb (2,120 kg) unladen.
| Unladen weight | 4,674 lb · 2,120 kgDT: 2,390 |
|---|---|
| Wheelbase | 81.9 in · 2,080 mmDT: 2,060 |
| Length | 140.7 in · 3,575 mmDT: 3,580 |
| Width | 69.1 in · 1,755 mmDT: 1,815 |
| Height | 89.6 in · 2,275 mm |
| Ground clearance | 17.1 in · 435 mmDT: 345 |
| Front track | 52.0–71.7 in · 1,320–1,820 mmDT: 1,500 |
| Rear track | 63.0–74.8 in · 1,600–1,900 mm |
| Turning radius, braked | 12.4 ft · 3.79 mDT: 3,990 |
Source · Traktorenlexikon, “Landini 5830 (DT)”
Which tractors compare with a 5830 (DT) TL-22 N/G (TL-DT/L)?
Within 10% of its 42.2 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Ford 361042.2 hp PTO, claimed · 1981–1983Side by side with the 5830 (DT) TL-22 N/G (TL-DT/L) →
- CASE-INTERNATIONAL 495 (DT)42.0 hp PTO, claimed · 1990–1993Side by side with the 5830 (DT) TL-22 N/G (TL-DT/L) →
- Massey Ferguson MF 4215 (A)42.5 hp PTO, claimed · 1997–2001Side by side with the 5830 (DT) TL-22 N/G (TL-DT/L) →
- Case-IH CX 5042.5 hp PTO, measured · 1998–2000Side by side with the 5830 (DT) TL-22 N/G (TL-DT/L) →
- Leyland 25542.6 hp PTO, claimed · 1973–1975Side by side with the 5830 (DT) TL-22 N/G (TL-DT/L) →
- Fiat 466 (DT)42.6 hp PTO, claimed · 1982–1986Side by side with the 5830 (DT) TL-22 N/G (TL-DT/L) →
Everything else people ask
Is a 5830 (DT) TL-22 N/G (TL-DT/L) two-wheel drive or four-wheel drive?
The Landini 5830 (DT) TL-22 N/G (TL-DT/L) was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 5830 (DT) TL-22 N/G (TL-DT/L) have?
A 5830 (DT) TL-22 N/G (TL-DT/L) has a 540/1000 rpm rear PTO on a 1 3/8"- 6 splines shaft.
