- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Standard-size
- Lab tested ×1
- 2006–2014
WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

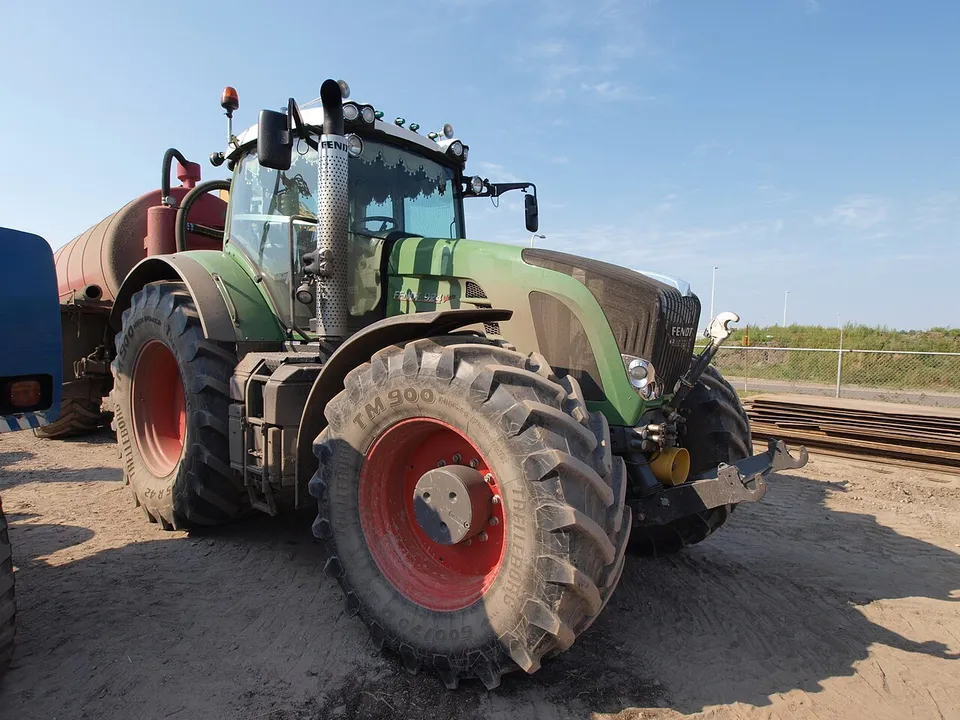

Fendt 924 Vario specs: hp, weight, years
Deutz TCD 2013 LO6 4V six-cylinder diesel or Deutz TCD 2013L06 4V. The manufacturer claimed 207 horsepower. The only laboratory test on record is of one version: OECD Test 2545 measured 224.1 hp at the PTO of the 924 Vario TMS, COM IIIa. Compared at the engine's rated speed, where the brochure figure is quoted, the shaft gave 194.6 hp — 5.8% below the claim.
Engine power, claimed · gross or net not stated
207 hp
154 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fendt 924 Vario”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 22,223 lb
- Top speed
- 31.1–37.3 mph
Fendt 924 Vario specs: key facts
The Fendt 924 Vario was built from 2006 to 2014.
Only one version of the Fendt 924 Vario has a laboratory test on record: the 924 Vario TMS, COM IIIa produced 167.1 kW (224.1 hp) at the PTO, measured on OECD Test 2545.Source 2
The Fendt 924 Vario has a claimed engine power (gross or net not stated) of 154 kW (207 hp); it has no measured PTO figure.
The Fendt 924 Vario is four-wheel drive (4WD).Source 2
The Fendt 924 Vario has a Deutz TCD 2013 LO6 4V engine, a 6-cylinder 7.14 L diesel unit.Source 3
The Fendt 924 Vario weighs 10,080 kg (22,223 lb) unladen.
The Fendt 924 Vario has a rear PTO running at 540/1000 rpm.Source 2
Source · Traktorenlexikon, “Fendt 924 Vario”
How does the 924 Vario compare with its class?
- Strength:
A maximum engine torque of 1,000 N·m is high for its class — 16% above the median of 860 N·m across the 98 machines within 10% of its power that hold this figure.
- Strength:
A 660 L fuel tank is high for its class — 70% above the median of 389 L across the 115 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 10,080 kg is high for its class — 21% above the median of 8,332 kg across the 119 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 119 comparable records. How we work this out
How much horsepower does a 924 Vario have?
The only laboratory test on record is of one version. OECD Test 2545 measured 224.1 hp at the PTO of the 924 Vario TMS, COM IIIa. For the 924 Vario as a whole the figure is the 207 hp claimed for the engine, which is not power at the shaft.
Sources · Traktorenlexikon, “Fendt 924 Vario”; OECD test report 2545, 2010
What engine is in a 924 Vario?
A 924 Vario has a Deutz TCD 2013 LO6 4V, a 6-cylinder 7.14 L diesel engine. 924 Vario TMS, COM IIIa tractors have a Deutz TCD 2013L06 4V.
| Make & model | Deutz TCD 2013 LO6 4V |
|---|---|
| Cylinders | 6, liquid-cooledSource 4 |
| Displacement | 435.8 ci · 7.14 L |
| Max torque | 738 lb·ft · 1,000 N·mSource 4 |
| Electrical system | 12 VSource 4 |
Source · Traktorenlexikon, “Fendt 922 Vario”
How much will a 924 Vario lift?
Hydraulic and PTO specifications for the 924 Vario are below.
| System | Load sensingSource 4 |
|---|---|
| PTO shaft | 44.45 mm, 6 splinesOn record for 1 of 2 configurations |
Source · OECD test report 2545, 2010
What transmission does a 924 Vario have?
Transmission specifications for the 924 Vario are below.
| Top speed | 31.1–37.3 mph · 50–60 km/hthe article lists alternatives |
|---|
Source · Traktorenlexikon, “Fendt 924 Vario”
How much does a 924 Vario weigh?
A 924 Vario weighs 22,223 lb (10,080 kg) unladen.
| Unladen weight | 22,223 lb · 10,080 kg |
|---|---|
| Maximum permissible mass | 33,069–39,683 lb · 15,000–18,000 kg |
| Wheelbase | 120.1 in · 3,050 mm |
| Length | 222.6 in · 5,655 mm |
| Width | 108.3 in · 2,750 mm |
| Height | 130.8 in · 3,322 mm |
| Ground clearance | 18.9 in · 480 mm |
| Front track | 82.7 in · 2,100 mm |
| Rear track | 80.7 in · 2,050 mm |
| Turning radius, braked | 19.9 ft · 6.08 m |
Source · Traktorenlexikon, “Fendt 924 Vario”
Which tractors compare with a 924 Vario?
Within 10% of its 207 hp of claimed engine power, the same type, and first built within 15 years of it.
- Fendt Favorit 822 LSE207 hp engine, claimed · 1993–2004Side by side with the 924 Vario →
- New Holland TG 210207.2 hp engine, claimed · 2002–2005Side by side with the 924 Vario →
- Ford 8870207.2 hp engine, claimed · 1993–1999Side by side with the 924 Vario →
- New Holland 8870A207.2 hp engine, claimed · 1993–2002Side by side with the 924 Vario →
- Massey Ferguson 8260A207.3 hp engine, claimed · 1999–2002Side by side with the 924 Vario →
- John Deere 8200T207.3 hp engine, claimed · 1997–1998Side by side with the 924 Vario →
Common questions about the Fendt 924 Vario
Is a 924 Vario two-wheel drive or four-wheel drive?
The Fendt 924 Vario is four-wheel drive (4WD).
Sources and how this page was built
Compiled from OECD tractor test report 2545; Traktorenlexikon, “Fendt 922 Vario”; and Traktorenlexikon, “Fendt 924 Vario”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- OECD Code 2 test report 2/2 542: Fendt 930 Vario TMS, COM IIIa — Licence not stated by the publisher; facts cited, OECD-2542 · published 2010-03-02 · retrieved 2026-09-14. OECD; testing station DLG e.V., Gross-Umstadt, Germany. Original document
- OECD Code 2 test report 2/2 545: Fendt 924 Vario TMS, COM IIIa — Licence not stated by the publisher; facts cited, OECD-2545 · published 2010-03-04 · retrieved 2026-09-14. OECD; testing station DLG e.V., Gross-Umstadt, Germany. Original document
- Traktorenlexikon: Fendt 922 Vario — CC BY-SA 4.0, WIKIBOOKS-TL-72488 · revision 990836. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Fendt 924 Vario — CC BY-SA 4.0, WIKIBOOKS-TL-72911 · revision 990837. Wikibooks contributors (Traktorenlexikon). Original document
