- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1962–1967
- 37,339 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

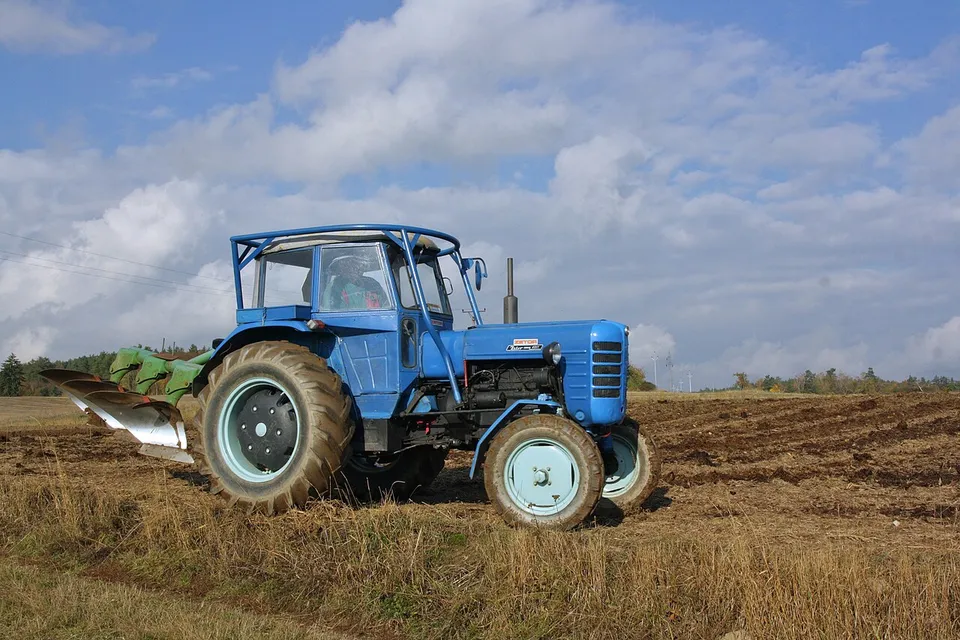

ZETOR 4011 specs: hp, weight, years
ZETOR Z-4001 four-cylinder diesel. The manufacturer claimed 44.4 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
44.4 hp
33.1 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Zetor 4011”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 4,332 lb
- 3-point lift
- 2,646 lb
- Hyd. flow
- 6.1 gpm
- Top speed
- 15.5 mph
ZETOR 4011 specs: key facts
The ZETOR 4011 was built from 1962 to 1967.
The ZETOR 4011 has a claimed engine power (gross or net not stated) of 33.1 kW (44.4 hp); it has no measured PTO figure.
The ZETOR 4011 is two-wheel drive (2WD).
The ZETOR 4011 has a ZETOR Z-4001 engine, a 4-cylinder 3.12 L diesel unit.Source 2
The ZETOR 4011 weighs 1,965 kg (4,332 lb) unladen.
The ZETOR 4011 has a rear PTO running at 540 rpm.
The three-point hitch of the ZETOR 4011 lifts 1,200 kg (2,646 lb) at the lower-link ends.
The hydraulic pump of the ZETOR 4011 delivers 23.0 L/min (6.1 gpm).
Source · Traktorenlexikon, “Zetor 4011”
How does the 4011 compare with its class?
- Strength:
A 80 L fuel tank is high for its class — 48% above the median of 54 L across the 246 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 272 comparable records. How we work this out
How much horsepower does a 4011 have?
The only figure for the 4011 is 44.4 hp (33.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Zetor 4011”
What engine is in a 4011?
A 4011 has a ZETOR Z-4001, a 4-cylinder 3.12 L diesel engine.
| Make & model | ZETOR Z-4001 |
|---|---|
| Cylinders | 4, liquid-cooledSource 1 |
| Displacement | 190.3 ci · 3.12 L |
| Electrical system | 12 VSource 1 |
Source · Traktorenlexikon, “Zetor 4511”
How much will a 4011 lift, and what is its hydraulic flow?
A 4011 lifts 2,646 lb (1,200 kg) at the lower-link ends.
| Pump flow | 6.1 gpm · 23.0 L/min |
|---|---|
| Pressure | 1,707 psi · 118 bar |
| Lift at ends | 2,646 lb · 1,200 kg |
| Rear PTO | 540 rpm |
Source · Traktorenlexikon, “Zetor 4011”
What transmission does a 4011 have?
Transmission specifications for the 4011 are below.
| Clutch | Pedal-operated dry two-stage double clutch |
|---|---|
| Steering | Mechanical worm steering with two steering drag links and one tie rod |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Zetor 4011”
How much does a 4011 weigh?
A 4011 weighs 4,332 lb (1,965 kg) unladen.
| Unladen weight | 4,332 lb · 1,965 kg |
|---|---|
| Maximum front axle load | 2,205 lb · 1,000 kg |
| Maximum rear axle load | 4,442 lb · 2,015 kg |
| Wheelbase | 83.7 in · 2,125 mm |
| Length | 128.0 in · 3,250 mm |
| Width | 70.5 in · 1,790 mm |
| Height | 63.8 in · 1,620 mm |
| Ground clearance | 17.2 in · 436 mm |
| Front track | 53.1–68.9 in · 1,350–1,750 mm |
| Rear track | 53.1–70.9 in · 1,350–1,800 mm |
| Turning radius, braked | 10.7 ft · 3.25 m |
Source · Traktorenlexikon, “Zetor 4011”
What oil does a 4011 take, and how much?
A 4011 engine takes 11.6 qt (11.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11.0 LSource: Traktorenlexikon, “Zetor 4011” · single source, not independently verified |
| Transmission | 26.4 qt · 25 LSource: Traktorenlexikon, “Zetor 4011” · single source, not independently verified |
| Cooling system | 13.7 qt · 13.0 LSource: Traktorenlexikon, “Zetor 4011” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 4011?
Within 10% of its 44.4 hp of claimed engine power, the same type, and first built within 15 years of it.
- Massey Ferguson 4244.4 hp engine, claimed · 1962–1965Side by side with the 4011 →
- Warchalowski WT-5044.4 hp engine, claimed · 1962–1966Side by side with the 4011 →
- Fiat 415 (DT)44.4 hp engine, claimed · 1963–1968Side by side with the 4011 →
- SOMECA SOM-40 Super44.4 hp engine, claimed · 1963–1964Side by side with the 4011 →
- SOMECA SOM-40H44.4 hp engine, claimed · 1961–1963Side by side with the 4011 →
- SOMECA SOM-4544.4 hp engine, claimed · 1961–1963Side by side with the 4011 →
Common questions about the ZETOR 4011
Is a 4011 two-wheel drive or four-wheel drive?
The ZETOR 4011 is two-wheel drive (2WD).
What PTO does a 4011 have?
A 4011 has a 540 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Zetor 4011”; and Traktorenlexikon, “Zetor 4511”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Zetor 4011 — CC BY-SA 4.0, WIKIBOOKS-TL-112150 · revision 989274. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Zetor 4511 — CC BY-SA 4.0, WIKIBOOKS-TL-92200 · revision 999925. Wikibooks contributors (Traktorenlexikon). Original document
