- Rigid chassis
- WhichTractor size: Compact
- Not independently tested
- 1963–1965
- 1,269 built
It sits on the compact/utility boundary, so either size is a fair description. It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

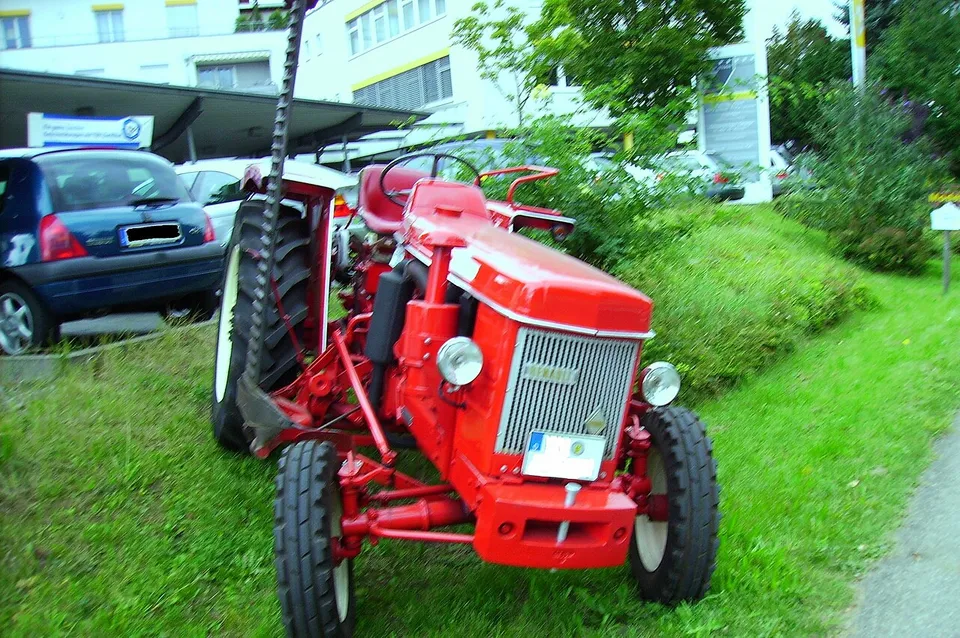

Renault Super 4 Full specifications
The manufacturer claimed 29.6 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
29.6 hp
22.1 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Renault Super 4 R7056”, claimed
- Weight
- 3,924 lb
- 3-point lift
- 2,976 lb
- Hyd. flow
- 3.7 gpm
- Top speed
- 15.5 mph
Renault Super 4 specs: key facts
The Renault Super 4 was built from 1963 to 1965.
The Renault Super 4 has a claimed engine power (gross or net not stated) of 22.1 kW (29.6 hp); it has no measured PTO figure.
The Renault Super 4 is two-wheel drive (2WD).
The Renault Super 4 weighs 1,780 kg (3,924 lb) unladen.
The Renault Super 4 has a rear PTO running at 540 rpm.
The three-point hitch of the Renault Super 4 lifts 1,350 kg (2,976 lb) at the lower-link ends.
The hydraulic pump of the Renault Super 4 delivers 14.0 L/min (3.7 gpm).
Source · Traktorenlexikon, “Renault Super 4 R7056”
How much horsepower does a Super 4 have?
The only figure for the Super 4 is 29.6 hp (22.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Renault Super 4 R7056”
How much will a Super 4 lift, and what is its hydraulic flow?
A Super 4 lifts 2,976 lb (1,350 kg) at the lower-link ends of its Category 1 three-point hitch.
| Pump flow | 3.7 gpm · 14.0 L/min |
|---|---|
| Hitch category | Category 1 |
| Lift at ends | 2,976 lb · 1,350 kg |
| Rear PTO | 540 rpm @ 1,582 engine rpm |
| PTO shaft | 34 x 28 x 6 mm |
Source · Traktorenlexikon, “Renault Super 4 R7056”
What transmission does a Super 4 have?
Transmission specifications for the Super 4 are below.
| Clutch | Pedal-operated dry single-plate clutch |
|---|---|
| Steering | Mechanical GEMMER steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Renault Super 4 R7056”
How much does a Super 4 weigh?
A Super 4 weighs 3,924 lb (1,780 kg) unladen.
| Unladen weight | 3,924 lb · 1,780 kg |
|---|---|
| Wheelbase | 73.6 in · 1,870 mm |
| Length | 129.1 in · 3,280 mm |
| Width | 59.8 in · 1,520 mm |
| Height | 61.8 in · 1,570 mm |
| Ground clearance | 15.0 in · 380 mm |
| Front track | 47.2–74.8 in · 1,200–1,900 mm |
| Rear track | 47.2–70.9 in · 1,200–1,800 mm |
| Turning radius, braked | 9.5 ft · 2.90 m |
Source · Traktorenlexikon, “Renault Super 4 R7056”
Which tractors compare with a Super 4?
Within 10% of its 29.6 hp of claimed engine power, the same type, and first built within 15 years of it.
- SOMECA SOM-31229.6 hp engine, claimed · 1964–1965Side by side with the Super 4 →
- Warchalowski WT-33 B29.6 hp engine, claimed · 1962Side by side with the Super 4 →
- International Harvester FU-23729.6 hp engine, claimed · 1961Side by side with the Super 4 →
- Warchalowski WT-3029.6 hp engine, claimed · 1965–1968Side by side with the Super 4 →
- Warchalowski WT-30 B29.6 hp engine, claimed · 1965–1969Side by side with the Super 4 →
- BUKH 302 (Super)29.6 hp engine, claimed · 1960–1967Side by side with the Super 4 →
Everything else people ask
Is a Super 4 two-wheel drive or four-wheel drive?
The Renault Super 4 is two-wheel drive (2WD).
What PTO does a Super 4 have?
A Super 4 has a 540 rpm rear PTO on a 34 x 28 x 6 mm shaft.
Where this page comes from
Compiled from Traktorenlexikon, “Renault Super 4 R7056”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Renault Super 4 R7056 — CC BY-SA 4.0, WIKIBOOKS-TL-49539 · revision 993320. Wikibooks contributors (Traktorenlexikon). Original document
