- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1964–1967
- 41,460 built
WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

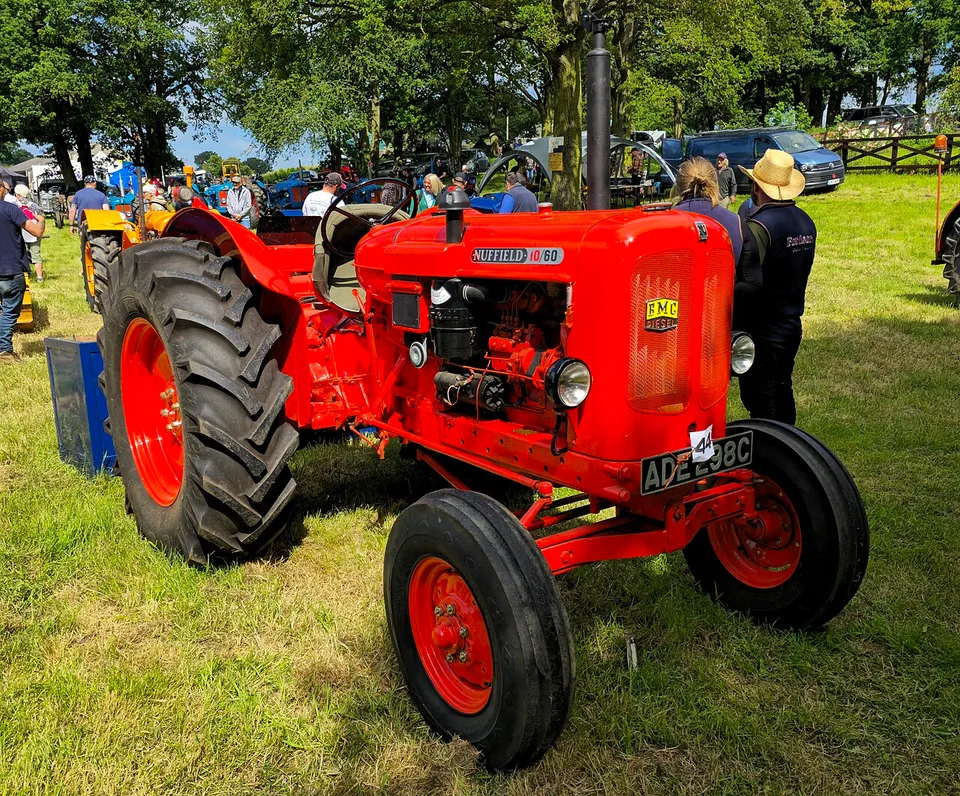

Nuffield 10/60 specs: hp, weight, years
BMC 38 T four-cylinder diesel. The manufacturer claimed 57.5 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
57.5 hp
42.9 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 5,864 lb
- Hyd. flow
- 9.2 gpm
- Top speed
- 15.5 mph
Nuffield 10/60 specs: key facts
The Nuffield 10/60 was built from 1964 to 1967.
The Nuffield 10/60 has a claimed engine power (gross or net not stated) of 42.9 kW (57.5 hp); it has no measured PTO figure.
The Nuffield 10/60 is two-wheel drive (2WD).
The Nuffield 10/60 has a BMC 38 T engine, a 4-cylinder 3.77 L diesel unit.
The Nuffield 10/60 weighs 2,660 kg (5,864 lb) unladen.
The Nuffield 10/60 has a rear PTO running at 540 rpm.
The hydraulic pump of the Nuffield 10/60 delivers 35.0 L/min (9.2 gpm).
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”
How much horsepower does a 10/60 have?
The only figure for the 10/60 is 57.5 hp (42.9 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”
What engine is in a 10/60?
A 10/60 has a BMC 38 T, a 4-cylinder 3.77 L diesel engine.
| Make & model | BMC 38 T |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 230.1 ci · 3.77 L |
| Max torque | 170 lb·ft · 230 N·m @ 1,200 rpm |
| Injection | Direct injection method |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”
How much will a 10/60 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the 10/60 are below.
| Pump flow | 9.2 gpm · 35.0 L/min |
|---|---|
| Rear PTO | 540 rpm @ 1,430 engine rpm |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”
What transmission does a 10/60 have?
Transmission specifications for the 10/60 are below.
| Clutch | Pedal-operated dry Borg & Beck single-plate clutch |
|---|---|
| Brakes | Pedal-operated disc brake acting on drive shafts designed as individual wheel brake |
| Steering | Mechanical recirculating ball steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”
How much does a 10/60 weigh?
A 10/60 weighs 5,864 lb (2,660 kg) unladen.
| Unladen weight | 5,864 lb · 2,660 kg |
|---|---|
| Wheelbase | 78.0 in · 1,981 mm |
| Length | 121.5 in · 3,086 mm |
| Width | 69.0 in · 1,753 mm |
| Height | 80.7 in · 2,051 mm |
| Ground clearance | 12.6 in · 320 mm |
| Front track | 53.0–74.5 in · 1,346–1,892 mm |
| Rear track | 60.0–70.0 in · 1,524–1,778 mm |
| Turning radius, braked | 10.4 ft · 3.18 m |
Source · Traktorenlexikon, “Nuffield 10/60 (1964-1967)”
What oil does a 10/60 take, and how much?
A 10/60 engine takes 9.0 qt (8.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.0 qt · 8.5 LSource: Traktorenlexikon, “Nuffield 10/60 (1964-1967)” · single source, not independently verified |
| Transmission | 57.7 qt · 54.6 LSource: Traktorenlexikon, “Nuffield 10/60 (1964-1967)” · single source, not independently verified |
| Cooling system | 14.4 qt · 13.6 LSource: Traktorenlexikon, “Nuffield 10/60 (1964-1967)” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 10/60?
Within 10% of its 43.2 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Volvo T 43043.2 hp PTO, claimed · 1969–1978Side by side with the 10/60 →
- VOLVO-BM T 43043.2 hp PTO, claimed · 1969–1978Side by side with the 10/60 →
- IMT 588 (also listed as 558)43.2 hp PTO, claimed · 1970–1980Side by side with the 10/60 →
- Deutz D 5043.1 hp PTO, claimed · 1960–1962Side by side with the 10/60 →
- URSUS C-35043.4 hp PTO, claimed · 1965–1970Side by side with the 10/60 →
- Steyr Plus 5043 hp PTO, claimed · 1967–1977Side by side with the 10/60 →
Common questions about the Nuffield 10/60
Is a 10/60 two-wheel drive or four-wheel drive?
The Nuffield 10/60 is two-wheel drive (2WD).
What PTO does a 10/60 have?
A 10/60 has a 540 rpm rear PTO on a 1 3/8"- 6 splines shaft.
