- WhichTractor size: Utility
- No lab test on file
- 1958–1967
- 6,959 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

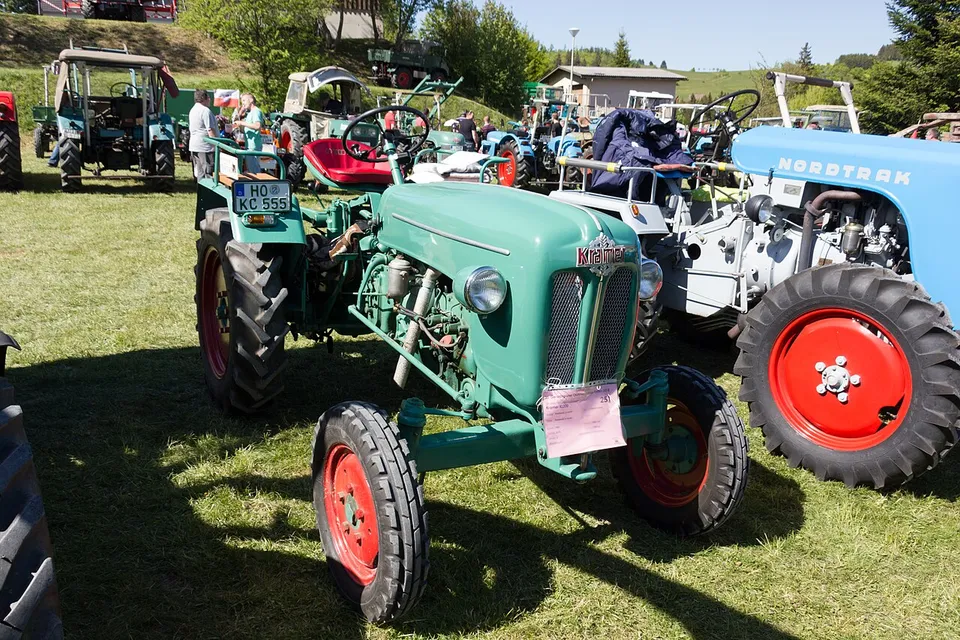

Kramer KL 200 specs: hp, weight, years
KHD F2L 712 diesel. The manufacturer claimed 17.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
17.7 hp
13.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Kramer KL 200”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,800–3,153 lb
- Hyd. flow
- 4.2 gpm
- Top speed
- 12.4 mph
Kramer KL 200 specs: key facts
The Kramer KL 200 was built from 1958 to 1967.
The Kramer KL 200 has a claimed engine power (gross or net not stated) of 13.2 kW (17.7 hp); it has no measured PTO figure.
The Kramer KL 200 is two-wheel drive (2WD).Source 2
The Kramer KL 200 weighs 1,270–1,430 kg (2,800–3,153 lb) unladen.
The Kramer KL 200 has a rear PTO running at 540 rpm.
The hydraulic pump of the Kramer KL 200 delivers 16 L/min (4.2 gpm).
Source · Traktorenlexikon, “Kramer KL 200”
.jpg){kind=link}
How much horsepower does a KL 200 have?
The only figure for the KL 200 is 17.7 hp (13.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Kramer KL 200”
How much will a KL 200 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the KL 200 are below.
| Pump flow | 4.2 gpm · 16 L/min |
|---|---|
| Pressure | 1,707 psi · 118 bar |
| Hitch category | Category 1 |
| Rear PTO | transmission-driven, 540 rpm @ 1,850 engine rpm |
Source · Traktorenlexikon, “Kramer KL 200”
What transmission does a KL 200 have?
Transmission specifications for the KL 200 are below.
| Clutch | Single-plate dry clutch from Fichtel & Sachs |
|---|---|
| Brakes | Pedal operated drum brake acting on the rear wheels |
| Steering | Bevel gear steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Kramer KL 200”
How much does a KL 200 weigh?
A KL 200 weighs 2,800–3,153 lb (1,270–1,430 kg) unladen.
| Unladen weight | 2,800–3,153 lb · 1,270–1,430 kgthe article lists alternatives |
|---|---|
| Maximum permissible mass | 4,012 lb · 1,820 kg |
| Maximum front axle load | 1,323 lb · 600 kg |
| Maximum rear axle load | 2,690 lb · 1,220 kg |
| Wheelbase | 69.5–71.9 in · 1,765–1,825 mmthe article lists alternatives |
| Length | 111.0–113.4 in · 2,820–2,880 mmthe article lists alternatives |
| Width | 58.7–59.1 in · 1,490–1,500 mmthe article lists alternatives |
| Height | 59.8–61.8 in · 1,520–1,570 mmthe article lists alternatives |
| Ground clearance | 13.8–15.7 in · 350–400 mmthe article lists alternatives |
| Front track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles |
| Rear track | 49.2–59.1 in · 1,250–1,500 mmWikibooks gives one track for both axles |
Source · Traktorenlexikon, “Kramer KL 200”
What oil does a KL 200 take, and how much?
A KL 200 engine takes 6.3 qt (6 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 6.3 qt · 6 LSource: Traktorenlexikon, “Kramer KL 200” · single source, not independently verified |
| Transmission | 4.2 qt · 4.0 LSource: Traktorenlexikon, “Kramer KL 200” · single source, not independently verified |
| Hydraulic | 4.4 qt · 4.2 LSource: Traktorenlexikon, “Kramer KL 200” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a KL 200?
Within 10% of its 17.7 hp of claimed engine power, the same type, and first built within 15 years of it.
- MAN 2K217.7 hp engine, claimed · 1958–1960Side by side with the KL 200 →
- Warchalowski WT 2017.7 hp engine, claimed · 1958–1968Side by side with the KL 200 →
- Hanomag C 21817.7 hp engine, claimed · 1957–1959Side by side with the KL 200 →
- MAN 2K117.7 hp engine, claimed · 1957–1958Side by side with the KL 200 →
- SOMECA SOM-20D17.7 hp engine, claimed · 1956–1961Side by side with the KL 200 →
- John Deere-LANZ 10017.7 hp engine, claimed · 1962–1966Side by side with the KL 200 →
Common questions about the Kramer KL 200
Is a KL 200 two-wheel drive or four-wheel drive?
The Kramer KL 200 is two-wheel drive (2WD).
What PTO does a KL 200 have?
A KL 200 has a 540 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Kramer KL 200 Schmalspur”; Traktorenlexikon, “Kramer KL 200”; and Traktorenlexikon, “Deutz D 25.1”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Kramer KL 200 — CC BY-SA 4.0, WIKIBOOKS-TL-44186 · revision 970889. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Kramer KL 200 Schmalspur — CC BY-SA 4.0, WIKIBOOKS-TL-100422 · revision 991368. Wikibooks contributors (Traktorenlexikon). Original document
