- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1958–1968
- 6,504 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

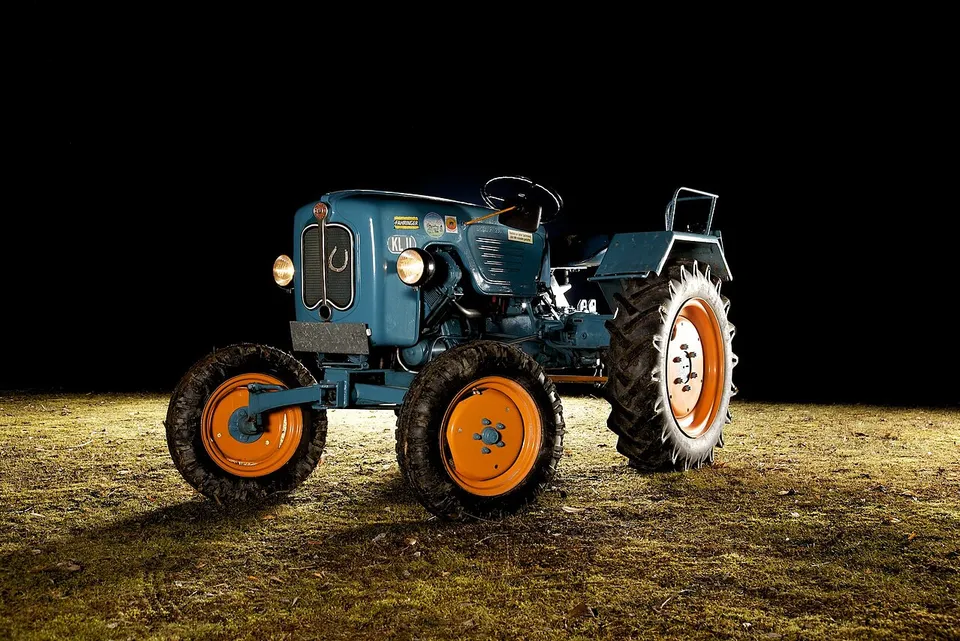

Warchalowski WT 20 specs: hp, weight, years
WARCHALOWSKI D-22 two-cylinder diesel. The manufacturer claimed 17.7 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
17.7 hp
13.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Warchalowski WT 20”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 1,951 lb
- 3-point lift
- 2,822 lb
- Top speed
- 15.5 mph
Warchalowski WT 20 specs: key facts
The Warchalowski WT 20 was built from 1958 to 1968.
The Warchalowski WT 20 has a claimed engine power (gross or net not stated) of 13.2 kW (17.7 hp); it has no measured PTO figure.
The Warchalowski WT 20 is two-wheel drive (2WD).
The Warchalowski WT 20 has a WARCHALOWSKI D-22 engine, a 2-cylinder 1.15 L diesel unit.
The Warchalowski WT 20 weighs 885 kg (1,951 lb) unladen.
The Warchalowski WT 20 has an independent rear PTO running at 540 rpm.
The three-point hitch of the Warchalowski WT 20 lifts 1,280 kg (2,822 lb) at the lower-link ends.
Source · Traktorenlexikon, “Warchalowski WT 20”
How does the WT 20 compare with its class?
- Limitation:
A 21 L fuel tank is low for its class — 22% below the median of 27 L across the 44 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 53 comparable records. How we work this out
How much horsepower does a WT 20 have?
The only figure for the WT 20 is 17.7 hp (13.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Warchalowski WT 20”
What engine is in a WT 20?
A WT 20 has a WARCHALOWSKI D-22, a 2-cylinder 1.15 L diesel engine.
| Make & model | WARCHALOWSKI D-22 |
|---|---|
| Cylinders | 2, air-cooled |
| Displacement | 69.9 ci · 1.15 L |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Warchalowski WT 20”
How much will a WT 20 lift?
A WT 20 lifts 2,822 lb (1,280 kg) at the lower-link ends.
| Lift at ends | 2,822 lb · 1,280 kg |
|---|---|
| Rear PTO | Independent, transmission-driven, 540 rpmGround-speed PTO available |
| PTO shaft | 29 x 24 mm, Form-A |
Source · Traktorenlexikon, “Warchalowski WT 20”
What transmission does a WT 20 have?
Transmission specifications for the WT 20 are below.
| Clutch | pedal-operated dry single-disc clutch |
|---|---|
| Steering | mechanical ZF single-finger steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Warchalowski WT 20”
How much does a WT 20 weigh?
A WT 20 weighs 1,951 lb (885 kg) unladen.
| Unladen weight | 1,951 lb · 885 kg |
|---|---|
| Wheelbase | 66.9 in · 1,700 mm |
| Length | 100.8 in · 2,560 mm |
| Width | 57.5 in · 1,460 mm |
| Height | 57.1 in · 1,450 mm |
| Ground clearance | 17.3 in · 440 mm |
| Front track | 50.6–56.3 in · 1,284–1,430 mm |
| Rear track | 49.2–59.1 in · 1,250–1,500 mm |
| Turning radius, braked | 7.5 ft · 2.30 m |
Source · Traktorenlexikon, “Warchalowski WT 20”
What oil does a WT 20 take, and how much?
A WT 20 engine takes 4.8 qt (4.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 4.8 qt · 4.5 LSource: Traktorenlexikon, “Warchalowski WT 20” · single source, not independently verified |
| Transmission | 6.9 qt · 6.5 LSource: Traktorenlexikon, “Warchalowski WT 20” · single source, not independently verified |
| Hydraulic | 4.2 qt · 4.0 LSource: Traktorenlexikon, “Warchalowski WT 20” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a WT 20?
Within 10% of its 17.7 hp of claimed engine power, the same type, and first built within 15 years of it.
- Kramer KL 20017.7 hp engine, claimed · 1958–1967Side by side with the WT 20 →
- MAN 2K217.7 hp engine, claimed · 1958–1960Side by side with the WT 20 →
- Hanomag C 21817.7 hp engine, claimed · 1957–1959Side by side with the WT 20 →
- MAN 2K117.7 hp engine, claimed · 1957–1958Side by side with the WT 20 →
- SOMECA SOM-20D17.7 hp engine, claimed · 1956–1961Side by side with the WT 20 →
- John Deere-LANZ 10017.7 hp engine, claimed · 1962–1966Side by side with the WT 20 →
Common questions about the Warchalowski WT 20
Is a WT 20 two-wheel drive or four-wheel drive?
The Warchalowski WT 20 is two-wheel drive (2WD).
What PTO does a WT 20 have?
A WT 20 has a independent 540 rpm rear PTO on a 29 x 24 mm, Form-A shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Warchalowski WT 20”.
