WhichTractor
  • Vehicle type: unspecified
  • Rigid chassis
  • WhichTractor size: Standard-size
  • Lab tested ×3
  • 1997–2003

WhichTractor size, not the maker’s category

We looked and the record does not say what this machine is. How we decide what a machine is

John Deere 7710 Full specifications

John Deere 6.081 TRW-02 six-cylinder diesel or John Deere 6081TRW09. OECD put one on a dynamometer and measured 151.4 hp at the power take-off — the number to size an implement from.

Measured at the PTO shaft

151.4 hp

Source · OECD Test 1709, measured

Drawbar hp
137.5

John Deere 7710 specs: key facts

  • The John Deere 7710 was built from 1997 to 2003 and produced 112.9 kW (151.4 hp) at the PTO, measured on OECD Test 1709.Source 1

  • The claimed engine power (gross or net not stated) of the John Deere 7710 is 114.1–117.8 kW (153.0–158.0 hp), depending on configuration.

  • The John Deere 7710 is four-wheel drive (4WD).Source 1,Source 2,Source 3

  • The John Deere 7710 has a John Deere 6.081 TRW-02 engine, a 6-cylinder 8.13 L diesel unit.Source 5

  • The John Deere 7710 weighs 6,023–7,007 kg (13,278–15,448 lb) unladen, depending on configuration.

  • The John Deere 7710 has an independent rear PTO running at 540/1000 rpm.Source 1

  • The hydraulic pump of the John Deere 7710 delivers 101.4 L/min (26.8 gpm).

Source · Traktorenlexikon, “John Deere 7710”

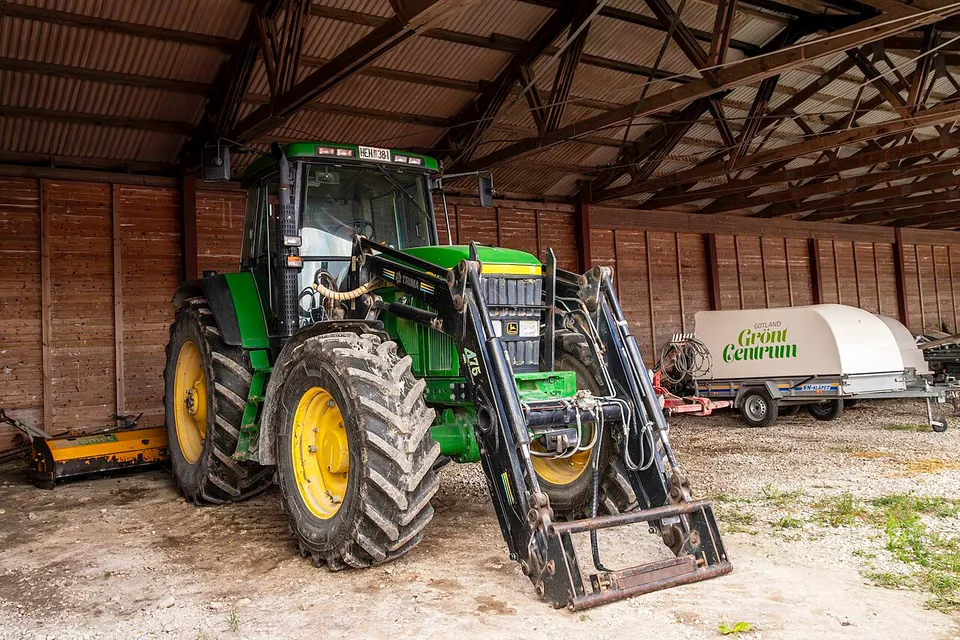

John Deere 7710 tractor
Photo: Bene Riobó, CC BY-SA 4.0 via Wikimedia Commons · Wrong photo?

How much horsepower does a 7710 have at the PTO?

At the PTO shaft a 7710 has 151.4 hp (112.9 kW), measured on OECD Test 1709. The John Deere 6.081 TRW-02 gave 147.1 hp at the PTO on Test 1710. The John Deere 6081TRW09 gave 151.0 hp at the PTO on Test 1960.

PTO, measured
151.4 hp
Drawbar, measured (unballasted)
137.5 hp

Sources · OECD test report 1709, 1997; Traktorenlexikon, “John Deere 7710”; OECD test report 1710, 1997; OECD test report 1960, 2001

What engine is in a 7710?

A 7710 has a John Deere 6.081 TRW-02, a 6-cylinder 8.13 L diesel engine. 7710 (4 WD) tractors have a John Deere 6081TRW09.

Engine — 7710 engine specifications
Make & modelJohn Deere 6.081 TRW-02
Cylinders6, liquid-cooledSource 1
Displacement496.4 ci · 8.13 L
Aspirationsupercharged
Max torque497 lb·ft · 674.0 N·m @ 1,250 rpmSource 1,Source 2Sources disagree521 lb·ft · 707.0 N·m (OECD test report 1960, 2001)496 lb·ft · 672.0 N·m (OECD test report 1710, 1997)

Source · Traktorenlexikon, “John Deere 7810”

How much will a 7710 lift?

Hydraulic and PTO specifications for the 7710 are below.

Hydraulics & PTO — 7710 hydraulics and PTO specifications
SystemClosed centre, load sensingSource 4On record for 1 of 5 configurations
Pump flow26.8 gpm · 101.4 L/minSource 4On record for 1 of 5 configurations
Rear PTO540/1000 rpm
PTO shaft35 mm, 6 splines / 35 mm, 21 splinesSource 3

Source · OECD test report 1709, 1997

What transmission does a 7710 have?

Transmission specifications for the 7710 are below.

Transmission — 7710 transmission specifications
Top speed18.6–31.1 mph · 30–50 km/hOn record for 1 of 5 configurationsthe article lists alternatives

Source · Traktorenlexikon, “John Deere 7710”

How much does a 7710 weigh?

Dimensions for the 7710 are below; no sourced weight is on record yet.

Weights & dimensions — 7710 weights and dimensions
Unladen weight13,278–15,448 lb · 6,023–7,007 kgVaries by configuration: 6,023 kg or 7,007 kgOn record for 2 of 5 configurationstwo-wheel-drive versionfour-wheel-drive version
Maximum permissible mass25,353 lb · 11,500 kgOn record for 1 of 5 configurations
Maximum front axle load10,582 lb · 4,800 kgOn record for 1 of 5 configurations
Maximum rear axle load22,046 lb · 10,000 kgOn record for 1 of 5 configurations
Wheelbase110.2–114.2 in · 2,800–2,900 mmVaries by configuration: 2,800 mm or 2,900 mmOn record for 2 of 5 configurationstwo-wheel-drive versionfour-wheel-drive version
Length187.2 in · 4,755 mmOn record for 1 of 5 configurations
Width108.3 in · 2,750 mmOn record for 1 of 5 configurations
Height119.0 in · 3,023 mmOn record for 1 of 5 configurations
Ground clearance20.3 in · 515 mmOn record for 1 of 5 configurations
Rear track60.0–130.6 in · 1,525–3,318 mmOn record for 1 of 5 configurations

Source · Traktorenlexikon, “John Deere 7710”

What did OECD measure on Test 1709?

OECD Test 1709 recorded 151.4 hp at the PTO and 137.5 hp at the drawbar. Configuration as printed: “4 WD · MFWD - PowerQuad - 30 km/h”.

Test results — OECD Test 1709, 7710: measured results
PTO power, maximum151.4 hp at 839 PTO rpm · 112.9 kW @ 1,750 engine rpm
PTO power, rated engine speed130.7 hp at 1,007 PTO rpm · 97.5 kW @ 2,100 engine rpm
PTO power, standard PTO speed130.7 hp at 1,007 PTO rpm · 97.5 kW @ 2,100 engine rpm
Drawbar power, unballasted137.5 hp · 102.5 kW

Source · OECD test report 1709, 1997

How much fuel does a 7710 burn per hour?

Measured on OECD Test 1709 (tested as the 7710 (4 WD)), at each condition the laboratory recorded.

2 other tests of this model are on record; figures differ between configurations.

Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).

Fuel use measured on OECD Test 1709
Test conditionFuel per hour
Maximum PTO powerPTO 112.9 kW (151.4 hp) at 839 rpm31.84 L/h 8.41 gal/h
Rated engine speedPTO 97.5 kW (130.7 hp) at 1,007 rpm30.79 L/h 8.13 gal/h
Standard PTO speedPTO 97.5 kW (130.7 hp) at 1,007 rpm30.79 L/h 8.13 gal/h
75% load, 50% loadNot on record for this test

Source · OECD Test 1709

Which tractors compare with a 7710?

Within 10% of its 151.4 hp at the PTO (measured), the same type, and first built within 15 years of it.

Everything else people ask

Is a 7710 two-wheel drive or four-wheel drive?

The John Deere 7710 is four-wheel drive (4WD).

What PTO does a 7710 have?

A 7710 has a 540/1000 rpm rear PTO on a 35 mm, 6 splines / 35 mm, 21 splines shaft.

What implements will a 7710 run?

Size PTO implements from the measured 151.4 hp at the shaft.

Where this page comes from

Compiled from OECD tractor test reports 1709, 1710 and 1960; Traktorenlexikon, “John Deere 7810”; and Traktorenlexikon, “John Deere 7710”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. OECD Code 2 test report 1 709: John Deere 7710 — Licence not stated by the publisher; facts cited, OECD-1709 · published 1997-11-21 · retrieved 2026-09-14. OECD. Original document
  2. OECD Code 2 test report 1 710: John Deere 7710 — Licence not stated by the publisher; facts cited, OECD-1710 · published 1997-11-26 · retrieved 2026-09-14. OECD. Original document
  3. OECD Code 2 test report 2/1 960: John Deere 7710 — Licence not stated by the publisher; facts cited, OECD-1960 · published 2001-06-19 · retrieved 2026-09-14. OECD. Original document
  4. Traktorenlexikon: John Deere 7710 — CC BY-SA 4.0, WIKIBOOKS-TL-48502 · revision 988793. Wikibooks contributors (Traktorenlexikon). Original document
  5. Traktorenlexikon: John Deere 7810 — CC BY-SA 4.0, WIKIBOOKS-TL-46408 · revision 1078707. Wikibooks contributors (Traktorenlexikon). Original document
