- Rigid chassis
- WhichTractor size: Standard-size
- Lab tested ×2
- 1997–2003
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

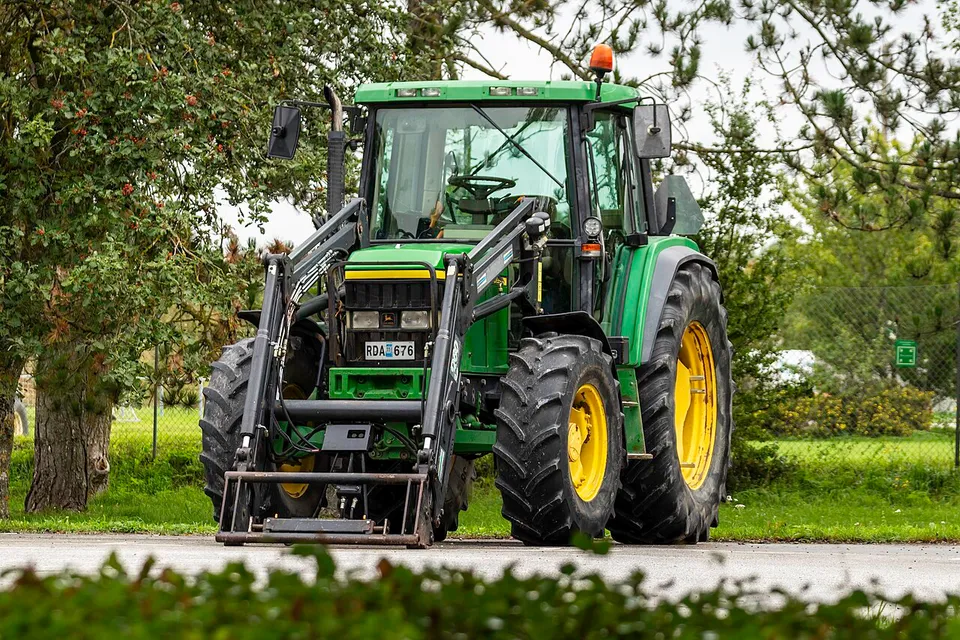

John Deere 6410 specs: hp, weight, years
John Deere 4045TL056 four-cylinder or John Deere 4.045 TL-053 diesel. OECD put one on a dynamometer and measured 98.0 hp at the power take-off — the number to size an implement from.
Measured at the PTO shaft
98.0 hp
Source · OECD Test 1806, measured
- Drawbar hp
- 79.7
- 3-point lift
- 13,264 lb
John Deere 6410 specs: key facts
The John Deere 6410 was built from 1997 to 2003 and produced 73.1 kW (98.0 hp) at the PTO, measured on OECD Test 1806.Source 1
The claimed engine power (gross or net not stated) of the John Deere 6410 is 77.3–77.3 kW (103.7–103.7 hp), depending on configuration.
The John Deere 6410 was offered in two-wheel-drive and four-wheel-drive versions.
The John Deere 6410 has a John Deere 4045TL056 engine, a 4-cylinder 4.53 L unit.Source 1
The John Deere 6410 weighs 4,100–4,390 kg (9,039–9,678 lb) unladen, depending on configuration.
The John Deere 6410 has a rear PTO running at 540E/540/1000 rpm.
The three-point hitch of the John Deere 6410 lifts 6,016 kg (13,264 lb) at the lower-link ends.
Source · Traktorenlexikon, “John Deere 6410”
How much horsepower does a 6410 have at the PTO?
At the PTO shaft a 6410 has 98.0 hp (73.1 kW), measured on OECD Test 1806. The John Deere 4.045 TL-053 gave 99.4 hp at the PTO on Test 1842.
Sources · OECD test report 1806, 1999; Traktorenlexikon, “John Deere 6410”; OECD test report 1842, 1999
What engine is in a 6410?
A 6410 has a John Deere 4045TL056, a 4-cylinder 4.53 L engine. 6410 (4 WD) tractors have a John Deere 4.045 TL-053. Diesel tractors have a John Deere 4.045 TL-053. Diesel tractors have a John Deere 4.045 TL-053.
| Make & model | John Deere 4045TL056 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 276.1 ci · 4.53 L |
| Aspiration | supercharged |
| Max torque | 307 lb·ft · 416.0 N·m @ 1,503 rpmSource 2Sources disagree293 lb·ft · 397.0 N·m (OECD test report 1806, 1999) |
Source · OECD test report 1806, 1999
How much will a 6410 lift?
A 6410 lifts 13,264 lb (6,016 kg) at the lower-link ends.
| System | Closed centre, load sensingSource 2On record for 1 of 4 configurations |
|---|---|
| Pressure | 3,017–3,220 psi · 208–222 barOn record for 1 of 4 configurations |
| Lift at ends | 13,264 lb · 6,016 kg |
| Rear PTO | 540E/540/1000 rpm |
| PTO shaft | 35 mm, 6 splines / 35 mm, 21 splinesSource 2 |
Source · Traktorenlexikon, “John Deere 6410”
What transmission does a 6410 have?
Transmission specifications for the 6410 are below.
| Brakes | Hydraulic wet annular piston disc brake acting on differential side shaftsOn record for 1 of 4 configurations |
|---|---|
| Steering | Hydrostatic DANFOSS steeringOn record for 1 of 4 configurations |
| Top speed | 18.6–31.1 mph · 30–50 km/hOn record for 1 of 4 configurationsthe article lists alternatives |
Source · Traktorenlexikon, “John Deere 6410”
How much does a 6410 weigh?
Dimensions for the 6410 are below; no sourced weight is on record yet.
| Unladen weight | 9,039–9,678 lb · 4,100–4,390 kgVaries by configuration: 4,100 kg or 4,390 kgOn record for 2 of 4 configurationstwo-wheel-drive versionfour-wheel-drive version |
|---|---|
| Maximum permissible mass | 17,637 lb · 8,000 kgOn record for 1 of 4 configurations |
| Wheelbase | 95.7 in · 2,430 mmOn record for 1 of 4 configurations |
| Length | 181.5 in · 4,610 mmOn record for 1 of 4 configurations |
| Width | 87.4 in · 2,220 mmOn record for 1 of 4 configurations |
| Height | 106.1 in · 2,694 mmOn record for 1 of 4 configurations |
| Ground clearance | 17.2 in · 436 mmOn record for 1 of 4 configurations |
| Rear track | 67.6–75.4 in · 1,716–1,916 mmOn record for 1 of 4 configurations |
Source · Traktorenlexikon, “John Deere 6410”
What oil does a 6410 take, and how much?
A 6410 engine takes 12.7 qt (12.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 12.7 qt · 12.0 LSource: Traktorenlexikon, “John Deere 6410” · single source, not independently verified |
| Transmission | 51.8 qt · 49.0 LSource: Traktorenlexikon, “John Deere 6410” · single source, not independently verified |
| Front axle | 5.3 qt · 5.0 LSource: Traktorenlexikon, “John Deere 6410” · single source, not independently verified |
| Cooling system | 14.3 qt · 13.5 LSource: Traktorenlexikon, “John Deere 6410” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
What did OECD measure on Test 1806?
OECD Test 1806 recorded 98.0 hp at the PTO and 79.7 hp at the drawbar. Configuration as printed: “4 WD · NA - PowrQuad”.
| PTO power, maximum | 98.0 hp at 861 PTO rpm · 73.1 kW @ 1,900 engine rpm |
|---|---|
| PTO power, rated engine speed | 90.4 hp at 1,042 PTO rpm · 67.4 kW @ 2,300 engine rpm |
| PTO power, standard PTO speed | 92.5 hp at 1,000 PTO rpm · 69.0 kW @ 2,208 engine rpm |
| Drawbar power, unballasted | 79.7 hp · 59.4 kW |
Source · OECD test report 1806, 1999
How much fuel does a 6410 burn per hour?
Measured on OECD Test 1806 (tested as the 6410 (4 WD)), at each condition the laboratory recorded.
1 other test of this model is on record; figures differ between configurations.
Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).
| Test condition | Fuel per hour |
|---|---|
| Maximum PTO powerPTO 73.1 kW (98.0 hp) at 861 rpm | 20.52 L/h 5.42 gal/h |
| Rated engine speedPTO 67.4 kW (90.4 hp) at 1,042 rpm | 20.62 L/h 5.45 gal/h |
| Standard PTO speedPTO 69.0 kW (92.5 hp) at 1,000 rpm | 20.73 L/h 5.48 gal/h |
| 75% load, 50% load | Not on record for this test |
Source · OECD Test 1806
Which tractors compare with a 6410?
Within 10% of its 98.0 hp measured at the PTO, the same type, and first built within 15 years of it.
- Deutz-Fahr AgroXtra 6.1799 hp PTO, claimed · 1991–1995Side by side with the 6410 →
- Massey Ferguson 4360 (A)94.9 hp PTO, claimed · 2001–2002Side by side with the 6410 →
- Massey Ferguson 4365 (A)94.5 hp PTO, claimed · 2002–2003Side by side with the 6410 →
- Massey Ferguson 4370 (A)101.5 hp PTO, claimed · 2001–2003Side by side with the 6410 →
- Deutz-Fahr AgroStar 6.38102 hp PTO, claimed · 1993–1995Side by side with the 6410 →
- Deutz-Fahr AgroPrima 6.16102 hp PTO, claimed · 1992–1995Side by side with the 6410 →
Common questions about the John Deere 6410
Is a 6410 two-wheel drive or four-wheel drive?
The John Deere 6410 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 6410 have?
A 6410 has a 540E/540/1000 rpm rear PTO on a 35 mm, 6 splines / 35 mm, 21 splines shaft.
What implements will a 6410 run?
Size PTO implements from the measured 98.0 hp at the shaft.
Sources and how this page was built
Compiled from OECD tractor test reports 1806 and 1842; and Traktorenlexikon, “John Deere 6410”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- OECD Code 2 test report 2/1 806: John Deere 6410 — Licence not stated by the publisher; facts cited, OECD-1806 · published 1999-01-27 · retrieved 2026-09-14. OECD; testing station DLG, Groß-Umstadt, Germany. Original document
- OECD Code 2 test report 2/1 842: John Deere 6410 — Licence not stated by the publisher; facts cited, OECD-1842 · published 1999-09-06 · retrieved 2026-09-14. OECD; testing station DLG, Groß-Umstadt, Germany. Original document
- Traktorenlexikon: John Deere 6410 — CC BY-SA 4.0, WIKIBOOKS-TL-48544 · revision 1076788. Wikibooks contributors (Traktorenlexikon). Original document
