- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1977–1982
- 3,518 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

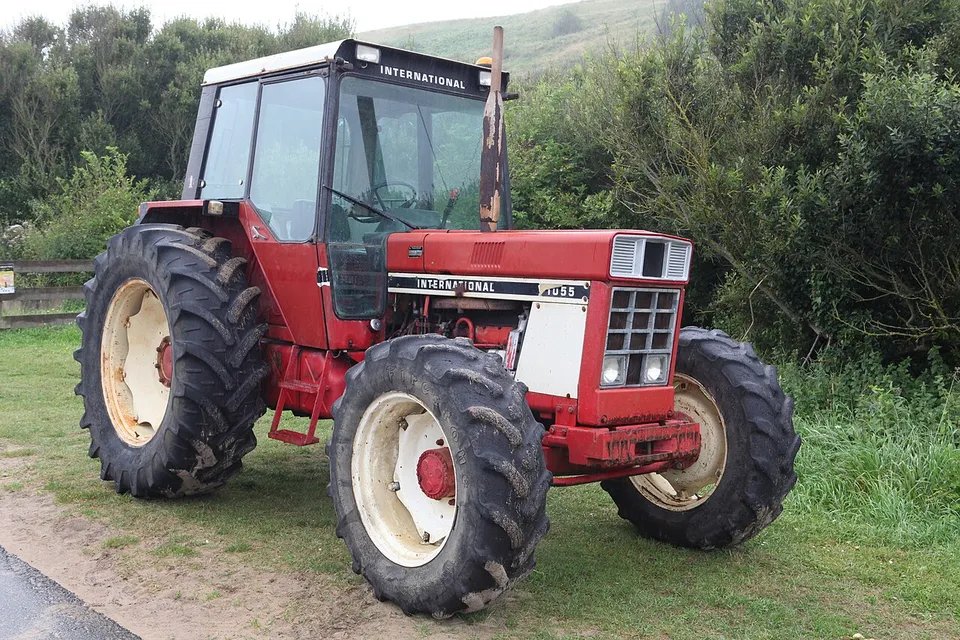

International Harvester 1055 Full specifications
IH D-358 six-cylinder diesel. The manufacturer claimed 99 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
99 hp
74 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “IHC 1055”, claimed
- Weight
- 9,458 lb
- 3-point lift
- 9,535 lb
- Hyd. flow
- 10.5 gpm
- Top speed
- 15.5–18.6 mph
International Harvester 1055 specs: key facts
The International Harvester 1055 was built from 1977 to 1982.
The International Harvester 1055 has a claimed engine power (gross or net not stated) of 74 kW (99 hp); it has no measured PTO figure.
The International Harvester 1055 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
The International Harvester 1055 has a IH D-358 engine, a 6-cylinder 5.87 L diesel unit.Source 2
The International Harvester 1055 weighs 4,290 kg (9,458 lb) unladen.
The International Harvester 1055 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the International Harvester 1055 lifts 4,325 kg (9,535 lb) at the lower-link ends.
The hydraulic pump of the International Harvester 1055 delivers 39.9 L/min (10.5 gpm).
Source · Traktorenlexikon, “IHC 1055”
How much horsepower does a 1055 have?
The only figure for the 1055 is 99 hp (74 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “IHC 1055”
What engine is in a 1055?
A 1055 has an IH D-358, a 6-cylinder 5.87 L diesel engine.
| Make & model | IH D-358Source 2 |
|---|---|
| Cylinders | 6, liquid-cooledSource 2 |
| Displacement | 358.0 ci · 5.87 LSource 2 |
| Max torque | 281 lb·ft · 381 N·m @ 1,301 rpm |
| Injection | Direct injection method |
Source · Traktorenlexikon, “IHC 1055”
How much will a 1055 lift, and what is its hydraulic flow?
A 1055 lifts 9,535 lb (4,325 kg) at the lower-link ends of its Category 2 three-point hitch.
| Pump flow | 10.5 gpm · 39.9 L/min |
|---|---|
| Pressure | 2,466 psi · 170 bar |
| Hitch category | Category 2 |
| Lift at ends | 9,535 lb · 4,325 kg |
| Rear PTO | engine-driven, 540/1000 rpm @ 1,920 engine rpm |
Source · Traktorenlexikon, “IHC 1055”
What transmission does a 1055 have?
Transmission specifications for the 1055 are below.
| Clutch | Dry double clutch by Fichtel & Sachs |
|---|---|
| Top speed | 15.5–18.6 mph · 25–30 km/h |
Source · Traktorenlexikon, “IHC 1055”
How much does a 1055 weigh?
A 1055 weighs 9,458 lb (4,290 kg) unladen.
| Unladen weight | 9,458 lb · 4,290 kgtwo-wheel-drive version |
|---|---|
| Maximum front axle load | 6,305 lb · 2,860 kg |
| Maximum rear axle load | 11,971 lb · 5,430 kg |
| Wheelbase | 103.4 in · 2,626 mmtwo-wheel-drive version |
| Length | 165.1 in · 4,194 mmtwo-wheel-drive version |
| Width | 80.7 in · 2,049 mmtwo-wheel-drive version |
| Height | 104.3 in · 2,649 mm |
| Ground clearance | 20.3 in · 516 mmtwo-wheel-drive version |
| Front track | 60.2–75.2 in · 1,530–1,910 mmtwo-wheel-drive version |
| Rear track | 67.1–86.8 in · 1,704–2,204 mm |
| Turning radius, braked | 14.4 ft · 4.40 mtwo-wheel-drive version |
Source · Traktorenlexikon, “IHC 1055”
Which tractors compare with a 1055?
Within 10% of its 99 hp of claimed engine power, the same type, and first built within 15 years of it.
- Deutz-Fahr AgroPrima 6.0699 hp engine, claimed · 1991–1995Side by side with the 1055 →
- Fiat 1000 (DT)98.7 hp engine, claimed · 1972–1976Side by side with the 1055 →
- John Deere 402098.7 hp engine, claimed · 1965–1972Side by side with the 1055 →
- Renault 110-54 TX98.7 hp engine, claimed · 1989–1990Side by side with the 1055 →
- Deutz-Fahr AgroXtra 6.0798.7 hp engine, claimed · 1991–1995Side by side with the 1055 →
- Renault 106-54 TL98.7 hp engine, claimed · 1991–2000Side by side with the 1055 →
Everything else people ask
Is a 1055 two-wheel drive or four-wheel drive?
The International Harvester 1055 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
What PTO does a 1055 have?
A 1055 has a 540/1000 rpm rear PTO.
What serial numbers does a 1055 carry?
The source prints serial numbers DO3 0811 D 001000 to DO3 0811 D 005604. It does not say whether that is the tractor’s or the engine’s number, and we never work out a year from a serial number.
Where this page comes from
Compiled from Traktorenlexikon, “IHC 1055 XL”; and Traktorenlexikon, “IHC 1055”.
