- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: High-power
- No lab test on file
- 1952–1955
- 379 built
WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

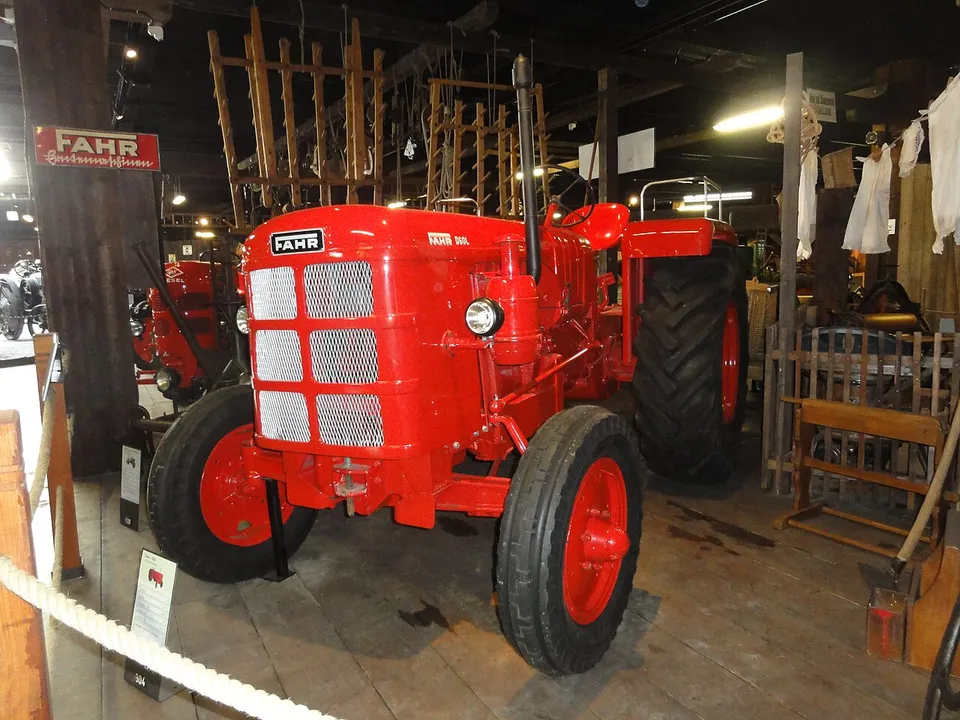

Fahr D 60L specs: hp, weight, years
KHD F4L 514 four-cylinder diesel. The manufacturer claimed 59.3 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
59.3 hp
44.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fahr D 60 L”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 7,628 lb
- Hyd. flow
- 4.9 gpm
- Top speed
- 20.1 mph
Fahr D 60L specs: key facts
The Fahr D 60L was built from 1952 to 1955.
The Fahr D 60L has a claimed engine power (gross or net not stated) of 44.2 kW (59.3 hp); it has no measured PTO figure.
The Fahr D 60L is two-wheel drive (2WD).
The Fahr D 60L has a KHD F4L 514 engine, a 4-cylinder 5.32 L diesel unit.Source 1
The Fahr D 60L weighs 3,460 kg (7,628 lb) unladen.
The Fahr D 60L has a dependent rear PTO running at 540 rpm.
The hydraulic pump of the Fahr D 60L delivers 18.5 L/min (4.9 gpm).
Source · Traktorenlexikon, “Fahr D 60 L”
How does the D 60L compare with its class?
- Limitation:
A hydraulic pump flow of 18.5 L/min is low for its class — 45% below the median of 33.9 L/min across the 302 machines within 10% of its power that hold this figure.
- Strength:
A maximum engine torque of 273 N·m is high for its class — 31% above the median of 208 N·m across the 294 machines within 10% of its power that hold this figure.
- Limitation:
Five forward gears is low for its class — 50% below the median of 10 across the 356 machines within 10% of its power that hold this figure.
- Worth knowing:
An unladen mass of 3,460 kg is high for its class — 32% above the median of 2,620 kg across the 359 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 359 comparable records. How we work this out
.jpg){kind=link}
How much horsepower does a D 60L have?
The only figure for the D 60L is 59.3 hp (44.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fahr D 60 L”
What engine is in a D 60L?
A D 60L has a KHD F4L 514, a 4-cylinder 5.32 L diesel engine.
| Make & model | KHD F4L 514 |
|---|---|
| Cylinders | 4, air-cooledSource 2 |
| Displacement | 324.6 ci · 5.32 L |
| Max torque | 201 lb·ft · 273 N·m @ 1,340 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Fahr D 55 L”
How much will a D 60L lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the D 60L are below.
| Pump flow | 4.9 gpm · 18.5 L/min |
|---|---|
| Pressure | 1,707 psi · 118 bar |
| Rear PTO | Dependent, transmission-driven, 540 rpm |
| PTO shaft | 29 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Fahr D 60 L”
What transmission does a D 60L have?
Transmission specifications for the D 60L are below.
| Clutch | Pedal operated dry Fichtel and Sachs single plate clutch |
|---|---|
| Steering | ZF single wheel steering |
| Top speed | 20.1 mph · 32.3 km/h |
Source · Traktorenlexikon, “Fahr D 60 L”
How much does a D 60L weigh?
A D 60L weighs 7,628 lb (3,460 kg) unladen.
| Unladen weight | 7,628 lb · 3,460 kg |
|---|---|
| Maximum permissible mass | 8,818 lb · 4,000 kg |
| Maximum front axle load | 3,086 lb · 1,400 kg |
| Maximum rear axle load | 5,952 lb · 2,700 kg |
| Wheelbase | 90.6 in · 2,300 mm |
| Length | 153.1 in · 3,890 mm |
| Width | 78.2 in · 1,987 mm |
| Height | 61.2 in · 1,555 mm |
| Ground clearance | 15.7 in · 400 mm |
| Front track | 59.1 in · 1,500 mmWikibooks gives one track for both axles |
| Rear track | 59.1 in · 1,500 mmWikibooks gives one track for both axles |
| Turning radius, braked | 12.6 ft · 3.85 m |
Source · Traktorenlexikon, “Fahr D 60 L”
What oil does a D 60L take, and how much?
A D 60L engine takes 11.6 qt (11 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11 LSource: Traktorenlexikon, “Fahr D 60 L” · single source, not independently verified |
| Transmission | 0.8 qt · 1 LSource: Traktorenlexikon, “Fahr D 60 L” · single source, not independently verified |
| Hydraulic | 3.7 qt · 3.5 LSource: Traktorenlexikon, “Fahr D 60 L” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a D 60L?
Within 10% of its 57 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- J.I. Case 74157.1 hp PTO, claimed · 1960–1969Side by side with the D 60L →
- Hürlimann D-60057.7 hp PTO, claimed · 1951–1954Side by side with the D 60L →
- Hürlimann D 200S56.4 hp PTO, claimed · 1966–1971Side by side with the D 60L →
- Hürlimann D-200 SA Synchromatic56.4 hp PTO, claimed · 1967–1971Side by side with the D 60L →
- Deutz F4L 514/456.2 hp PTO, claimed · 1951–1966Side by side with the D 60L →
- David Brown 1200 Selectmatic56.2 hp PTO, claimed · 1967–1971Side by side with the D 60L →
Common questions about the Fahr D 60L
Is a D 60L two-wheel drive or four-wheel drive?
The Fahr D 60L is two-wheel drive (2WD).
What PTO does a D 60L have?
A D 60L has a dependent 540 rpm rear PTO on a 29 x 34,9 x 8,7 mm shaft.
