- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1967
- 271 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

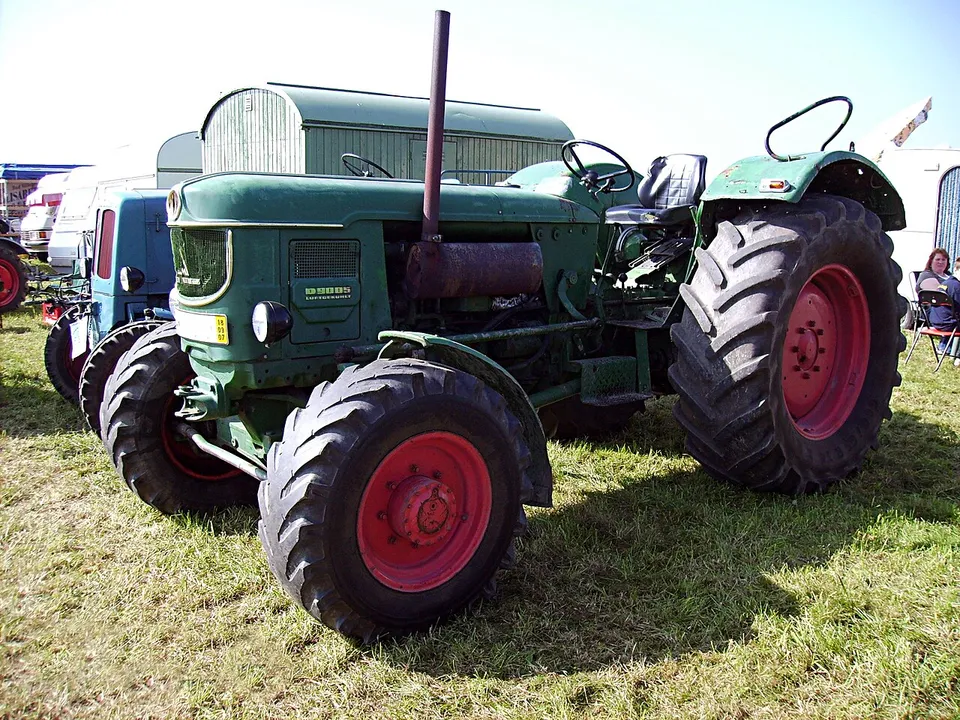

Deutz D 9005 Full specifications
KHD F6L 812 D six-cylinder diesel. The manufacturer claimed 83.4 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
83.4 hp
62.2 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz D 9005”, claimed
- Weight
- 8,102 lb
- Hyd. flow
- 9.0 gpm
- Top speed
- 16.8 mph
Deutz D 9005 specs: key facts
The Deutz D 9005 was built in 1967.
The Deutz D 9005 has a claimed engine power (gross or net not stated) of 62.2 kW (83.4 hp); it has no measured PTO figure.
The Deutz D 9005 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
The Deutz D 9005 has a KHD F6L 812 D engine, a 6-cylinder 5.10 L diesel unit.
The Deutz D 9005 weighs 3,675 kg (8,102 lb) unladen.
The Deutz D 9005 has an independent rear PTO running at 540/1000 rpm.
The hydraulic pump of the Deutz D 9005 delivers 34.0 L/min (9.0 gpm).
Source · Traktorenlexikon, “Deutz D 9005”
How much horsepower does a D 9005 have?
The only figure for the D 9005 is 83.4 hp (62.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz D 9005”
What engine is in a D 9005?
A D 9005 has a KHD F6L 812 D, a 6-cylinder 5.10 L diesel engine.
| Make & model | KHD F6L 812 D |
|---|---|
| Cylinders | 6, air-cooled |
| Displacement | 311.5 ci · 5.10 L |
| Max torque | 210 lb·ft · 284 N·m @ 1,600 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Deutz D 9005”
How much will a D 9005 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the D 9005 are below.
| Pump flow | 9.0 gpm · 34.0 L/min |
|---|---|
| Pressure | 2,538 psi · 175 bar |
| Hitch category | Category 2 |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 2,125 engine rpm |
| PTO shaft | 29 x 34,9 x 8,7 mm |
Source · Traktorenlexikon, “Deutz D 9005”
What transmission does a D 9005 have?
Transmission specifications for the D 9005 are below.
| Clutch | dry double clutch operated by two-stage pedal |
|---|---|
| Brakes | pedal-operated internal hydraulic drum brake acting through planetary drive on rear wheels |
| Steering | ZF spindle hydroblock steering |
| Top speed | 16.8 mph · 27 km/h |
Source · Traktorenlexikon, “Deutz D 9005”
How much does a D 9005 weigh?
A D 9005 weighs 8,102 lb (3,675 kg) unladen.
| Unladen weight | 8,102 lb · 3,675 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 14,330 lb · 6,500 kg |
| Maximum front axle load | 4,685 lb · 2,125 kg |
| Maximum rear axle load | 9,921 lb · 4,500 kg |
| Wheelbase | 100.4 in · 2,550 mmtwo-wheel-drive version |
| Length | 164.0 in · 4,165 mm |
| Width | 85.0 in · 2,160 mm |
| Height | 73.8 in · 1,875 mm |
| Ground clearance | 22.2 in · 565 mmtwo-wheel-drive version |
| Front track | 55.9–79.5 in · 1,420–2,020 mmtwo-wheel-drive version |
| Rear track | 64.7–74.8 in · 1,644–1,900 mm |
| Turning radius, braked | 13.1 ft · 4.00 m |
Source · Traktorenlexikon, “Deutz D 9005”
Which tractors compare with a D 9005?
Within 10% of its 83.4 hp of claimed engine power, the same type, and first built within 15 years of it.
- Fendt Favorit 610 S83.4 hp engine, claimed · 1972–1976Side by side with the D 9005 →
- J.I. Case 94083.0 hp engine, claimed · 1962–1969Side by side with the D 9005 →
- J.I. Case 941 GP83.0 hp engine, claimed · 1959–1969Side by side with the D 9005 →
- Steyr 988 (a)83.9 hp engine, claimed · 1977–1979Side by side with the D 9005 →
- Fiat 80-R82.9 hp engine, claimed · 1961–1967Side by side with the D 9005 →
- WHITE 2-8584.9 hp engine, claimed · 1976–1982Side by side with the D 9005 →
Everything else people ask
Is a D 9005 two-wheel drive or four-wheel drive?
The Deutz D 9005 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
What PTO does a D 9005 have?
A D 9005 has a independent 540/1000 rpm rear PTO on a 29 x 34,9 x 8,7 mm shaft.
