- WhichTractor size: Standard-size
- Lab tested ×1
- 2008–2013
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

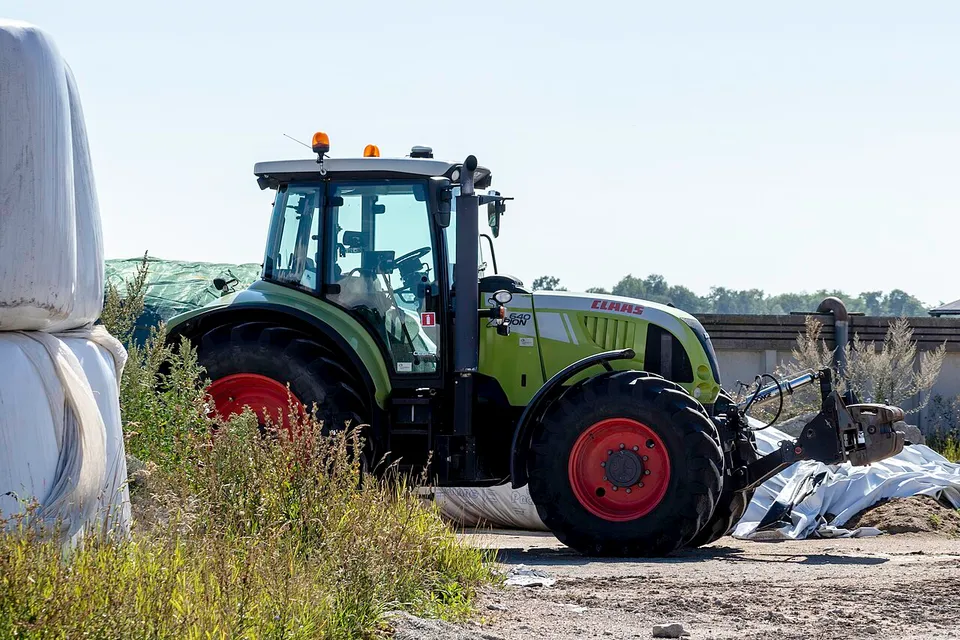

Claas Arion 640 Full specifications
John Deere 6068HF285H. The manufacturer claimed 153 horsepower. The only laboratory test on record is of one version: OECD Test 2715 measured 143.9 hp at the PTO of the Arion 640 C.
Engine power, claimed · gross or net not stated
153 hp
114 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Claas Arion 640”, claimed
- Weight
- 13,801 lb
- Hyd. flow
- 29.1 gpm
- Top speed
- 24.9–31.1 mph
Claas Arion 640 specs: key facts
The Claas Arion 640 was built from 2008 to 2013.
Only one version of the Claas Arion 640 has a laboratory test on record: the Arion 640 C produced 107.3 kW (143.9 hp) at the PTO, measured on OECD Test 2715.Source 1
The Claas Arion 640 has a claimed engine power (gross or net not stated) of 114 kW (153 hp); it has no measured PTO figure.
The Claas Arion 640 is four-wheel drive (4WD).Source 2
The Claas Arion 640 weighs 6,260 kg (13,801 lb) unladen.
The Claas Arion 640 has a rear PTO running at 540/1000 rpm.Source 2
The hydraulic pump of the Claas Arion 640 delivers 110 L/min (29.1 gpm).
Source · Traktorenlexikon, “Claas Arion 640”
How much horsepower does an Arion 640 have?
The only laboratory test on record is of one version. OECD Test 2715 measured 143.9 hp at the PTO of the Arion 640 C. For the Arion 640 as a whole the figure is the 153 hp claimed for the engine, which is not power at the shaft.
Sources · Traktorenlexikon, “Claas Arion 640”; OECD test report 2715, 2012
How much will an Arion 640 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the Arion 640 are below.
| System | Open centre, load sensingSource 1On record for 1 of 2 configurations |
|---|---|
| Pump flow | 29.1 gpm · 110 L/min |
| Pressure | 2,901 psi · 200 bar |
| PTO shaft | 34.9 mm, 6 splines / 34.9 mm, 21 splinesSource 1On record for 1 of 2 configurations |
Source · Traktorenlexikon, “Claas Arion 640”
What transmission does an Arion 640 have?
Transmission specifications for the Arion 640 are below.
| Top speed | 24.9–31.1 mph · 40–50 km/hthe article lists alternatives |
|---|
Source · Traktorenlexikon, “Claas Arion 640”
How much does an Arion 640 weigh?
An Arion 640 weighs 13,801 lb (6,260 kg) unladen.
| Unladen weight | 13,801 lb · 6,260 kg |
|---|---|
| Wheelbase | 111.0 in · 2,820 mm |
| Length | 203.0 in · 5,155 mm |
| Width | 100.4 in · 2,550 mm |
| Height | 118.4 in · 3,007 mm |
| Ground clearance | 19.7 in · 501 mm |
| Front track | 80.7 in · 2,050 mmWikibooks gives one track for both axles |
| Rear track | 80.7 in · 2,050 mmWikibooks gives one track for both axles |
Source · Traktorenlexikon, “Claas Arion 640”
How much fuel does an Arion 640 burn per hour?
Measured on OECD Test 2715 (tested as the Arion 640 C), at each condition the laboratory recorded.
Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).
| Test condition | Fuel per hour |
|---|---|
| Maximum PTO powerPTO 107.3 kW (143.9 hp) at 985 rpm | 33.98 L/h 8.98 gal/h |
| Rated engine speedPTO 95.4 kW (127.9 hp) at 1,085 rpm | 32.18 L/h 8.50 gal/h |
| Standard PTO speedPTO 105.8 kW (141.9 hp) at 1,000 rpm | 33.71 L/h 8.91 gal/h |
| 75% load, 50% load | Not on record for this test |
Source · OECD Test 2715
Which tractors compare with an Arion 640?
Within 10% of its 153 hp of claimed engine power, the same type, and first built within 15 years of it.
- New Holland TM 155153 hp engine, claimed · 2002–2007Side by side with the Arion 640 →
- Massey Ferguson MF 8130 A153.0 hp engine, claimed · 1995–1999Side by side with the Arion 640 →
- Renault Temis 650151.9 hp engine, claimed · 1999–2005Side by side with the Arion 640 →
- Renault Ares 715 RZ153.9 hp engine, claimed · 2000–2002Side by side with the Arion 640 →
- AGCO-ALLIS 9455154.9 hp engine, claimed · 1994–1999Side by side with the Arion 640 →
- AGCO-ALLIS 9650154.9 hp engine, claimed · 1994–1995Side by side with the Arion 640 →
Everything else people ask
Is an Arion 640 two-wheel drive or four-wheel drive?
The Claas Arion 640 is four-wheel drive (4WD).
Where this page comes from
Compiled from OECD tractor test report 2715; and Traktorenlexikon, “Claas Arion 640”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- OECD Code 2 test report 2/2 715: CLAAS ARION 640 C — Licence not stated by the publisher; facts cited, OECD-2715 · published 2012-09-13 · retrieved 2026-09-14. OECD; testing station IRSTEA–Paris, France. Original document
- OECD Code 2 test report 2/2 715: CLAAS ARION 640 C — Licence not stated by the publisher; facts cited, OECD-2715 · published 2012-09-13 · retrieved 2026-09-14. OECD; testing station IRSTEA–Paris, France. Original document
- Traktorenlexikon: Claas Arion 640 — CC BY-SA 4.0, WIKIBOOKS-TL-59143 · revision 1008319. Wikibooks contributors (Traktorenlexikon). Original document
