- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1994–1997
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

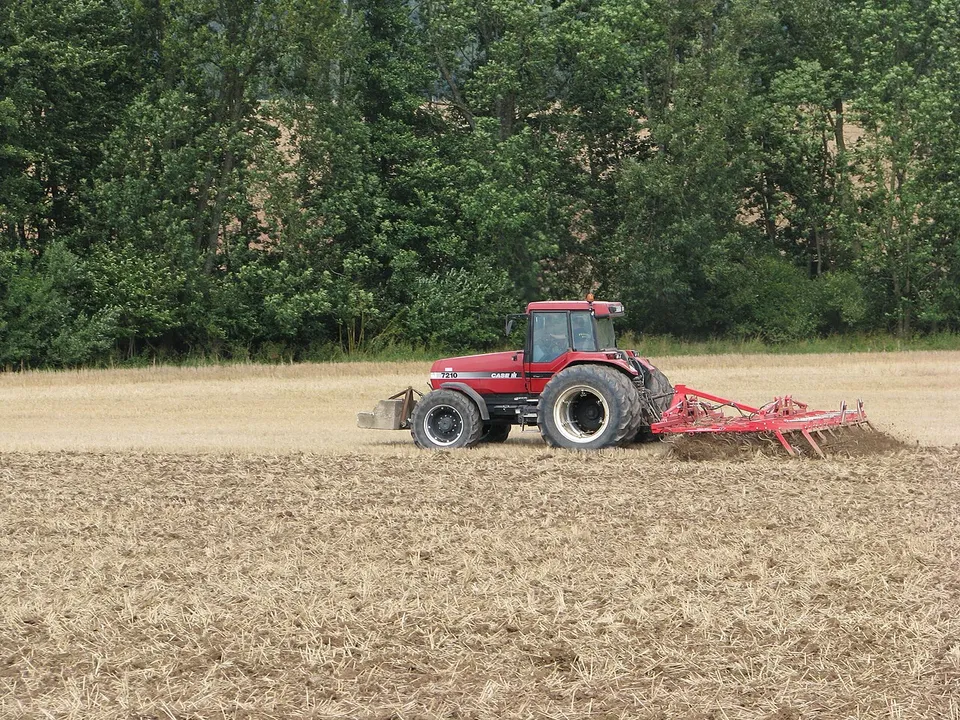

Case-IH Magnum 7210 specs: hp, weight, years
CUMMINS 6 T-830 six-cylinder diesel. The manufacturer claimed 153 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
153 hp
114 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Case-IH 7210”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 16,590 lb
- 3-point lift
- 15,873 lb
- Hyd. flow
- 29.1 gpm
- Top speed
- 18.6–24.9 mph
Case-IH Magnum 7210 specs: key facts
The Case-IH Magnum 7210 was built from 1994 to 1997.
The Case-IH Magnum 7210 has a claimed engine power (gross or net not stated) of 114 kW (153 hp); it has no measured PTO figure.
The Case-IH Magnum 7210 is four-wheel drive (4WD).
The Case-IH Magnum 7210 has a CUMMINS 6 T-830 engine, a 6-cylinder 8.27 L diesel unit.Source 1
The Case-IH Magnum 7210 weighs 7,525 kg (16,590 lb) unladen.
The Case-IH Magnum 7210 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Case-IH Magnum 7210 lifts 7,200 kg (15,873 lb) at the lower-link ends.
The hydraulic pump of the Case-IH Magnum 7210 delivers 110 L/min (29.1 gpm).
Source · Traktorenlexikon, “Case-IH 7210”
How does the Magnum 7210 compare with its class?
- Worth knowing:
An unladen mass of 7,525 kg is high for its class — 20% above the median of 6,270 kg across the 212 machines within 10% of its power that hold this figure.
- Limitation:
The power figure is a manufacturer claim, not a measurement. No laboratory test report exists for this machine. Of the 212 tractors within 10% of its power, 11% carry one.
Derived by WhichTractor from 212 comparable records. How we work this out
.JPG){kind=link}
How much horsepower does a Magnum 7210 have?
The only figure for the Magnum 7210 is 153 hp (114 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Case-IH 7210”
What engine is in a Magnum 7210?
A Magnum 7210 has a CUMMINS 6 T-830, a 6-cylinder 8.27 L diesel engine.
| Make & model | CUMMINS 6 T-830 |
|---|---|
| Cylinders | 6, liquid-cooledSource 2 |
| Displacement | 504.5 ci · 8.27 L |
| Max torque | 471 lb·ft · 638 N·m @ 1,100 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Case-IH 7110”
How much will a Magnum 7210 lift, and what is its hydraulic flow?
A Magnum 7210 lifts 15,873 lb (7,200 kg) at the lower-link ends of its Category 3 three-point hitch.
| Pump flow | 29.1 gpm · 110 L/min |
|---|---|
| Hitch category | Category 3 |
| Lift at ends | 15,873 lb · 7,200 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 2,229 engine rpmEngages under load |
| PTO shaft | 1 3/8"- 6 splines or 1 3/8"- 21 part |
Source · Traktorenlexikon, “Case-IH 7210”
What transmission does a Magnum 7210 have?
Transmission specifications for the Magnum 7210 are below.
| Clutch | Oil-immersed CASE-IH multi-plate clutch, nine plates with 228.5 mm diameter |
|---|---|
| Brakes | Pedal-operated hydraulic full disc brake, designed as individual wheel brake |
| Steering | Hydrostatic TRW steering, type: HGE-20 |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Case-IH 7210”
How much does a Magnum 7210 weigh?
A Magnum 7210 weighs 16,590 lb (7,525 kg) unladen.
| Unladen weight | 16,590 lb · 7,525 kg |
|---|---|
| Maximum permissible mass | 24,912 lb · 11,300 kg |
| Wheelbase | 118.3 in · 3,006 mm |
| Length | 208.3 in · 5,290 mm |
| Width | 112.0–120.8 in · 2,845–3,069 mm |
| Height | 117.4 in · 2,982 mm |
| Ground clearance | 15.9 in · 404 mm |
| Front track | 60.1–94.8 in · 1,526–2,407 mm |
| Rear track | 60.0–99.1 in · 1,524–2,518 mm |
| Turning radius, braked | 15.6 ft · 4.75 m |
Source · Traktorenlexikon, “Case-IH 7210”
What oil does a Magnum 7210 take, and how much?
A Magnum 7210 engine takes 21.0 qt (19.9 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 21.0 qt · 19.9 LSource: Traktorenlexikon, “Case-IH 7210” · single source, not independently verified |
| Transmission & hydraulic | 201.8 qt · 191.0 LSource: Traktorenlexikon, “Case-IH 7210” · single source, not independently verified |
| Front axle | 12.0 qt · 11.4 LSource: Traktorenlexikon, “Case-IH 7210” · single source, not independently verified |
| Cooling system | 30.2 qt · 28.6 LSource: Traktorenlexikon, “Case-IH 7210” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a Magnum 7210?
Within 10% of its 153 hp of claimed engine power, the same type, and first built within 15 years of it.
- URSUS 1634153 hp engine, claimed · 1990–2009Side by side with the Magnum 7210 →
- Case-IH Magnum 7110153 hp engine, claimed · 1988–1993Side by side with the Magnum 7210 →
- Case-IH MXM 155 Maxxum153 hp engine, claimed · 2002–2007Side by side with the Magnum 7210 →
- New Holland TM 155153 hp engine, claimed · 2002–2007Side by side with the Magnum 7210 →
- Lamborghini R-1556 DT153 hp engine, claimed · 1981–1984Side by side with the Magnum 7210 →
- Claas Arion 640153 hp engine, claimed · 2008–2013Side by side with the Magnum 7210 →
Common questions about the Case-IH Magnum 7210
Is a Magnum 7210 two-wheel drive or four-wheel drive?
The Case-IH Magnum 7210 is four-wheel drive (4WD).
What PTO does a Magnum 7210 have?
A Magnum 7210 has a independent 540/1000 rpm rear PTO on a 1 3/8"- 6 splines or 1 3/8"- 21 part shaft.
