- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1967–1987
It sits on the compact/utility boundary, so either size is a fair description. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

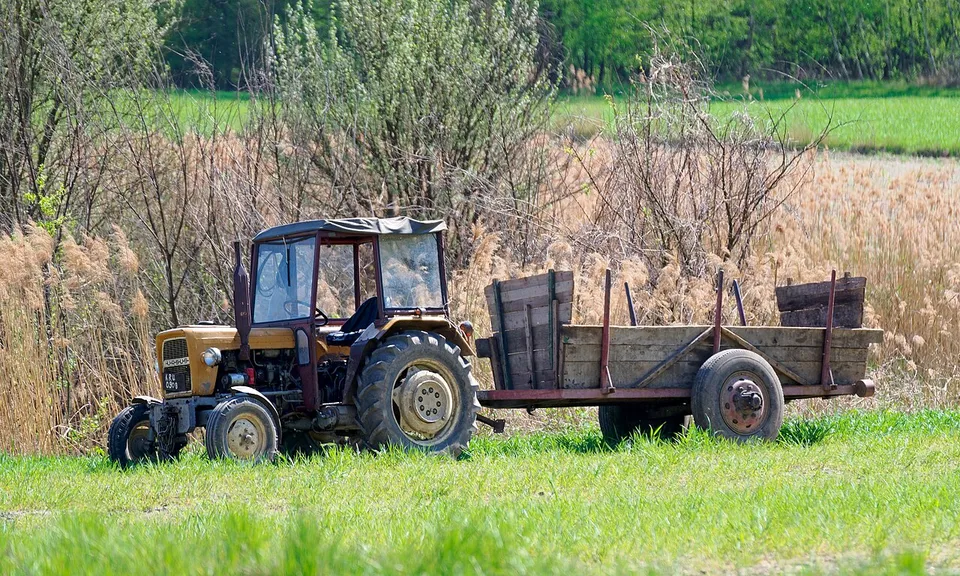

URSUS C-330 specs: hp, weight, years
URSUS S-312 C two-cylinder diesel. The manufacturer claimed 30.0 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
30.0 hp
22.4 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Ursus C-330”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 3,693 lb
- Hyd. flow
- 5.3 gpm
- Top speed
- 14.9 mph
URSUS C-330 specs: key facts
The URSUS C-330 was built from 1967 to 1987.
The URSUS C-330 has a claimed engine power (gross or net not stated) of 22.4 kW (30.0 hp); it has no measured PTO figure.
The URSUS C-330 is two-wheel drive (2WD).
The URSUS C-330 has a URSUS S-312 C engine, a 2-cylinder 1.96 L diesel unit.Source 2
The URSUS C-330 weighs 1,675 kg (3,693 lb) unladen.
The URSUS C-330 has a rear PTO running at 540 rpm.
The hydraulic pump of the URSUS C-330 delivers 20.0 L/min (5.3 gpm).
Source · Traktorenlexikon, “Ursus C-330”
How much horsepower does a C-330 have?
The only figure for the C-330 is 30.0 hp (22.4 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Ursus C-330”
What engine is in a C-330?
A C-330 has a URSUS S-312 C, a 2-cylinder 1.96 L diesel engine.
| Make & model | URSUS S-312 CSource 2 |
|---|---|
| Cylinders | 2, liquid-cooledSource 2 |
| Displacement | 119.7 ci · 1.96 LSource 2 |
| Max torque | 74 lb·ft · 100 N·m @ 1,800 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Ursus C-330”
How much will a C-330 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the C-330 are below.
| Pump flow | 5.3 gpm · 20.0 L/min |
|---|---|
| Hitch category | Category 2 |
| Rear PTO | 540 rpm @ 2,159 engine rpm |
Source · Traktorenlexikon, “Ursus C-330”
What transmission does a C-330 have?
Transmission specifications for the C-330 are below.
| Top speed | 14.9 mph · 24 km/h |
|---|
Source · Traktorenlexikon, “Ursus C-330”
How much does a C-330 weigh?
A C-330 weighs 3,693 lb (1,675 kg) unladen.
| Unladen weight | 3,693 lb · 1,675 kg |
|---|---|
| Maximum permissible mass | 4,145 lb · 1,880 kg |
| Maximum front axle load | 1,493 lb · 677 kg |
| Maximum rear axle load | 2,698 lb · 1,224 kg |
| Wheelbase | 73.6 in · 1,870 mm |
| Length | 121.3 in · 3,080 mm |
| Width | 58.7 in · 1,490 mm |
| Height | 85.8 in · 2,180 mm |
| Ground clearance | 15.7 in · 400 mm |
| Front track | 53.1–65.0 in · 1,350–1,650 mm |
| Rear track | 49.2–72.8 in · 1,250–1,850 mm |
| Turning radius, braked | 10.6 ft · 3.22 m |
Source · Traktorenlexikon, “Ursus C-330”
What oil does a C-330 take, and how much?
A C-330 engine takes 6.6 qt (6.2 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 6.6 qt · 6.2 LSource: Traktorenlexikon, “Ursus C-330” · single source, not independently verified |
| Transmission | 1.6 qt · 1.5 LSource: Traktorenlexikon, “Ursus C-330” · single source, not independently verified |
| Hydraulic | 6.3 qt · 6.0 LSource: Traktorenlexikon, “Ursus C-330” · single source, not independently verified |
| Transmission & hydraulic | 24.3 qt · 23.0 LSource: Traktorenlexikon, “Ursus C-330” · single source, not independently verified |
| Cooling system | 10.6 qt · 10.0 LSource: Traktorenlexikon, “Ursus C-330” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a C-330?
Within 10% of its 28.6 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- URSUS C-33528.6 hp PTO, claimed · 1967–1987Side by side with the C-330 →
- BOLINDER-MUNKTELL 230 Victor28.6 hp PTO, claimed · 1955–1961Side by side with the C-330 →
- Volvo T-23028.6 hp PTO, claimed · 1955–1961Side by side with the C-330 →
- International Harvester DGD 428.8 hp PTO, claimed · 1953–1956Side by side with the C-330 →
- Renault Super 528.2 hp PTO, claimed · 1962–1965Side by side with the C-330 →
- OLIVER 50028.2 hp PTO, claimed · 1961–1963Side by side with the C-330 →
Common questions about the URSUS C-330
Is a C-330 two-wheel drive or four-wheel drive?
The URSUS C-330 is two-wheel drive (2WD).
What PTO does a C-330 have?
A C-330 has a 540 rpm rear PTO.
Sources and how this page was built
Compiled from Wikipedia (pl): Ursus C-330 (open data); Traktorenlexikon, “Ursus C-335”; and Traktorenlexikon, “Ursus C-330”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Ursus C-330 — CC BY-SA 4.0, WIKIBOOKS-TL-120019 · revision 1044554. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Ursus C-335 — CC BY-SA 4.0, WIKIBOOKS-TL-105703 · revision 1044546. Wikibooks contributors (Traktorenlexikon). Original document
