- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1985–1987
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

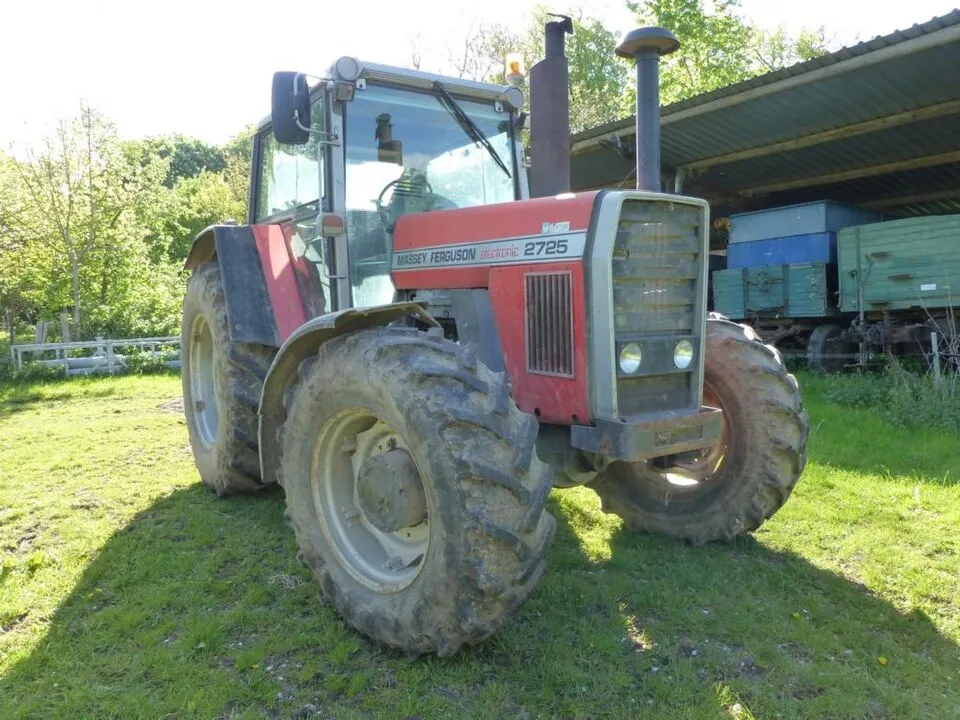

Massey Ferguson 2725 specs: hp, weight, years
Perkins AT 6.354-4 CC six-cylinder diesel. The manufacturer claimed 145.1 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
145.1 hp
108.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Massey Ferguson MF 2725”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 13,448 lb
- 3-point lift
- 15,917 lb
- Top speed
- 21.7 mph
Massey Ferguson 2725 specs: key facts
The Massey Ferguson 2725 was built from 1985 to 1987.
The Massey Ferguson 2725 has a claimed engine power (gross or net not stated) of 108.2 kW (145.1 hp); it has no measured PTO figure.
The Massey Ferguson 2725 is four-wheel drive (4WD).
The Massey Ferguson 2725 has a Perkins AT 6.354-4 CC engine, a 6-cylinder 5.80 L diesel unit.Source 1
The Massey Ferguson 2725 weighs 6,100 kg (13,448 lb) unladen.
The Massey Ferguson 2725 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Massey Ferguson 2725 lifts 7,220 kg (15,917 lb) at the lower-link ends.
Source · Traktorenlexikon, “Massey Ferguson MF 2725”
How much horsepower does a 2725 have?
The only figure for the 2725 is 145.1 hp (108.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Massey Ferguson MF 2725”
What engine is in a 2725?
A 2725 has a Perkins AT 6.354-4 CC, a 6-cylinder 5.80 L diesel engine.
| Make & model | Perkins AT 6.354-4 CC |
|---|---|
| Cylinders | 6, liquid-cooledSource 2 |
| Displacement | 353.8 ci · 5.80 L |
| Max torque | 364 lb·ft · 493 N·m @ 1,600 rpmSource 2 |
| Injection | Direct injection with CAV distributor injection pump and multi-hole injection nozzlesSource 2 |
Source · Traktorenlexikon, “Massey Ferguson MF 2720”
How much will a 2725 lift?
A 2725 lifts 15,917 lb (7,220 kg) at the lower-link ends.
| Lift at ends | 15,917 lb · 7,220 kg |
|---|---|
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 1,982 engine rpmEngages under load |
| PTO shaft | 1 3/8"- 6 splines (Form-1) |
Source · Traktorenlexikon, “Massey Ferguson MF 2725”
What transmission does a 2725 have?
Transmission specifications for the 2725 are below.
| Clutch | Pedal-operated, dry and air-cooled single-disc clutch |
|---|---|
| Steering | Hydrostatic Danfoss steering with height and tilt adjustable steering wheel |
| Top speed | 21.7 mph · 35 km/h |
Source · Traktorenlexikon, “Massey Ferguson MF 2725”
How much does a 2725 weigh?
A 2725 weighs 13,448 lb (6,100 kg) unladen.
| Unladen weight | 13,448 lb · 6,100 kg |
|---|---|
| Maximum permissible mass | 16,535 lb · 7,500 kg |
| Maximum front axle load | 5,732 lb · 2,600 kg |
| Maximum rear axle load | 11,905 lb · 5,400 kg |
| Wheelbase | 107.3 in · 2,726 mm |
| Length | 200.0 in · 5,080 mm |
| Width | 95.3 in · 2,420 mm |
| Height | 116.5 in · 2,960 mm |
| Ground clearance | 19.3 in · 490 mm |
| Front track | 69.3–81.5 in · 1,760–2,070 mm |
| Rear track | 72.0–79.5 in · 1,830–2,020 mm |
| Turning radius, braked | 16.1 ft · 4.90 m |
Source · Traktorenlexikon, “Massey Ferguson MF 2725”
What oil does a 2725 take, and how much?
A 2725 engine takes 20.1 qt (19.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 20.1 qt · 19.0 LSource: Traktorenlexikon, “Massey Ferguson MF 2725” · single source, not independently verified |
| Transmission | 89.8 qt · 85.0 LSource: Traktorenlexikon, “Massey Ferguson MF 2725” · single source, not independently verified |
| Front axle | 18.6 qt · 17.6 LSource: Traktorenlexikon, “Massey Ferguson MF 2725” · single source, not independently verified |
| Cooling system | 28.5 qt · 27.0 LSource: Traktorenlexikon, “Massey Ferguson MF 2725” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 2725?
Within 10% of its 145.1 hp of claimed engine power, the same type, and first built within 15 years of it.
- WHITE 2-150145.0 hp engine, claimed · 1974–1976Side by side with the 2725 →
- AGCO-ALLIS 9745145.0 hp engine, claimed · 1998–2001Side by side with the 2725 →
- WHITE 8410145.0 hp engine, claimed · 1998–2001Side by side with the 2725 →
- DEUTZ-ALLIS 7145144.0 hp engine, claimed · 1987–1989Side by side with the 2725 →
- Ford TW-20 (A)144.0 hp engine, claimed · 1979–1983Side by side with the 2725 →
- Ford 9700 (A)144.0 hp engine, claimed · 1976–1979Side by side with the 2725 →
Common questions about the Massey Ferguson 2725
Is a 2725 two-wheel drive or four-wheel drive?
The Massey Ferguson 2725 is four-wheel drive (4WD).
What PTO does a 2725 have?
A 2725 has a independent 540/1000 rpm rear PTO on a 1 3/8"- 6 splines (Form-1) shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Massey Ferguson MF 2720”; and Traktorenlexikon, “Massey Ferguson MF 2725”.
