  • Rigid chassis
  • WhichTractor size: Utility
  • No lab test on file
  • 1960–1963
  • 2,385 built

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

MAN Werk München 4P1 specs: hp, weight, years

MAN D 8613 M 1/2 three-cylinder diesel. The manufacturer claimed 34.3 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

34.3 hp

25.6 kW as stated by the source

No lab test on file

Claimed · standard not stated by the source

Source · Traktorenlexikon, “MAN 4P1”, claimed

This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.

Weight
4,233 lb
Top speed
12.4–17.6 mph

MAN Werk München 4P1 specs: key facts

  • The MAN Werk München 4P1 was built from 1960 to 1963.

  • The MAN Werk München 4P1 has a claimed engine power (gross or net not stated) of 25.6 kW (34.3 hp); it has no measured PTO figure.

  • The MAN Werk München 4P1 is four-wheel drive (4WD).

  • The MAN Werk München 4P1 has a MAN D 8613 M 1/2 engine, a 3-cylinder 1.92 L diesel unit.Source 1

  • The MAN Werk München 4P1 weighs 1,920 kg (4,233 lb) unladen.

  • The MAN Werk München 4P1 has a rear PTO running at 1520 rpm.

Source · Traktorenlexikon, “MAN 4P1”

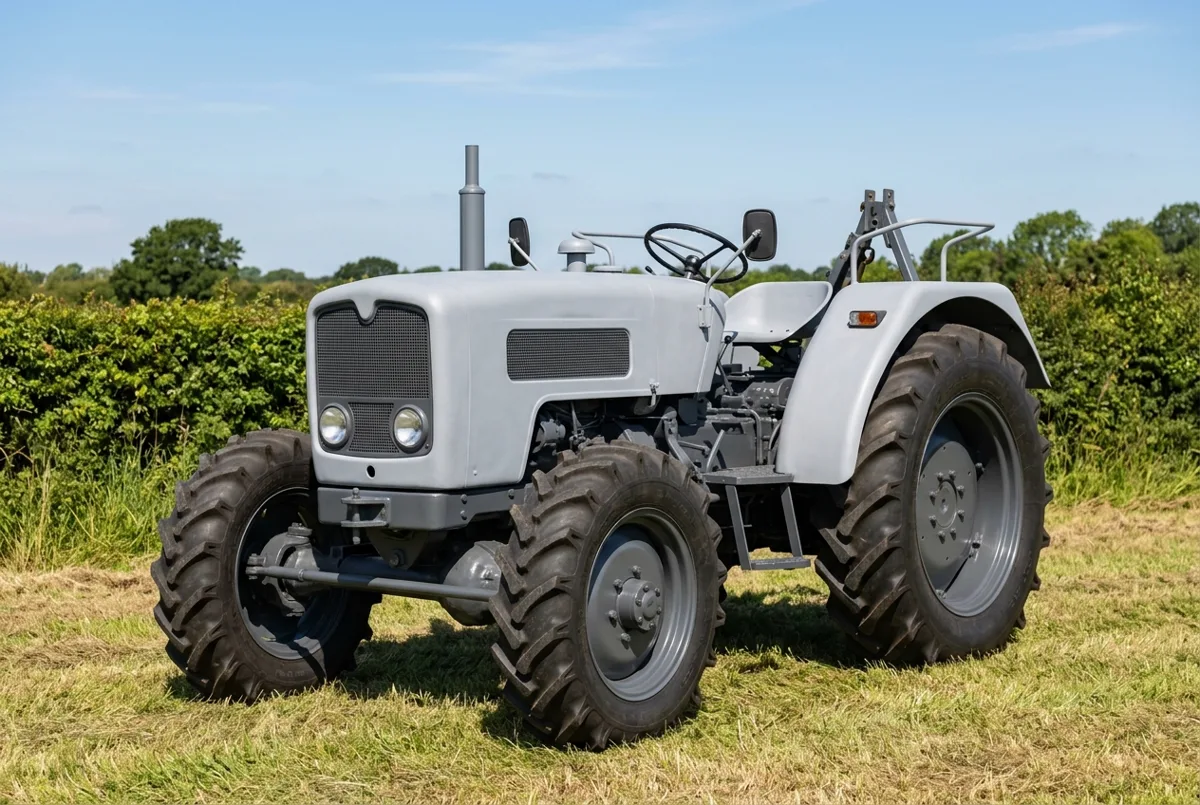

Illustration of the 1960–1963 MAN Werk München 4P1, a 34 hp farm tractor, colour not recorded — shown unpainted · operator station not recorded — shown as an open platform, a drawing generated from its specification record
Illustration — not a photograph · colour not recorded — shown unpainted · operator station not recorded — shown as an open platform

How much horsepower does a 4P1 have?

The only figure for the 4P1 is 34.3 hp (25.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
34.3 hp

Source · Traktorenlexikon, “MAN 4P1”

What engine is in a 4P1?

A 4P1 has an MAN D 8613 M 1/2, a 3-cylinder 1.92 L diesel engine.

Engine — 4P1 engine specifications
Make & modelMAN D 8613 M 1/2
Cylinders3, liquid-cooledSource 2
Displacement116.9 ci · 1.92 L
Electrical system12 VSource 2

Source · Traktorenlexikon, “MAN 2P1”

How much will a 4P1 lift?

Hydraulic and PTO specifications for the 4P1 are below.

Hydraulics & PTO — 4P1 hydraulics and PTO specifications
Hitch categoryCategory 1
Rear PTO1520 rpm
PTO shaft1 3/8"- 6 splines (Form-A)

Source · Traktorenlexikon, “MAN 4P1”

What transmission does a 4P1 have?

Transmission specifications for the 4P1 are below.

Transmission — 4P1 transmission specifications
BrakesTwo-shoe brake 180 x 50 Type 184 K Knott make
Top speed12.4–17.6 mph · 19.9–28.3 km/hthe article lists alternatives

Source · Traktorenlexikon, “MAN 4P1”

How much does a 4P1 weigh?

A 4P1 weighs 4,233 lb (1,920 kg) unladen.

Weights & dimensions — 4P1 weights and dimensions
Unladen weight4,233 lb · 1,920 kg
Maximum permissible mass6,173 lb · 2,800 kg
Maximum front axle load2,315 lb · 1,050 kg
Maximum rear axle load4,189 lb · 1,900 kg
Wheelbase77.6 in · 1,970 mm
Length131.7 in · 3,345 mm
Width65.7 in · 1,670 mm
Height59.8 in · 1,520 mm
Ground clearance11.0–15.7 in · 280–400 mm
Front track50.8–58.7 in · 1,290–1,490 mmthe article lists alternatives
Rear track50.4–57.9 in · 1,280–1,470 mmthe article lists alternatives
Turning radius, braked10.8 ft · 3.30 m

Source · Traktorenlexikon, “MAN 4P1”

What oil does a 4P1 take, and how much?

A 4P1 engine takes 6.3 qt (6 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

4P1 fluid capacities, grades and service intervals
SystemCapacity
Engine oil6.3 qt · 6 LSource: Traktorenlexikon, “MAN 4P1” · single source, not independently verified
Cooling system11.6 qt · 11 LSource: Traktorenlexikon, “MAN 4P1” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

Which tractors compare with a 4P1?

Within 10% of its 35 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.

Common questions about the MAN Werk München 4P1

Is a 4P1 two-wheel drive or four-wheel drive?

The MAN Werk München 4P1 is four-wheel drive (4WD).

What PTO does a 4P1 have?

A 4P1 has a 1520 rpm rear PTO on a 1 3/8"- 6 splines (Form-A) shaft.

Sources and how this page was built

Compiled from Traktorenlexikon, “MAN 2P1”; and Traktorenlexikon, “MAN 4P1”.
