WhichTractor
  • Vehicle type: unspecified
  • WhichTractor size: Standard-size
  • Lab tested ×1
  • 1997–2002

WhichTractor size, not the maker’s category

We looked and the record does not say what this machine is. How we decide what a machine is

John Deere 7610 specs: hp, weight, years

John Deere 6068TRW72 six-cylinder or John Deere 6.068 TRW-52 diesel. OECD put one on a dynamometer and measured 126.9 hp at the power take-off — the number to size an implement from.

Measured at the PTO shaft

126.9 hp

Source · OECD Test 1961, measured

What “at the PTO” means, and why it matters

Drawbar hp
114.0

John Deere 7610 specs: key facts

  • The John Deere 7610 was built from 1997 to 2002 and produced 94.6 kW (126.9 hp) at the PTO, measured on OECD Test 1961.Source 1

  • The claimed engine power (gross or net not stated) of the John Deere 7610 is 103–103 kW (138–138 hp), depending on configuration.

  • The John Deere 7610 was offered in two-wheel-drive and four-wheel-drive versions.

  • The John Deere 7610 has a John Deere 6068TRW72 engine, a 6-cylinder 6.79 L unit.Source 1

  • The John Deere 7610 weighs 6,193–6,568 kg (13,653–14,480 lb) unladen, depending on configuration.

  • The John Deere 7610 has an independent rear PTO running at 540/1000 rpm.Source 1

  • The hydraulic pump of the John Deere 7610 delivers 102.0 L/min (26.9 gpm).

Source · Traktorenlexikon, “John Deere 7610”

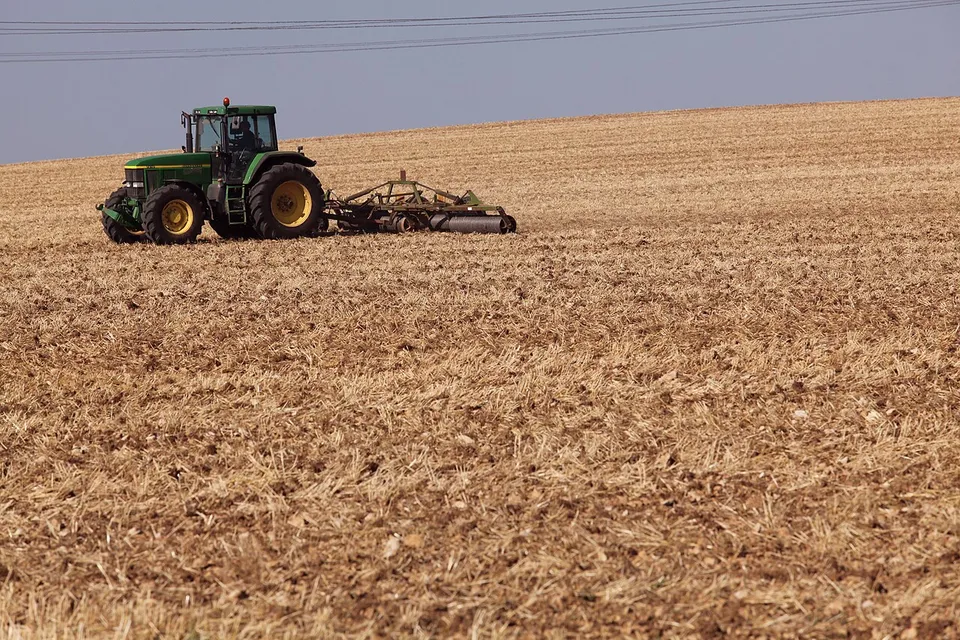

John Deere 7610 tractor
Photo: Joost J. Bakker, CC BY 2.0 via Wikimedia Commons · Wrong photo?

How much horsepower does a 7610 have at the PTO?

At the PTO shaft a 7610 has 126.9 hp (94.6 kW), measured on OECD Test 1961.

PTO, measured
126.9 hp
Drawbar, measured (unballasted)
114.0 hp

Sources · OECD test report 1961, 2001; Traktorenlexikon, “John Deere 7610”

What engine is in a 7610?

A 7610 has a John Deere 6068TRW72, a 6-cylinder 6.79 L engine. Diesel tractors have a John Deere 6.068 TRW-52. Diesel tractors have a John Deere 6.068 TRW-52.

Engine — 7610 engine specifications
Make & modelJohn Deere 6068TRW72
Cylinders6, liquid-cooled
Displacement414.2 ci · 6.79 L
Aspirationsupercharged
Max torque420 lb·ft · 569.0 N·m @ 1,303 rpm

Source · OECD test report 1961, 2001

How much will a 7610 lift?

Hydraulic and PTO specifications for the 7610 are below.

Hydraulics & PTO — 7610 hydraulics and PTO specifications
SystemClosed centre, load sensingSource 2On record for 1 of 3 configurations
Pump flow26.9 gpm · 102.0 L/minSource 2On record for 1 of 3 configurations
Pressure2,538 psi · 175 barSource 2On record for 1 of 3 configurations
Rear PTO540/1000 rpm
PTO shaft35 mm, 6 splines / 35 mm, 21 splines

Source · OECD test report 1961, 2001

What transmission does a 7610 have?

Transmission specifications for the 7610 are below.

Transmission — 7610 transmission specifications
ClutchPedal-operated hydraulic wet John Deere multi-plate clutchOn record for 1 of 3 configurations
Top speed18.6–31.1 mph · 30–50 km/hOn record for 1 of 3 configurationsthe article lists alternatives

Source · Traktorenlexikon, “John Deere 7610”

How much does a 7610 weigh?

Dimensions for the 7610 are below; no sourced weight is on record yet.

Weights & dimensions — 7610 weights and dimensions
Unladen weight13,653–14,480 lb · 6,193–6,568 kgVaries by configuration: 6,193 kg or 6,568 kgOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version
Maximum permissible mass25,353 lb · 11,500 kgOn record for 1 of 3 configurations
Wheelbase110.2–114.2 in · 2,800–2,900 mmVaries by configuration: 2,800 mm or 2,900 mmOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version
Length187.2 in · 4,755 mmOn record for 1 of 3 configurations
Width118.7 in · 3,015 mmOn record for 1 of 3 configurations
Height117.0 in · 2,973 mmOn record for 1 of 3 configurations
Ground clearance18.3 in · 465 mmOn record for 1 of 3 configurations
Rear track60.0–100.3 in · 1,525–2,548 mmOn record for 1 of 3 configurations

Source · Traktorenlexikon, “John Deere 7610”

What oil does a 7610 take, and how much?

A 7610 engine takes 20.0 qt (18.9 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

7610 fluid capacities, grades and service intervals
SystemCapacity
Engine oil20.0 qt · 18.9 LSource: Traktorenlexikon, “John Deere 7610” · single source, not independently verified
Transmission108.0 qt · 102.2 LSource: Traktorenlexikon, “John Deere 7610” · single source, not independently verified
Front axle15.2 qt · 14.4 LSource: Traktorenlexikon, “John Deere 7610” · single source, not independently verified
Cooling system25.0 qt · 23.7 LSource: Traktorenlexikon, “John Deere 7610” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

What did OECD measure on Test 1961?

OECD Test 1961 recorded 126.9 hp at the PTO and 114.0 hp at the drawbar. Configuration as printed: “4 WD · PowrQuad - MFWD - 20 speeds - 40 km/h”.

Test results — OECD Test 1961, 7610: measured results
PTO power, maximum126.9 hp at 886 PTO rpm · 94.6 kW @ 1,850 engine rpm
PTO power, rated engine speed120.7 hp at 1,007 PTO rpm · 90.0 kW @ 2,101 engine rpm
PTO power, standard PTO speed120.7 hp at 1,007 PTO rpm · 90.0 kW @ 2,101 engine rpm
Drawbar power, unballasted114.0 hp · 85.0 kW

Source · OECD test report 1961, 2001

How much fuel does a 7610 burn per hour?

Measured on OECD Test 1961 (tested as the 7610 (4 WD)), at each condition the laboratory recorded.

Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).

Fuel use measured on OECD Test 1961
Test conditionFuel per hour
Maximum PTO powerPTO 94.6 kW (126.9 hp) at 886 rpm26.56 L/h 7.02 gal/h
Rated engine speedPTO 90.0 kW (120.7 hp) at 1,007 rpm26.90 L/h 7.11 gal/h
Standard PTO speedPTO 90.0 kW (120.7 hp) at 1,007 rpm26.90 L/h 7.11 gal/h
75% load, 50% loadNot on record for this test

Source · OECD Test 1961

Which tractors compare with a 7610?

Within 10% of its 126.9 hp measured at the PTO, the same type, and first built within 15 years of it.

Common questions about the John Deere 7610

Is a 7610 two-wheel drive or four-wheel drive?

The John Deere 7610 was offered in two-wheel-drive and four-wheel-drive versions.

What PTO does a 7610 have?

A 7610 has a 540/1000 rpm rear PTO on a 35 mm, 6 splines / 35 mm, 21 splines shaft.

What implements will a 7610 run?

Size PTO implements from the measured 126.9 hp at the shaft.

Sources and how this page was built

Compiled from OECD tractor test report 1961; and Traktorenlexikon, “John Deere 7610”.

Sources checked

14 SEP 2026

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. OECD Code 2 test report 2/1 961: John Deere 7610 — Licence not stated by the publisher; facts cited, OECD-1961 · published 2001-06-19 · retrieved 2026-09-14. OECD. Original document
  2. Traktorenlexikon: John Deere 7610 — CC BY-SA 4.0, WIKIBOOKS-TL-48503 · revision 877962. Wikibooks contributors (Traktorenlexikon). Original document
