- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1972–1979
- 36,064 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

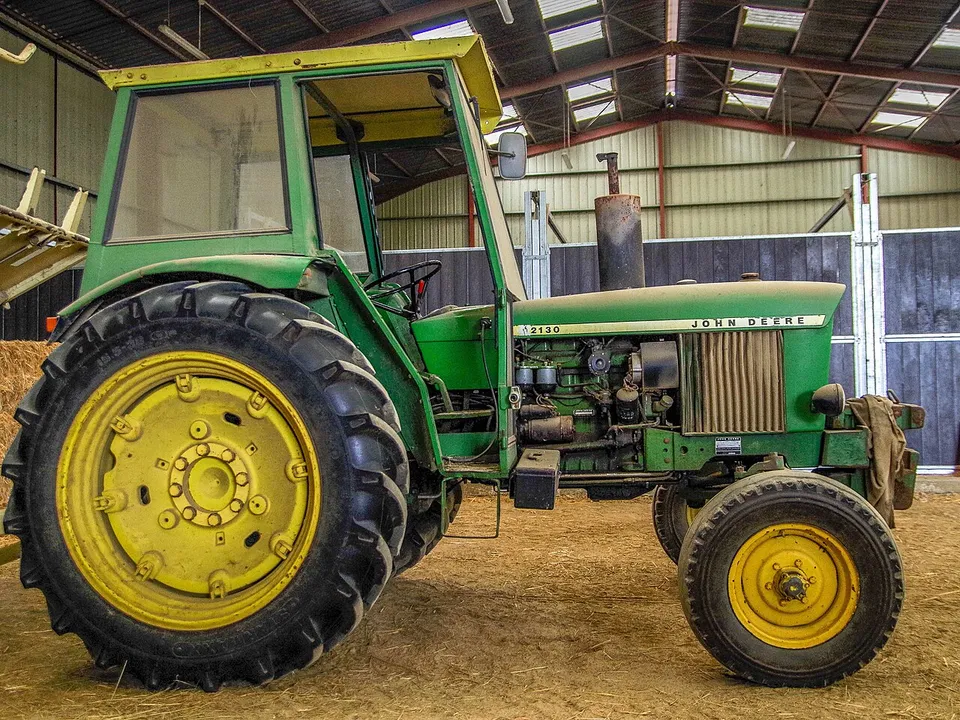

John Deere 2130 Full specifications
John Deere 4.329 DL-01 four-cylinder diesel. The manufacturer claimed 74.0 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
74.0 hp
55.2 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “John Deere 2130”, claimed
- Weight
- 6,636 lb
- 3-point lift
- 4,553 lb
- Hyd. flow
- 12.6 gpm
- Top speed
- 15.5–18.6 mph
John Deere 2130 specs: key facts
The John Deere 2130 was built from 1972 to 1979.
The John Deere 2130 has a claimed engine power (gross or net not stated) of 55.2 kW (74.0 hp); it has no measured PTO figure.
The John Deere 2130 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
The John Deere 2130 has a John Deere 4.329 DL-01 engine, a 4-cylinder 3.92 L diesel unit.
The John Deere 2130 weighs 3,010 kg (6,636 lb) unladen.
The John Deere 2130 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the John Deere 2130 lifts 2,065 kg (4,553 lb) at the lower-link ends.
The hydraulic pump of the John Deere 2130 delivers 47.6 L/min (12.6 gpm).
Source · Traktorenlexikon, “John Deere 2130”
How much horsepower does a 2130 have?
The only figure for the 2130 is 74.0 hp (55.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “John Deere 2130”
What engine is in a 2130?
A 2130 has a John Deere 4.329 DL-01, a 4-cylinder 3.92 L diesel engine.
| Make & model | John Deere 4.329 DL-01 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 239.0 ci · 3.92 L |
| Max torque | 188 lb·ft · 255 N·m |
| Electrical system | 12 V |
Source · Traktorenlexikon, “John Deere 2130”
How much will a 2130 lift, and what is its hydraulic flow?
A 2130 lifts 4,553 lb (2,065 kg) at the lower-link ends of its Category 2 three-point hitch.
| System | Closed centre |
|---|---|
| Pump flow | 12.6 gpm · 47.6 L/min |
| Pressure | 3,989 psi · 275 bar |
| Hitch category | Category 2 |
| Lift at ends | 4,553 lb · 2,065 kg |
| Rear PTO | 540/1000 rpm |
Source · Traktorenlexikon, “John Deere 2130”
What transmission does a 2130 have?
Transmission specifications for the 2130 are below.
| Brakes | Pedal-operated hydraulic wet disc brake acting on differential reduction gear |
|---|---|
| Steering | Mechanical John Deere center steering |
| Top speed | 15.5–18.6 mph · 25–30 km/hthe article lists alternatives |
Source · Traktorenlexikon, “John Deere 2130”
How much does a 2130 weigh?
A 2130 weighs 6,636 lb (3,010 kg) unladen.
| Unladen weight | 6,636 lb · 3,010 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 9,921 lb · 4,500 kg |
| Wheelbase | 85.7 in · 2,178 mmtwo-wheel-drive version |
| Length | 141.7 in · 3,598 mm |
| Width | 80.3 in · 2,040 mm |
| Height | 95.6 in · 2,428 mm |
| Ground clearance | 25.8 in · 655 mmtwo-wheel-drive version |
| Front track | 53.5–73.6 in · 1,360–1,870 mmtwo-wheel-drive version |
| Rear track | 61.0–76.8 in · 1,550–1,950 mm |
| Turning radius, braked | 10.3 ft · 3.15 mtwo-wheel-drive version |
Source · Traktorenlexikon, “John Deere 2130”
Which tractors compare with a 2130?
Within 10% of its 74.0 hp of claimed engine power, the same type, and first built within 15 years of it.
- Renault 75174.0 hp engine, claimed · 1973–1980Side by side with the 2130 →
- Renault 751-474.0 hp engine, claimed · 1973–1980Side by side with the 2130 →
- John Deere 302074.0 hp engine, claimed · 1964–1972Side by side with the 2130 →
- Renault 75-12 RS74.0 hp engine, claimed · 1984–1987Side by side with the 2130 →
- SAME Explorer 75 (DT)74.0 hp engine, claimed · 1985–1987Side by side with the 2130 →
- WHITE 2-7575.0 hp engine, claimed · 1982–1988Side by side with the 2130 →
Everything else people ask
Is a 2130 two-wheel drive or four-wheel drive?
The John Deere 2130 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
What PTO does a 2130 have?
A 2130 has a 540/1000 rpm rear PTO.
Where this page comes from
Compiled from Traktorenlexikon, “John Deere 2130”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: John Deere 2130 — CC BY-SA 4.0, WIKIBOOKS-TL-9731 · revision 1027924. Wikibooks contributors (Traktorenlexikon). Original document
