- WhichTractor size: Standard-size
- No lab test on file
- 1973–1980
- 6,200 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

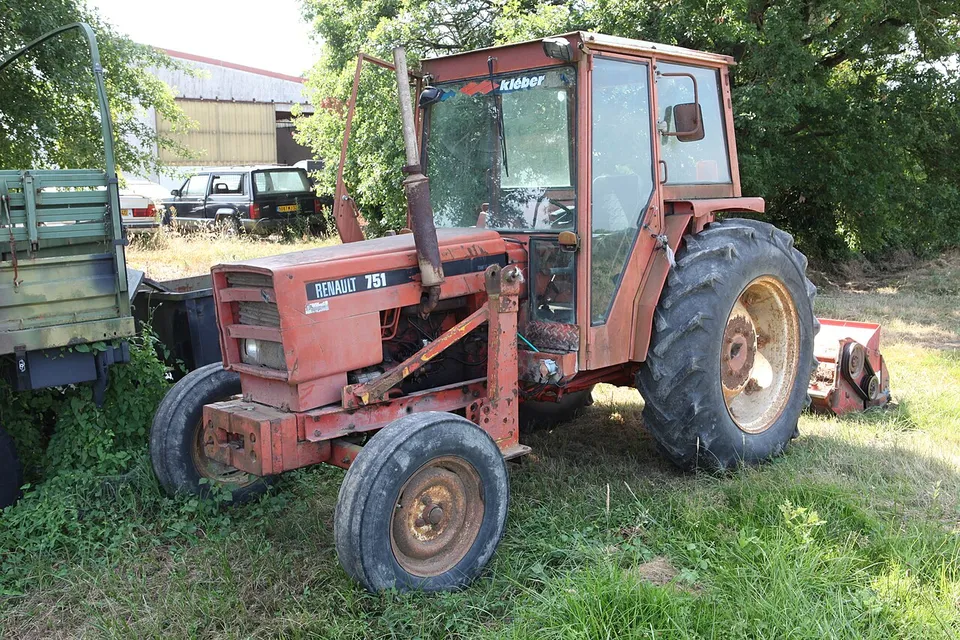

Renault 751 specs: hp, weight, years
MWM D 226-4 four-cylinder diesel. The manufacturer claimed 74.0 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
74.0 hp
55.2 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Renault 751 R7621”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 6,603 lb
- 3-point lift
- 6,063 lb
- Hyd. flow
- 8.7 gpm
- Top speed
- 15.5 mph
Renault 751 specs: key facts
The Renault 751 was built from 1973 to 1980.
The Renault 751 has a claimed engine power (gross or net not stated) of 55.2 kW (74.0 hp); it has no measured PTO figure.
The Renault 751 is two-wheel drive (2WD).Source 3
The Renault 751 has a MWM D 226-4 engine, a 4-cylinder 4.15 L diesel unit.Source 1
The Renault 751 weighs 2,995 kg (6,603 lb) unladen.
The Renault 751 has an independent rear PTO running at 540 rpm.
The three-point hitch of the Renault 751 lifts 2,750 kg (6,063 lb) at the lower-link ends.
The hydraulic pump of the Renault 751 delivers 33.0 L/min (8.7 gpm).
Source · Traktorenlexikon, “Renault 751 R7621”
How much horsepower does a 751 have?
The only figure for the 751 is 74.0 hp (55.2 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Renault 751 R7621”
What engine is in a 751?
A 751 has an MWM D 226-4, a 4-cylinder 4.15 L diesel engine.
| Make & model | MWM D 226-4Source 1 |
|---|---|
| Cylinders | 4, liquid-cooledSource 1 |
| Displacement | 253.5 ci · 4.15 LSource 1 |
| Max torque | 188 lb·ft · 255 N·m @ 1,500 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Renault 751 R7621”
How much will a 751 lift, and what is its hydraulic flow?
A 751 lifts 6,063 lb (2,750 kg) at the lower-link ends.
| Pump flow | 8.7 gpm · 33.0 L/min |
|---|---|
| Pressure | 2,321 psi · 160 bar |
| Lift at ends | 6,063 lb · 2,750 kg |
| Rear PTO | Independent, engine-driven, 540 rpm @ 2,302 engine rpm |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Renault 751 R7621”
What transmission does a 751 have?
Transmission specifications for the 751 are below.
| Clutch | Dry LuK double clutch |
|---|---|
| Brakes | Pedal-operated Girling expansion disc brake acting on half axles |
| Steering | Hydrostatic Danfoss steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Renault 751 R7621”
How much does a 751 weigh?
A 751 weighs 6,603 lb (2,995 kg) unladen.
| Unladen weight | 6,603 lb · 2,995 kg |
|---|---|
| Wheelbase | 93.5 in · 2,374 mm |
| Length | 150.2 in · 3,814 mm |
| Width | 73.2–89.0 in · 1,860–2,260 mm |
| Height | 100.2 in · 2,545 mm |
| Ground clearance | 17.7 in · 450 mm |
| Front track | 48.6–73.0 in · 1,234–1,854 mm |
| Rear track | 55.1–70.9 in · 1,400–1,800 mm |
| Turning radius, braked | 11.6 ft · 3.55 m |
Source · Traktorenlexikon, “Renault 751 R7621”
What oil does a 751 take, and how much?
A 751 engine takes 11.1 qt (10.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.1 qt · 10.5 LSource: Traktorenlexikon, “Renault 751 R7621” · single source, not independently verified |
| Transmission & hydraulic | 46.5 qt · 44.0 LSource: Traktorenlexikon, “Renault 751 R7621” · single source, not independently verified |
| Cooling system | 13.5 qt · 12.75 LSource: Traktorenlexikon, “Renault 751 R7621” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 751?
Within 10% of its 74.0 hp of claimed engine power, the same type, and first built within 15 years of it.
- John Deere 213074.0 hp engine, claimed · 1972–1979Side by side with the 751 →
- SOMECA 750 (TD)74.0 hp engine, claimed · 1971–1976Side by side with the 751 →
- ALLIS-CHALMERS 18574.0 hp engine, claimed · 1970–1981Side by side with the 751 →
- Fiat 750 (DT)74.0 hp engine, claimed · 1968–1971Side by side with the 751 →
- John Deere 302074.0 hp engine, claimed · 1964–1972Side by side with the 751 →
- Renault 75-12 TS74.0 hp engine, claimed · 1982–1983Side by side with the 751 →
Common questions about the Renault 751
Is a 751 two-wheel drive or four-wheel drive?
The Renault 751 is two-wheel drive (2WD).
What PTO does a 751 have?
A 751 has a independent 540 rpm rear PTO on a 1 3/8"- 6 splines shaft.
