- WhichTractor size: Utility
- Not independently tested
- 1961–1966
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

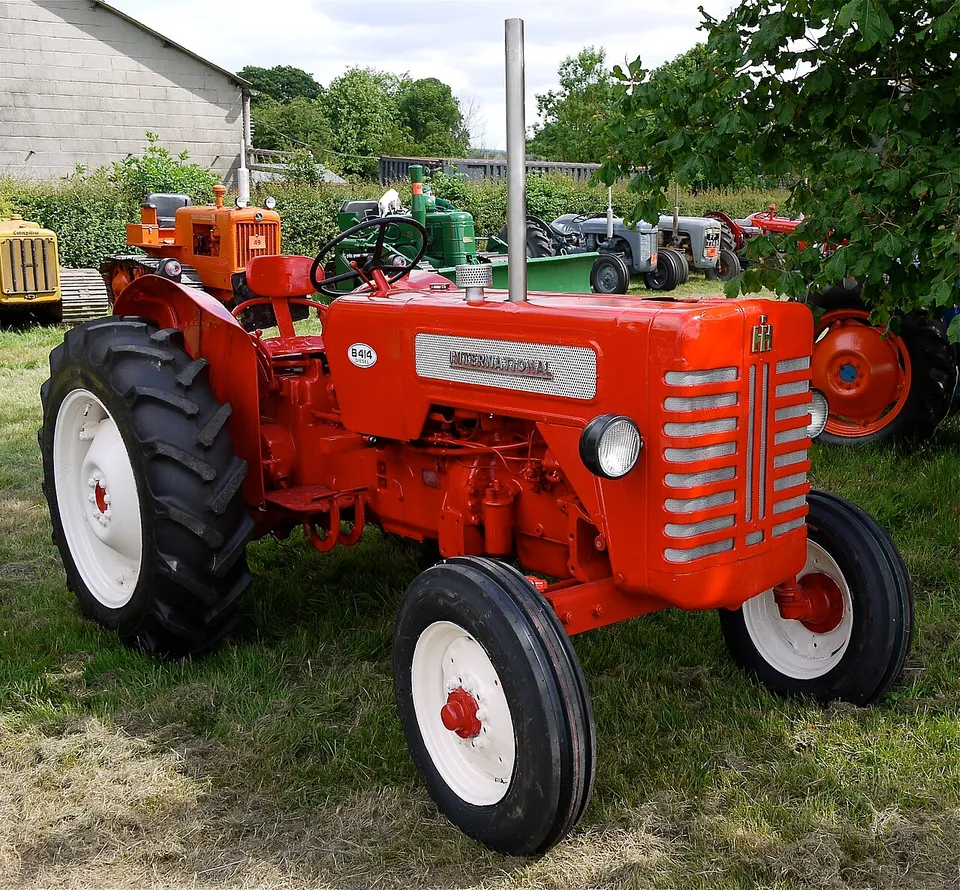

International Harvester B-414 Full specifications
INTERNATIONAL HARVESTER BD-154 four-cylinder diesel. The manufacturer claimed 35.5 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
35.5 hp
26.5 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “McCormick B-414”, claimed
- Weight
- 3,693 lb
- Hyd. flow
- 7.5 gpm
- Top speed
- 15.5 mph
International Harvester B-414 specs: key facts
The International Harvester B-414 was built from 1961 to 1966.Source 1
The International Harvester B-414 has a claimed engine power (gross or net not stated) of 26.5 kW (35.5 hp); it has no measured PTO figure.
The International Harvester B-414 is two-wheel drive (2WD).Source 1
The International Harvester B-414 has a INTERNATIONAL HARVESTER BD-154 engine, a 4-cylinder 2.52 L diesel unit.
The International Harvester B-414 weighs 1,675 kg (3,693 lb) unladen.
The hydraulic pump of the International Harvester B-414 delivers 28.5 L/min (7.5 gpm).
Source · Traktorenlexikon, “McCormick B-414”
How much horsepower does a B-414 have?
The only figure for the B-414 is 35.5 hp (26.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “McCormick B-414”
What engine is in a B-414?
A B-414 has an INTERNATIONAL HARVESTER BD-154, a 4-cylinder 2.52 L diesel engine.
| Make & model | INTERNATIONAL HARVESTER BD-154 |
|---|---|
| Cylinders | 4, liquid-cooledSource 1 |
| Displacement | 154.0 ci · 2.52 L |
| Max torque | 114 lb·ft · 155 N·m @ 1,300 rpmSource 1 |
| Electrical system | 12 V |
Source · Traktorenlexikon, “McCormick B-414”
How much will a B-414 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the B-414 are below.
| Pump flow | 7.5 gpm · 28.5 L/min |
|---|---|
| Rear PTO | Independent @ 1,980 engine rpmSource 1 |
Source · Traktorenlexikon, “McCormick B-414”
What transmission does a B-414 have?
Transmission specifications for the B-414 are below.
| Clutch | Pedal operated, two-stage and dry BORG & BECK double clutchSource 2 |
|---|---|
| Brakes | Pedal-operated disc brake mounted on differential half-shafts as individual wheel brake |
| Steering | Mechanical GEMMER steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “IHC B-414”
How much does a B-414 weigh?
A B-414 weighs 3,693 lb (1,675 kg) unladen.
| Unladen weight | 3,693 lb · 1,675 kg |
|---|---|
| Wheelbase | 76.5 in · 1,943 mmSource 1 |
| Length | 125.2 in · 3,180 mm |
| Width | 66.1 in · 1,680 mm |
| Height | 60.2 in · 1,530 mm |
| Ground clearance | 18.5 in · 470 mmSource 1 |
| Front track | 48.0–76.0 in · 1,219–1,930 mmWikibooks gives one track for both axles |
| Rear track | 48.0–76.0 in · 1,219–1,930 mmWikibooks gives one track for both axles |
| Turning radius, braked | 10.2 ft · 3.10 mSource 1 |
Source · Traktorenlexikon, “McCormick B-414”
Which tractors compare with a B-414?
Within 10% of its 35.5 hp of claimed engine power, the same type, and first built within 15 years of it.
- Steyr 19035.5 hp engine, claimed · 1964–1966Side by side with the B-414 →
- Renault 36135.5 hp engine, claimed · 1972–1977Side by side with the B-414 →
- RÖHR R 3535.5 hp engine, claimed · 1949Side by side with the B-414 →
- Hürlimann D 10035.5 hp engine, claimed · 1946–1954Side by side with the B-414 →
- International Harvester 36435.5 hp engine, claimed · 1976–1977Side by side with the B-414 →
- Güldner G 40 (Toledo)35.34 hp engine, claimed · 1962Side by side with the B-414 →
Everything else people ask
Is a B-414 two-wheel drive or four-wheel drive?
The International Harvester B-414 is two-wheel drive (2WD).
Where this page comes from
Compiled from Traktorenlexikon, “McCormick B-414”; and Traktorenlexikon, “IHC B-414”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: IHC B-414 — CC BY-SA 4.0, WIKIBOOKS-TL-118444 · revision 1031599. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: McCormick B-414 — CC BY-SA 4.0, WIKIBOOKS-TL-117936 · revision 1059867. Wikibooks contributors (Traktorenlexikon). Original document
