- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1993–1996
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

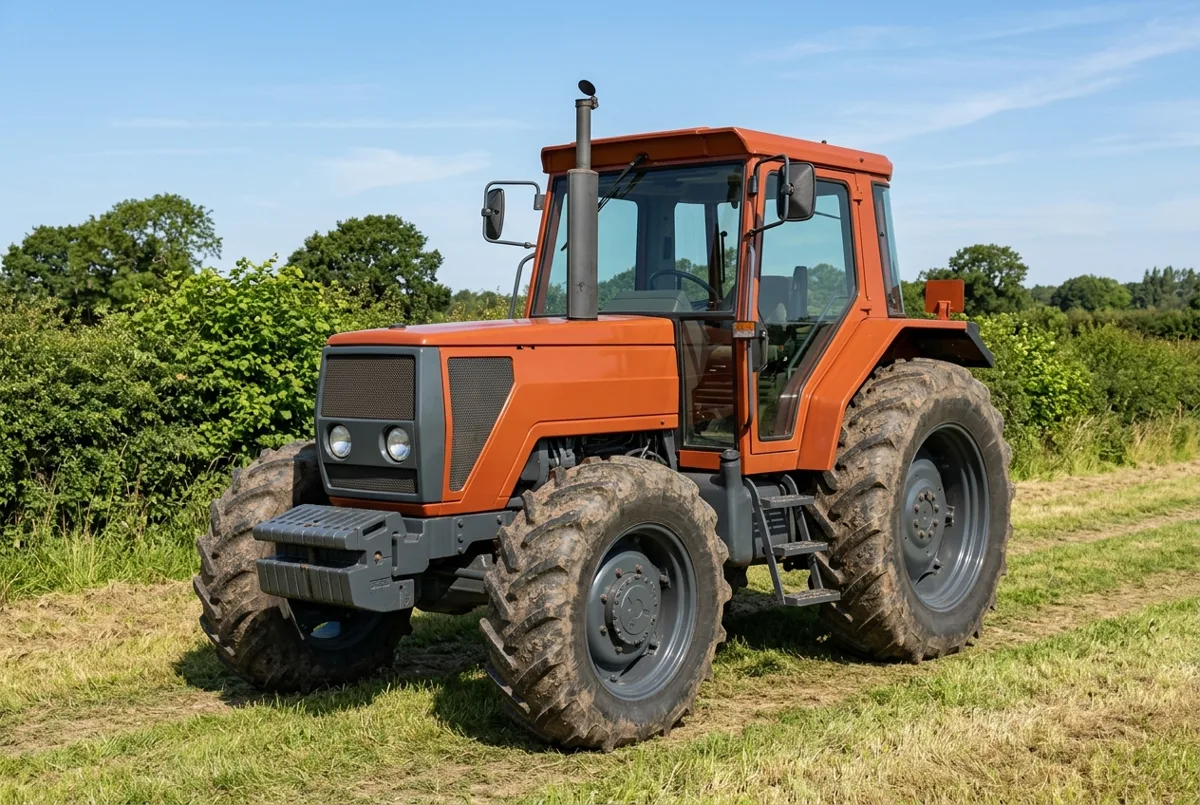

Fiat F-140 DT specs: hp, weight, years
Fiat-Iveco 8065.25 S six-cylinder diesel. The manufacturer claimed 138 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
138 hp
103 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fiatagri F140 DT”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 12,379 lb
- 3-point lift
- 14,478 lb
- Hyd. flow
- 14.0 gpm
- Top speed
- 18.6–24.9 mph
Fiat F-140 DT specs: key facts
The Fiat F-140 DT was built from 1993 to 1996.
The Fiat F-140 DT has a claimed engine power (gross or net not stated) of 103 kW (138 hp); it has no measured PTO figure.
The Fiat F-140 DT is four-wheel drive (4WD).
The Fiat F-140 DT has a Fiat-Iveco 8065.25 S engine, a 6-cylinder 5.86 L diesel unit.
The Fiat F-140 DT weighs 5,615 kg (12,379 lb) unladen.
The Fiat F-140 DT has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Fiat F-140 DT lifts 6,567 kg (14,478 lb) at the lower-link ends.
The hydraulic pump of the Fiat F-140 DT delivers 52.9 L/min (14.0 gpm).
Source · Traktorenlexikon, “Fiatagri F140 DT”
How much horsepower does a F-140 DT have?
The only figure for the F-140 DT is 138 hp (103 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fiatagri F140 DT”
What engine is in a F-140 DT?
A F-140 DT has a Fiat-Iveco 8065.25 S, a 6-cylinder 5.86 L diesel engine.
| Make & model | Fiat-Iveco 8065.25 S |
|---|---|
| Cylinders | 6, liquid-cooled |
| Displacement | 357.7 ci · 5.86 L |
| Max torque | 376 lb·ft · 510 N·m |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fiatagri F140 DT”
How much will a F-140 DT lift, and what is its hydraulic flow?
A F-140 DT lifts 14,478 lb (6,567 kg) at the lower-link ends.
| Pump flow | 14.0 gpm · 52.9 L/min |
|---|---|
| Pressure | 3,046 psi · 210 bar |
| Lift at ends | 14,478 lb · 6,567 kg |
| Rear PTO | 540/1000 rpm @ 1,969 engine rpm |
Source · Traktorenlexikon, “Fiatagri F140 DT”
What transmission does a F-140 DT have?
Transmission specifications for the F-140 DT are below.
| Steering | Hydrostatic Danfoss steering type Orbitrol-OSPC 160 ON |
|---|---|
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Fiatagri F140 DT”
How much does a F-140 DT weigh?
A F-140 DT weighs 12,379 lb (5,615 kg) unladen.
| Unladen weight | 12,379 lb · 5,615 kg |
|---|---|
| Maximum permissible mass | 18,960 lb · 8,600 kg |
| Maximum front axle load | 8,708 lb · 3,950 kg |
| Wheelbase | 106.7 in · 2,710 mm |
| Length | 187.4 in · 4,760 mm |
| Width | 94.5 in · 2,400 mm |
| Height | 111.4 in · 2,830 mm |
| Front track | 74.8–86.6 in · 1,900–2,200 mm |
| Rear track | 64.2–83.9 in · 1,630–2,130 mm |
Source · Traktorenlexikon, “Fiatagri F140 DT”
What oil does a F-140 DT take, and how much?
A F-140 DT engine takes 16.6 qt (15.7 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 16.6 qt · 15.7 LSource: Traktorenlexikon, “Fiatagri F140 DT” · single source, not independently verified |
| Transmission & hydraulic | 63.4 qt · 60.0 LSource: Traktorenlexikon, “Fiatagri F140 DT” · single source, not independently verified |
| Cooling system | 24.8 qt · 23.5 LSource: Traktorenlexikon, “Fiatagri F140 DT” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a F-140 DT?
Within 10% of its 138 hp of claimed engine power, the same type, and first built within 15 years of it.
- VALMET 8400138.1 hp engine, claimed · 1993–2004Side by side with the F-140 DT →
- VALMET 8450138 hp engine, claimed · 1995–2001Side by side with the F-140 DT →
- Fendt Favorit 714 Vario138 hp engine, claimed · from 1998Side by side with the F-140 DT →
- VALMET 8450 HiTech138 hp engine, claimed · 1998–2003Side by side with the F-140 DT →
- AGRIFULL A-140 DT Turbo138 hp engine, claimed · 1987–1991Side by side with the F-140 DT →
- New Holland TM 150138 hp engine, claimed · 1999–2002Side by side with the F-140 DT →
Common questions about the Fiat F-140 DT
Is a F-140 DT two-wheel drive or four-wheel drive?
The Fiat F-140 DT is four-wheel drive (4WD).
What PTO does a F-140 DT have?
A F-140 DT has a 540/1000 rpm rear PTO.
Sources and how this page was built
Compiled from Traktorenlexikon, “Fiatagri F140 DT”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Fiatagri F140 DT — CC BY-SA 4.0, WIKIBOOKS-TL-108880 · revision 1004968. Wikibooks contributors (Traktorenlexikon). Original document
