- Rigid chassis
- WhichTractor size: Standard-size
- Not independently tested
- 1969–1975
WhichTractor size, not the maker’s category
The source says so, in a sentence about this machine. How we decide what a machine is

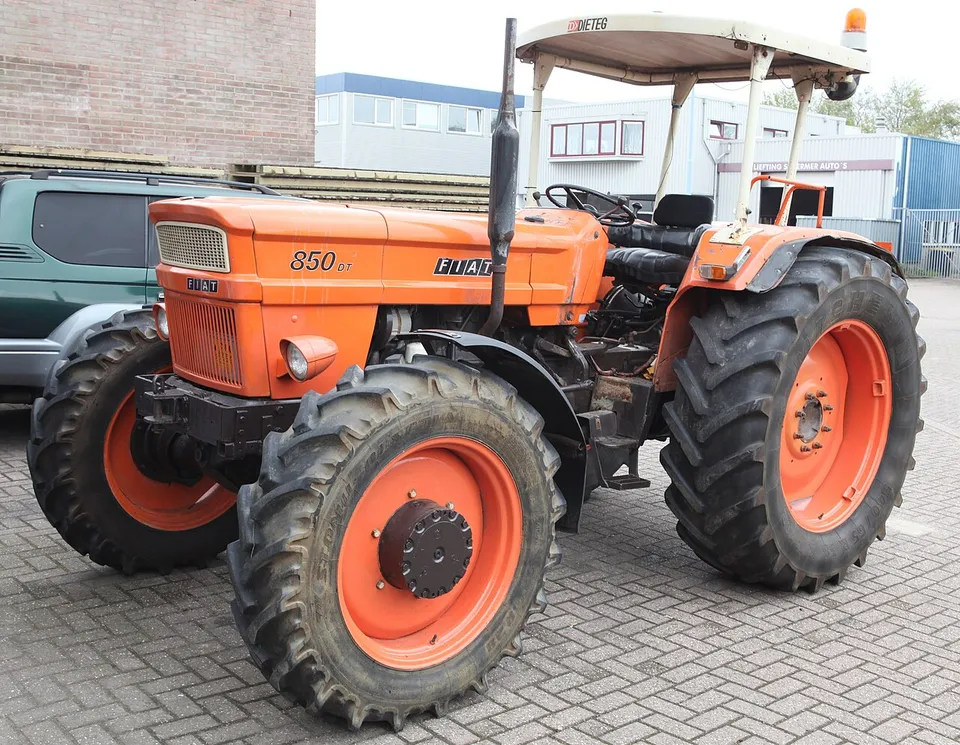

Fiat 850 (DT) Full specifications
O.M.-FIAT CO 3/80 Var.4 four-cylinder diesel. The manufacturer claimed 83.9 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
83.9 hp
62.6 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fiat 850/850 DT”, claimed
- Weight
- 7,330 lb
- 3-point lift
- 5,979 lb
- Top speed
- 15.5 mph
Fiat 850 (DT) specs: key facts
The Fiat 850 (DT) was built from 1969 to 1975.
The Fiat 850 (DT) has a claimed engine power (gross or net not stated) of 62.6 kW (83.9 hp); it has no measured PTO figure.
The Fiat 850 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
The Fiat 850 (DT) has a O.M.-FIAT CO 3/80 Var.4 engine, a 4-cylinder 4.94 L diesel unit.
The Fiat 850 (DT) weighs 3,325 kg (7,330 lb) unladen.
The Fiat 850 (DT) has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Fiat 850 (DT) lifts 2,712 kg (5,979 lb) at the lower-link ends.
Source · Traktorenlexikon, “Fiat 850/850 DT”
How much horsepower does an 850 (DT) have?
The only figure for the 850 (DT) is 83.9 hp (62.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fiat 850/850 DT”
What engine is in an 850 (DT)?
An 850 (DT) has an O.M.-FIAT CO 3/80 Var.4, a 4-cylinder 4.94 L diesel engine.
| Make & model | O.M.-FIAT CO 3/80 Var.4 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 301.5 ci · 4.94 L |
| Max torque | 235 lb·ft · 318 N·m @ 1,200 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fiat 850/850 DT”
How much will an 850 (DT) lift?
An 850 (DT) lifts 5,979 lb (2,712 kg) at the lower-link ends of its Category 2 three-point hitch.
| Pressure | 2,901 psi · 200 bar |
|---|---|
| Hitch category | Category 2 |
| Lift at ends | 5,979 lb · 2,712 kg |
| Rear PTO | 540/1000 rpm @ 1,937 engine rpm |
| PTO shaft | 1 3/8"- 6 splines (Form-A) and 1 3/8"- 21 part (Form-B) |
Source · Traktorenlexikon, “Fiat 850/850 DT”
What transmission does an 850 (DT) have?
Transmission specifications for the 850 (DT) are below.
| Clutch | Dry FERODO double clutch with separate PTO actuation |
|---|---|
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Fiat 850/850 DT”
How much does an 850 (DT) weigh?
An 850 (DT) weighs 7,330 lb (3,325 kg) unladen.
| Unladen weight | 7,330 lb · 3,325 kgDT: 3,965 |
|---|---|
| Maximum permissible mass | 13,294 lb · 6,030 kg |
| Maximum front axle load | 4,409 lb · 2,000 kg |
| Maximum rear axle load | 8,885 lb · 4,030 kg |
| Wheelbase | 93.0 in · 2,362 mmDT: 2,390 |
| Length | 159.5 in · 4,052 mm |
| Width | 75.8 in · 1,925 mmDT: 2,025 |
| Height | 101.6 in · 2,580 mm |
| Ground clearance | 21.5 in · 545 mmDT: 393 |
| Front track | 55.1–78.7 in · 1,400–2,000 mmDT: 1,700/1,800; the article lists alternatives |
| Rear track | 59.1–82.7 in · 1,500–2,100 mm |
| Turning radius, braked | 11.9 ft · 3.64 mDT: 4,300 |
Source · Traktorenlexikon, “Fiat 850/850 DT”
Which tractors compare with an 850 (DT)?
Within 10% of its 76.4 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- Steyr 8100 (a)76.3 hp PTO, claimed · 1978–1984Side by side with the 850 (DT) →
- David Brown 141276.2 hp PTO, claimed · 1974–1980Side by side with the 850 (DT) →
- SOMECA 850 (TD)76.6 hp PTO, claimed · 1969–1975Side by side with the 850 (DT) →
- Renault 891-4 (S)76.0 hp PTO, claimed · 1977–1982Side by side with the 850 (DT) →
- VALMET 705/705-477.0 hp PTO, claimed · 1983–1989Side by side with the 850 (DT) →
- Volvo T 80075.7 hp PTO, claimed · 1966–1978Side by side with the 850 (DT) →
Everything else people ask
Is an 850 (DT) two-wheel drive or four-wheel drive?
The Fiat 850 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does an 850 (DT) have?
An 850 (DT) has a 540/1000 rpm rear PTO on a 1 3/8"- 6 splines (Form-A) and 1 3/8"- 21 part (Form-B) shaft.
Where this page comes from
Compiled from Traktorenlexikon, “Fiat 850/850 DT”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Fiat 850/850 DT — CC BY-SA 4.0, WIKIBOOKS-TL-88325 · revision 1074484. Wikibooks contributors (Traktorenlexikon). Original document
