- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1965–1968
It sits on the utility/standard-size boundary, so either size is a fair description. It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

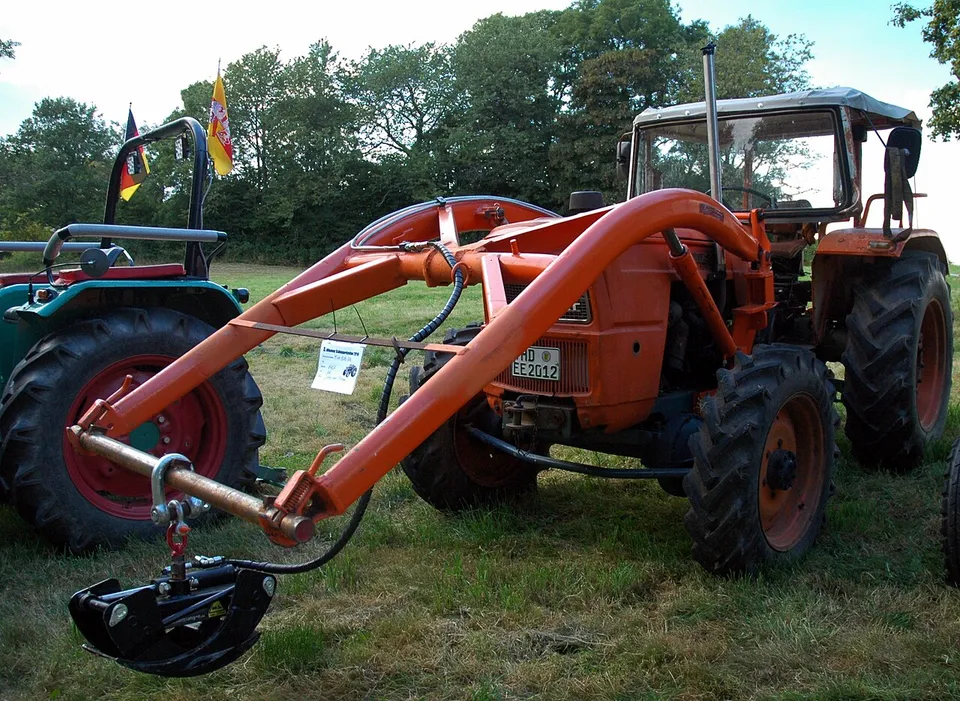

Fiat 615 (DT) specs: hp, weight, years
O.M.-FIAT CO 2 D/60 Var.10 or Var.12 four-cylinder diesel. The manufacturer claimed 64.1 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
64.1 hp
47.8 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Fiat 615/615 DT”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 5,997 lb
- 3-point lift
- 3,968 lb
- Hyd. flow
- 7.0 gpm
- Top speed
- 14.9 mph
Fiat 615 (DT) specs: key facts
The Fiat 615 (DT) was built from 1965 to 1968.
The Fiat 615 (DT) has a claimed engine power (gross or net not stated) of 47.8 kW (64.1 hp); it has no measured PTO figure.
The Fiat 615 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
The Fiat 615 (DT) has a O.M.-FIAT CO 2 D/60 Var.10 or Var.12 engine, a 4-cylinder 4.40 L diesel unit.
The Fiat 615 (DT) weighs 2,720 kg (5,997 lb) unladen.
The Fiat 615 (DT) has an independent rear PTO running at 540 rpm.
The three-point hitch of the Fiat 615 (DT) lifts 1,800 kg (3,968 lb) at the lower-link ends.
The hydraulic pump of the Fiat 615 (DT) delivers 26.5 L/min (7.0 gpm).
Source · Traktorenlexikon, “Fiat 615/615 DT”
How does the 615 (DT) compare with its class?
- Limitation:
Seven forward gears is low for its class — 42% below the median of 12 across the 389 machines within 10% of its power that hold this figure.
Derived by WhichTractor from 395 comparable records. How we work this out
How much horsepower does a 615 (DT) have?
The only figure for the 615 (DT) is 64.1 hp (47.8 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Fiat 615/615 DT”
What engine is in a 615 (DT)?
A 615 (DT) has an O.M.-FIAT CO 2 D/60 Var.10 or Var.12, a 4-cylinder 4.40 L diesel engine.
| Make & model | O.M.-FIAT CO 2 D/60 Var.10 or Var.12 |
|---|---|
| Cylinders | 4, liquid-cooled |
| Displacement | 268.3 ci · 4.40 L |
| Max torque | 188 lb·ft · 255 N·m @ 1,200 rpm |
| Injection | direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Fiat 615/615 DT”
How much will a 615 (DT) lift, and what is its hydraulic flow?
A 615 (DT) lifts 3,968 lb (1,800 kg) at the lower-link ends of its Category 2 three-point hitch.
| Pump flow | 7.0 gpm · 26.5 L/min |
|---|---|
| Pressure | 2,988 psi · 206 bar |
| Hitch category | Category 2 |
| Lift at ends | 3,968 lb · 1,800 kg |
| Rear PTO | Independent, engine-driven, 540 rpm @ 1,520 engine rpm |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Fiat 615/615 DT”
What transmission does a 615 (DT) have?
Transmission specifications for the 615 (DT) are below.
| Clutch | pedal operated two stage dry FERODO double clutch |
|---|---|
| Brakes | pedal operated disc brake acting on differential shafts acting as steering brake |
| Steering | mechanically operated GEMMER steering |
| Top speed | 14.9 mph · 24 km/h |
Source · Traktorenlexikon, “Fiat 615/615 DT”
How much does a 615 (DT) weigh?
A 615 (DT) weighs 5,997 lb (2,720 kg) unladen.
| Unladen weight | 5,997 lb · 2,720 kgDT: 3065 |
|---|---|
| Wheelbase | 85.4 in · 2,170 mmDT: 2,080 |
| Length | 140.9 in · 3,580 mm |
| Width | 71.7–98.0 in · 1,820–2,490 mm |
| Height | 66.5 in · 1,690 mm |
| Ground clearance | 18.5 in · 470 mmDT: 290 |
| Front track | 58.3–77.2 in · 1,480–1,960 mmDT: 1,580 |
| Rear track | 51.6–83.1 in · 1,310–2,110 mm |
| Turning radius, braked | 12.0 ft · 3.65 mDT: 5,110 |
Source · Traktorenlexikon, “Fiat 615/615 DT”
What oil does a 615 (DT) take, and how much?
A 615 (DT) engine takes 11.6 qt (11.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11.0 LSource: Traktorenlexikon, “Fiat 615/615 DT” · single source, not independently verified |
| Transmission | 19.5 qt · 18.5 LSource: Traktorenlexikon, “Fiat 615/615 DT” · single source, not independently verified |
| Hydraulic | 10.0 qt · 9.5 LSource: Traktorenlexikon, “Fiat 615/615 DT” · single source, not independently verified |
| Cooling system | 18.8 qt · 17.8 LSource: Traktorenlexikon, “Fiat 615/615 DT” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 615 (DT)?
Within 10% of its 64.1 hp of claimed engine power, the same type, and first built within 15 years of it.
- International Harvester 65664.1 hp engine, claimed · 1965–1972Side by side with the 615 (DT) →
- International Harvester Farmall 65664.1 hp engine, claimed · 1965–1972Side by side with the 615 (DT) →
- UTB U 650/65164.1 hp engine, claimed · 1963–1973Side by side with the 615 (DT) →
- John Deere 301064.1 hp engine, claimed · 1962–1964Side by side with the 615 (DT) →
- SOMECA 670 (DT)64.1 hp engine, claimed · 1968–1971Side by side with the 615 (DT) →
- Fiat 650 (DT)64.1 hp engine, claimed · 1971–1976Side by side with the 615 (DT) →
Common questions about the Fiat 615 (DT)
Is a 615 (DT) two-wheel drive or four-wheel drive?
The Fiat 615 (DT) was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a 615 (DT) have?
A 615 (DT) has a independent 540 rpm rear PTO on a 1 3/8"- 6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Fiat 615/615 DT”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Fiat 615/615 DT — CC BY-SA 4.0, WIKIBOOKS-TL-102341 · revision 1073319. Wikibooks contributors (Traktorenlexikon). Original document
