- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Standard-size
- No lab test on file
- 1974–1980
- 4,200 built
WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

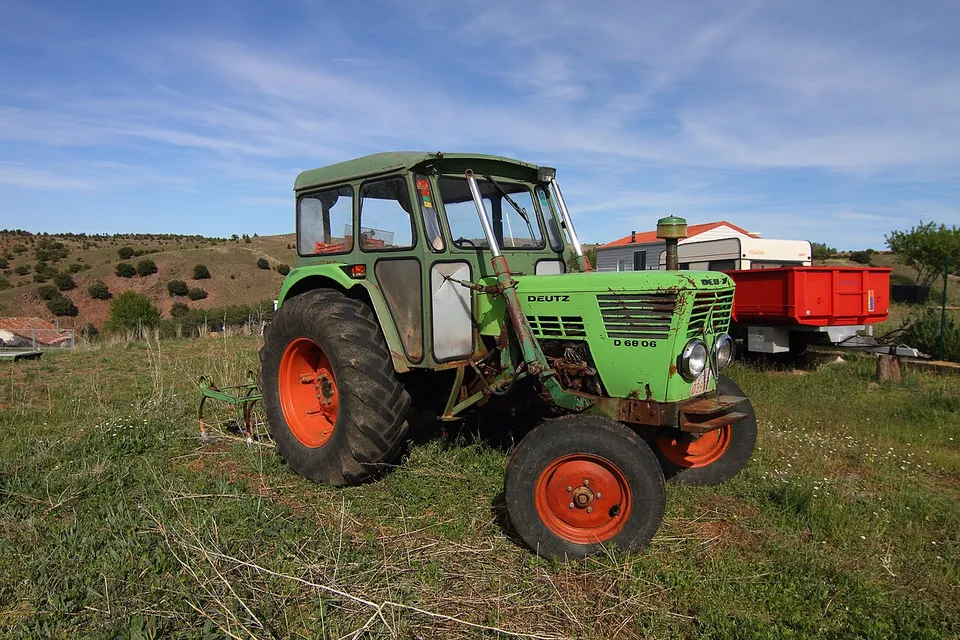

Deutz D 6806 specs: hp, weight, years
KHD F4L 912 four-cylinder diesel. The manufacturer claimed 66 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
66 hp
49 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz D 6806”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 6,085 lb
- Hyd. flow
- 7.5 gpm
- Top speed
- 15.5 mph
Deutz D 6806 specs: key facts
The Deutz D 6806 was built from 1974 to 1980.
The Deutz D 6806 has a claimed engine power (gross or net not stated) of 49 kW (66 hp); it has no measured PTO figure.
The Deutz D 6806 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz D 6806 has a KHD F4L 912 engine, a 4-cylinder 3.77 L diesel unit.Source 1
The Deutz D 6806 weighs 2,760 kg (6,085 lb) unladen.
The Deutz D 6806 has a rear PTO running at 540 rpm.
The hydraulic pump of the Deutz D 6806 delivers 28.3 L/min (7.5 gpm).
Source · Traktorenlexikon, “Deutz D 6806”
How much horsepower does a Deutz D 6806 have?
The only figure for the Deutz D 6806 is 66 hp (49 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz D 6806”
What engine is in a Deutz D 6806?
A Deutz D 6806 has a KHD F4L 912, a 4-cylinder 3.77 L diesel engine.
| Make & model | KHD F4L 912 |
|---|---|
| Cylinders | 4, air-cooledSource 2 |
| Displacement | 229.9 ci · 3.77 L |
| Max torque | 177 lb·ft · 240 N·m @ 1,600 rpmSource 2 |
Source · Traktorenlexikon, “Deutz D 6006”
How much will a Deutz D 6806 lift, and what is its hydraulic flow?
Hydraulic and PTO specifications for the Deutz D 6806 are below.
| Pump flow | 7.5 gpm · 28.3 L/min |
|---|---|
| Pressure | 2,901 psi · 200 bar |
| Rear PTO | 540 rpm @ 2,025 engine rpm |
Source · Traktorenlexikon, “Deutz D 6806”
What transmission does a Deutz D 6806 have?
Transmission specifications for the Deutz D 6806 are below.
| Clutch | Independent dry Fichtel & Sachs double clutch |
|---|---|
| Steering | Mechanical ZF Gemmer steering |
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Deutz D 6806”
How much does a Deutz D 6806 weigh?
A Deutz D 6806 weighs 6,085 lb (2,760 kg) unladen.
| Unladen weight | 6,085 lb · 2,760 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 11,023 lb · 5,000 kg |
| Maximum front axle load | 3,902 lb · 1,770 kg |
| Maximum rear axle load | 8,818 lb · 4,000 kg |
| Wheelbase | 84.6 in · 2,150 mmtwo-wheel-drive version |
| Length | 146.1 in · 3,710 mm |
| Width | 76.4 in · 1,940 mm |
| Height | 71.3 in · 1,810 mm |
| Ground clearance | 19.7 in · 500 mmtwo-wheel-drive version |
| Front track | 57.1–76.8 in · 1,450–1,950 mmtwo-wheel-drive version |
| Rear track | 59.6–71.8 in · 1,514–1,823 mm |
| Turning radius, braked | 11.7 ft · 3.56 m |
Source · Traktorenlexikon, “Deutz D 6806”
Which tractors compare with a Deutz D 6806?
Within 10% of its 58.9 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Bührer PF-21 Super (A)58.9 hp PTO, claimed · 1968–1974Side by side with the Deutz D 6806 →
- International Harvester 67458.8 hp PTO, claimed · 1973–1975Side by side with the Deutz D 6806 →
- Fendt Favorit 3s58.7 hp PTO, claimed · 1967–1970Side by side with the Deutz D 6806 →
- Deutz D 700659 hp PTO, claimed · 1970–1974Side by side with the Deutz D 6806 →
- Hürlimann T-6200 Turbo (A)58.5 hp PTO, claimed · 1976–1979Side by side with the Deutz D 6806 →
- International Harvester 68458.5 hp PTO, claimed · 1977–1981Side by side with the Deutz D 6806 →
Common questions about the Deutz D 6806
Is a Deutz D 6806 two-wheel drive or four-wheel drive?
The Deutz D 6806 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a Deutz D 6806 have?
A Deutz D 6806 has a 540 rpm rear PTO.
