  • Rigid chassis
  • WhichTractor size: Utility
  • Not independently tested
  • 1966–1967
  • 3,600 built

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Deutz D 6005 Full specifications

KHD F4L 812 D four-cylinder diesel. The manufacturer claimed 57.0 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.

Engine power, claimed · gross or net not stated

57.0 hp

42.5 kW as stated by the source

Not independently tested

Claimed · standard not stated by the source

Source · Traktorenlexikon, “Deutz D 6005”, claimed

This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.

Weight
5,743 lb
Top speed
12.4–16.8 mph

Deutz D 6005 specs: key facts

  • The Deutz D 6005 was built from 1966 to 1967.

  • The Deutz D 6005 has a claimed engine power (gross or net not stated) of 42.5 kW (57.0 hp); it has no measured PTO figure.

  • The Deutz D 6005 was offered in two-wheel-drive and four-wheel-drive versions.

  • The Deutz D 6005 has a KHD F4L 812 D engine, a 4-cylinder 3.40 L diesel unit.

  • The Deutz D 6005 weighs 2,605 kg (5,743 lb) unladen.

  • The Deutz D 6005 has an independent rear PTO running at 540 rpm.

Source · Traktorenlexikon, “Deutz D 6005”

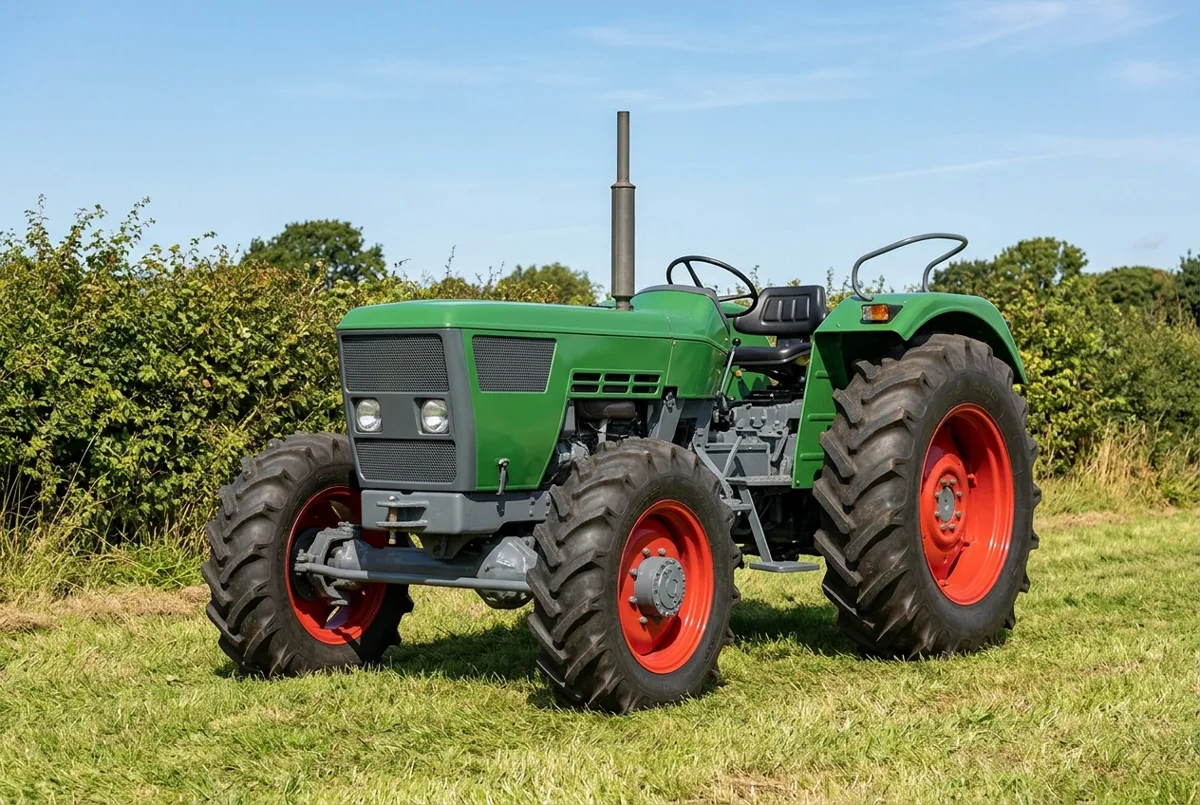

Illustration of the 1966–1967 Deutz (KHD) D 6005, a 57 hp farm tractor, four-wheel-drive version · operator station not recorded — shown as an open platform, a drawing generated from its specification record
Illustration — not a photograph · four-wheel-drive version · operator station not recorded — shown as an open platform

How much horsepower does a D 6005 have?

The only figure for the D 6005 is 57.0 hp (42.5 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.

Engine, claimed (gross/net not stated)
57.0 hp

Source · Traktorenlexikon, “Deutz D 6005”

What engine is in a D 6005?

A D 6005 has a KHD F4L 812 D, a 4-cylinder 3.40 L diesel engine.

Engine — D 6005 engine specifications
Make & modelKHD F4L 812 D
Cylinders4, air-cooled
Displacement207.6 ci · 3.40 L
Max torque148 lb·ft · 200 N·m @ 1,600 rpm
Electrical system12 V

Source · Traktorenlexikon, “Deutz D 6005”

How much will a D 6005 lift?

Hydraulic and PTO specifications for the D 6005 are below.

Hydraulics & PTO — D 6005 hydraulics and PTO specifications
Pressure2,901 psi · 200 bar
Hitch categoryCategory 2
Rear PTOIndependent, engine-driven, 540 rpm @ 2,035 engine rpm
PTO shaft29 x 34,9 x 8,7 mm (Form-A)

Source · Traktorenlexikon, “Deutz D 6005”

What transmission does a D 6005 have?

Transmission specifications for the D 6005 are below.

Transmission — D 6005 transmission specifications
ClutchDry double clutch
SteeringMechanical ZF Gemmer steering
Top speed12.4–16.8 mph · 20–27 km/h

Source · Traktorenlexikon, “Deutz D 6005”

How much does a D 6005 weigh?

A D 6005 weighs 5,743 lb (2,605 kg) unladen.

Weights & dimensions — D 6005 weights and dimensions
Unladen weight5,743 lb · 2,605 kgtwo-wheel-drive version
Maximum permissible mass11,023 lb · 5,000 kg
Maximum front axle load4,299 lb · 1,950 kg
Maximum rear axle load8,818 lb · 4,000 kg
Wheelbase84.6 in · 2,150 mmtwo-wheel-drive version
Length144.5 in · 3,670 mmtwo-wheel-drive version
Width76.8 in · 1,950 mmtwo-wheel-drive version
Height60.4 in · 1,535 mm
Ground clearance19.9 in · 505 mmtwo-wheel-drive version
Front track55.9–75.6 in · 1,420–1,920 mmtwo-wheel-drive version
Rear track59.8–71.7 in · 1,520–1,820 mm
Turning radius, braked10.8 ft · 3.30 m

Source · Traktorenlexikon, “Deutz D 6005”

What oil does a D 6005 take, and how much?

A D 6005 engine takes 10.0 qt (9.5 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

D 6005 fluid capacities, grades and service intervals
SystemCapacityGradeInterval
Engine oil10.0 qt · 9.5 LSource: Traktorenlexikon, “Deutz D 6005” · single source, not independently verified——

Always confirm against the operator’s manual for your machine before service.

Which tractors compare with a D 6005?

Within 10% of its 52.2 hp at the PTO (claimed), the same type, and first built within 15 years of it.

Everything else people ask

Is a D 6005 two-wheel drive or four-wheel drive?

The Deutz D 6005 was offered in two-wheel-drive and four-wheel-drive versions.

What PTO does a D 6005 have?

A D 6005 has a independent 540 rpm rear PTO on a 29 x 34,9 x 8,7 mm (Form-A) shaft.

Where this page comes from

Compiled from Traktorenlexikon, “Deutz D 6005”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

  1. Traktorenlexikon: Deutz D 6005 — CC BY-SA 4.0, WIKIBOOKS-TL-53190 · revision 1025943. Wikibooks contributors (Traktorenlexikon). Original document
