- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1986–1996
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

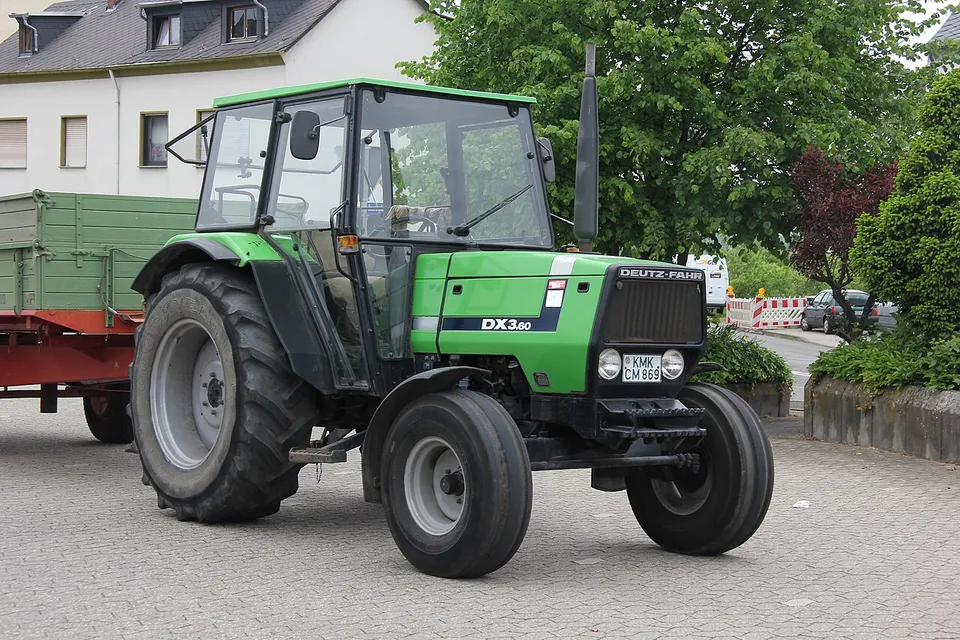

Deutz-Fahr DX 3.60 specs: hp, weight, years
KHD F4L 912 four-cylinder diesel. The manufacturer claimed 63.8 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
63.8 hp
47.6 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz-Fahr DX 3.60”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 6,338 lb
- 3-point lift
- 5,291 lb
- Hyd. flow
- 10.8 gpm
- Top speed
- 18.6–24.9 mph
Deutz-Fahr DX 3.60 specs: key facts
The Deutz-Fahr DX 3.60 was built from 1986 to 1996.
The Deutz-Fahr DX 3.60 has a claimed engine power (gross or net not stated) of 47.6 kW (63.8 hp); it has no measured PTO figure.
The Deutz-Fahr DX 3.60 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz-Fahr DX 3.60 has a KHD F4L 912 engine, a 4-cylinder 3.77 L diesel unit.Source 1
The Deutz-Fahr DX 3.60 weighs 2,875 kg (6,338 lb) unladen.
The Deutz-Fahr DX 3.60 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Deutz-Fahr DX 3.60 lifts 2,400 kg (5,291 lb) at the lower-link ends.
The hydraulic pump of the Deutz-Fahr DX 3.60 delivers 41.0 L/min (10.8 gpm).
Source · Traktorenlexikon, “Deutz-Fahr DX 3.60”
.JPG){kind=link}
How much horsepower does a DX 3.60 have?
The only figure for the DX 3.60 is 63.8 hp (47.6 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz-Fahr DX 3.60”
What engine is in a DX 3.60?
A DX 3.60 has a KHD F4L 912, a 4-cylinder 3.77 L diesel engine.
| Make & model | KHD F4L 912 |
|---|---|
| Cylinders | 4, air-cooledSource 2 |
| Displacement | 229.9 ci · 3.77 L |
| Max torque | 162 lb·ft · 220 N·m @ 1,648 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Deutz D 6006”
How much will a DX 3.60 lift, and what is its hydraulic flow?
A DX 3.60 lifts 5,291 lb (2,400 kg) at the lower-link ends.
| System | Constant flow |
|---|---|
| Pump flow | 10.8 gpm · 41.0 L/min |
| Pressure | 3,481 psi · 240 bar |
| Lift at ends | 5,291 lb · 2,400 kg |
| Rear PTO | 540/1000 rpm @ 2,202 engine rpm |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.60”
What transmission does a DX 3.60 have?
Transmission specifications for the DX 3.60 are below.
| Clutch | Independent dry double clutch |
|---|---|
| Steering | Hydrostatic Danfoss steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.60”
How much does a DX 3.60 weigh?
A DX 3.60 weighs 6,338 lb (2,875 kg) unladen.
| Unladen weight | 6,338 lb · 2,875 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 10,362 lb · 4,700 kg |
| Maximum front axle load | 4,630 lb · 2,100 kg |
| Maximum rear axle load | 7,055 lb · 3,200 kg |
| Wheelbase | 88.5 in · 2,249 mmtwo-wheel-drive version |
| Length | 145.3 in · 3,690 mm |
| Width | 84.2 in · 2,138 mm |
| Height | 92.9 in · 2,360 mm |
| Ground clearance | 18.0 in · 457 mmtwo-wheel-drive version |
| Front track | 59.1–63.0 in · 1,500–1,600 mmtwo-wheel-drive version |
| Rear track | 59.1–63.0 in · 1,500–1,600 mmthe article lists alternatives |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.60”
What oil does a DX 3.60 take, and how much?
A DX 3.60 engine takes 11.6 qt (11 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.60” · single source, not independently verified |
| Transmission | 1.1 qt · 1 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.60” · single source, not independently verified |
| Hydraulic | 14.8 qt · 14 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.60” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a DX 3.60?
Within 10% of its 63.8 hp of claimed engine power, the same type, and first built within 15 years of it.
- DEUTZ-ALLIS 606064.1 hp engine, claimed · 1985–1988Side by side with the DX 3.60 →
- Fiat 65-66 (DT)64.1 hp engine, claimed · 1985–1991Side by side with the DX 3.60 →
- Renault 70-14 SP64.1 hp engine, claimed · 1985–1989Side by side with the DX 3.60 →
- Fiat 65-56 LM (DT)64.1 hp engine, claimed · from 1988Side by side with the DX 3.60 →
- Landini 6560 L (DT) TL 37 N/M (TL-37 DT/M)64.1 hp engine, claimed · 1988–2000Side by side with the DX 3.60 →
- Landini R-6860 (DT) TL-21 N/K (TL-21 DT/K)64.1 hp engine, claimed · 1988–2000Side by side with the DX 3.60 →
Common questions about the Deutz-Fahr DX 3.60
Is a DX 3.60 two-wheel drive or four-wheel drive?
The Deutz-Fahr DX 3.60 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a DX 3.60 have?
A DX 3.60 has a 540/1000 rpm rear PTO on a 1 3/8"- 6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz D 6006”; and Traktorenlexikon, “Deutz-Fahr DX 3.60”.
