- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1984–1996
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

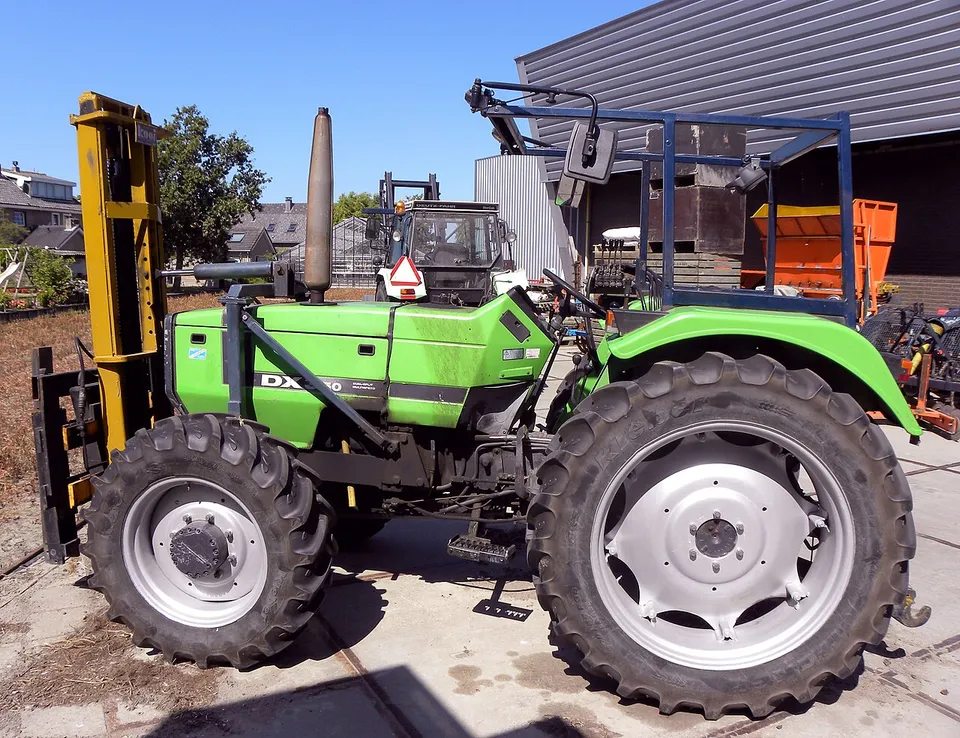

Deutz-Fahr DX 3.50 specs: hp, weight, years
KHD F3L 913 three-cylinder diesel. The manufacturer claimed 59 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
59 hp
44 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 6,019–6,878 lb
- 3-point lift
- 5,291 lb
- Hyd. flow
- 10.0 gpm
- Top speed
- 18.6–24.9 mph
Deutz-Fahr DX 3.50 specs: key facts
The Deutz-Fahr DX 3.50 was built from 1984 to 1996.
The Deutz-Fahr DX 3.50 has a claimed engine power (gross or net not stated) of 44 kW (59 hp); it has no measured PTO figure.
The Deutz-Fahr DX 3.50 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz-Fahr DX 3.50 has a KHD F3L 913 engine, a 3-cylinder 3.06 L diesel unit.Source 2
The Deutz-Fahr DX 3.50 weighs 2,730–3,120 kg (6,019–6,878 lb) unladen.
The Deutz-Fahr DX 3.50 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Deutz-Fahr DX 3.50 lifts 2,400 kg (5,291 lb) at the lower-link ends.
The hydraulic pump of the Deutz-Fahr DX 3.50 delivers 38.0 L/min (10.0 gpm).
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”
How much horsepower does a DX 3.50 have?
The only figure for the DX 3.50 is 59 hp (44 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”
What engine is in a DX 3.50?
A DX 3.50 has a KHD F3L 913, a 3-cylinder 3.06 L diesel engine.
| Make & model | KHD F3L 913Source 2 |
|---|---|
| Cylinders | 3, air-cooledSource 2 |
| Displacement | 187.0 ci · 3.06 LSource 2 |
| Max torque | 144 lb·ft · 195 N·m @ 1,550 rpm |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”
How much will a DX 3.50 lift, and what is its hydraulic flow?
A DX 3.50 lifts 5,291 lb (2,400 kg) at the lower-link ends.
| System | Constant flow |
|---|---|
| Pump flow | 10.0 gpm · 38.0 L/min |
| Lift at ends | 5,291 lb · 2,400 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 2,202 engine rpmEngages under load |
| PTO shaft | 1 3/8"-6 splines (Form I) |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”
What transmission does a DX 3.50 have?
Transmission specifications for the DX 3.50 are below.
| Clutch | Independent dry double clutch |
|---|---|
| Steering | Hydrostatic Danfoss steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”
How much does a DX 3.50 weigh?
A DX 3.50 weighs 6,019–6,878 lb (2,730–3,120 kg) unladen.
| Unladen weight | 6,019–6,878 lb · 2,730–3,120 kgtwo-wheel-drive version |
|---|---|
| Maximum permissible mass | 10,141 lb · 4,600 kg |
| Maximum rear axle load | 6,614 lb · 3,000 kg |
| Wheelbase | 79.2 in · 2,012 mmtwo-wheel-drive version |
| Length | 142.9 in · 3,630 mmtwo-wheel-drive version |
| Width | 84.2 in · 2,138 mm |
| Height | 92.5–103.1 in · 2,350–2,620 mm |
| Ground clearance | 18.0 in · 457 mmtwo-wheel-drive version |
| Front track | 59.1–63.0 in · 1,500–1,600 mmtwo-wheel-drive version |
| Rear track | 59.1–63.0 in · 1,500–1,600 mm |
| Turning radius, braked | 11.8 ft · 3.60 m |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.50”
What oil does a DX 3.50 take, and how much?
A DX 3.50 engine takes 9.5 qt (9.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.5 qt · 9.0 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.50” · single source, not independently verified |
| Transmission | 1.1 qt · 1 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.50” · single source, not independently verified |
| Hydraulic | 16.9 qt · 16 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.50” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a DX 3.50?
Within 10% of its 54.6 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- VALMET 702 (A)54.7 hp PTO, claimed · 1972–1980Side by side with the DX 3.50 →
- David Brown 1210 (A)55.0 hp PTO, claimed · 1971–1976Side by side with the DX 3.50 →
- Massey Ferguson 575 (A)54.2 hp PTO, claimed · 1976–1983Side by side with the DX 3.50 →
- Eicher Mammut 335454 hp PTO, claimed · 1974–1978Side by side with the DX 3.50 →
- David Brown 1494 (A)55.1 hp PTO, claimed · 1984–1988Side by side with the DX 3.50 →
- J.I. Case 1494 (DT)55.1 hp PTO, claimed · 1984–1985Side by side with the DX 3.50 →
Common questions about the Deutz-Fahr DX 3.50
Is a DX 3.50 two-wheel drive or four-wheel drive?
The Deutz-Fahr DX 3.50 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a DX 3.50 have?
A DX 3.50 has a independent 540/1000 rpm rear PTO on a 1 3/8"-6 splines (Form I) shaft.
