- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1984–1996
It sits on the compact/utility boundary, so either size is a fair description. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

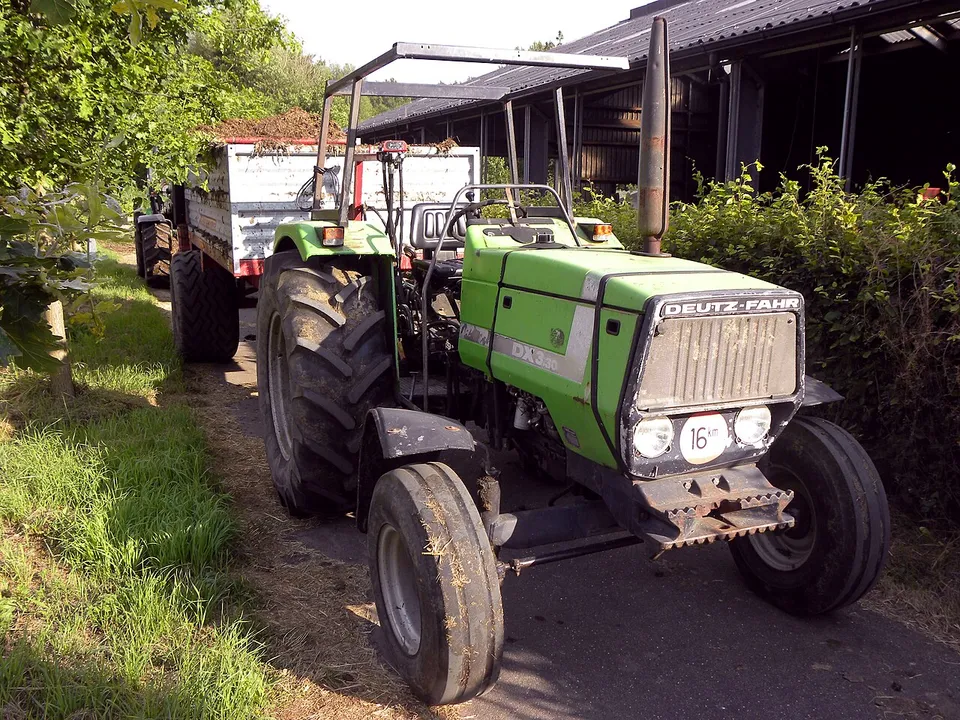

Deutz-Fahr DX 3.30 specs: hp, weight, years
KHD F3L 912 three-cylinder diesel. The manufacturer claimed 54 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
54 hp
40 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Deutz-Fahr DX 3.30”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 6,019 lb
- 3-point lift
- 4,699 lb
- Hyd. flow
- 10.0 gpm
- Top speed
- 18.6–24.9 mph
Deutz-Fahr DX 3.30 specs: key facts
The Deutz-Fahr DX 3.30 was built from 1984 to 1996.
The Deutz-Fahr DX 3.30 has a claimed engine power (gross or net not stated) of 40 kW (54 hp); it has no measured PTO figure.
The Deutz-Fahr DX 3.30 was offered in two-wheel-drive and four-wheel-drive versions.
The Deutz-Fahr DX 3.30 has a KHD F3L 912 engine, a 3-cylinder 2.83 L diesel unit.Source 1
The Deutz-Fahr DX 3.30 weighs 2,730 kg (6,019 lb) unladen.
The Deutz-Fahr DX 3.30 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Deutz-Fahr DX 3.30 lifts 2,131 kg (4,699 lb) at the lower-link ends.
The hydraulic pump of the Deutz-Fahr DX 3.30 delivers 38.0 L/min (10.0 gpm).
Source · Traktorenlexikon, “Deutz-Fahr DX 3.30”
How much horsepower does a DX 3.30 have?
The only figure for the DX 3.30 is 54 hp (40 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Deutz-Fahr DX 3.30”
What engine is in a DX 3.30?
A DX 3.30 has a KHD F3L 912, a 3-cylinder 2.83 L diesel engine.
| Make & model | KHD F3L 912 |
|---|---|
| Cylinders | 3, air-cooledSource 2 |
| Displacement | 172.5 ci · 2.83 L |
| Max torque | 119 lb·ft · 162 N·m @ 1,500 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Deutz D 4006 P”
How much will a DX 3.30 lift, and what is its hydraulic flow?
A DX 3.30 lifts 4,699 lb (2,131 kg) at the lower-link ends.
| Pump flow | 10.0 gpm · 38.0 L/min |
|---|---|
| Pressure | 3,481 psi · 240 bar |
| Lift at ends | 4,699 lb · 2,131 kg |
| Rear PTO | Independent, engine-driven, 540/1000 rpm @ 2,202 engine rpmEngages under load |
| PTO shaft | 1 3/8"-6 splines (Form-I) |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.30”
What transmission does a DX 3.30 have?
Transmission specifications for the DX 3.30 are below.
| Clutch | Independent dry double clutch |
|---|---|
| Brakes | Pedal-operated saddle disc brakes acting on the rear wheels |
| Steering | Hydrostatic Danfoss steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.30”
How much does a DX 3.30 weigh?
A DX 3.30 weighs 6,019 lb (2,730 kg) unladen.
| Unladen weight | 6,019 lb · 2,730 kgtwo-wheel-drive version |
|---|---|
| Maximum rear axle load | 6,614 lb · 3,000 kg |
| Wheelbase | 79.2 in · 2,012 mmtwo-wheel-drive version |
| Length | 137.4 in · 3,490 mmtwo-wheel-drive version |
| Width | 72.8 in · 1,848 mm |
| Height | 91.7 in · 2,330 mm |
| Ground clearance | 16.1 in · 410 mmtwo-wheel-drive version |
| Front track | 59.1–63.0 in · 1,500–1,600 mmtwo-wheel-drive version |
| Rear track | 59.1–63.0 in · 1,500–1,600 mm |
Source · Traktorenlexikon, “Deutz-Fahr DX 3.30”
What oil does a DX 3.30 take, and how much?
A DX 3.30 engine takes 9.5 qt (9.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 9.5 qt · 9.0 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.30” · single source, not independently verified |
| Transmission | 5.3 qt · 5.0 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.30” · single source, not independently verified |
| Hydraulic | 16.9 qt · 16 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.30” · single source, not independently verified |
| Front axle | 1.1 qt · 1 LSource: Traktorenlexikon, “Deutz-Fahr DX 3.30” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a DX 3.30?
Within 10% of its 47.5 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Hürlimann H-355 (A)47.7 hp PTO, claimed · 1982–1986Side by side with the DX 3.30 →
- Eicher 554S47.7 hp PTO, claimed · 1981–1986Side by side with the DX 3.30 →
- Fiat 600 (TD)47.2 hp PTO, claimed · 1971–1973Side by side with the DX 3.30 →
- SOMECA 600 (TD)47.2 hp PTO, claimed · 1971–1973Side by side with the DX 3.30 →
- WHITE 1365 (also listed as 1370)47.2 hp PTO, claimed · 1971–1975Side by side with the DX 3.30 →
- David Brown 1290 (A)47.8 hp PTO, claimed · 1980–1984Side by side with the DX 3.30 →
Common questions about the Deutz-Fahr DX 3.30
Is a DX 3.30 two-wheel drive or four-wheel drive?
The Deutz-Fahr DX 3.30 was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a DX 3.30 have?
A DX 3.30 has a independent 540/1000 rpm rear PTO on a 1 3/8"-6 splines (Form-I) shaft.
