- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1990–1995
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

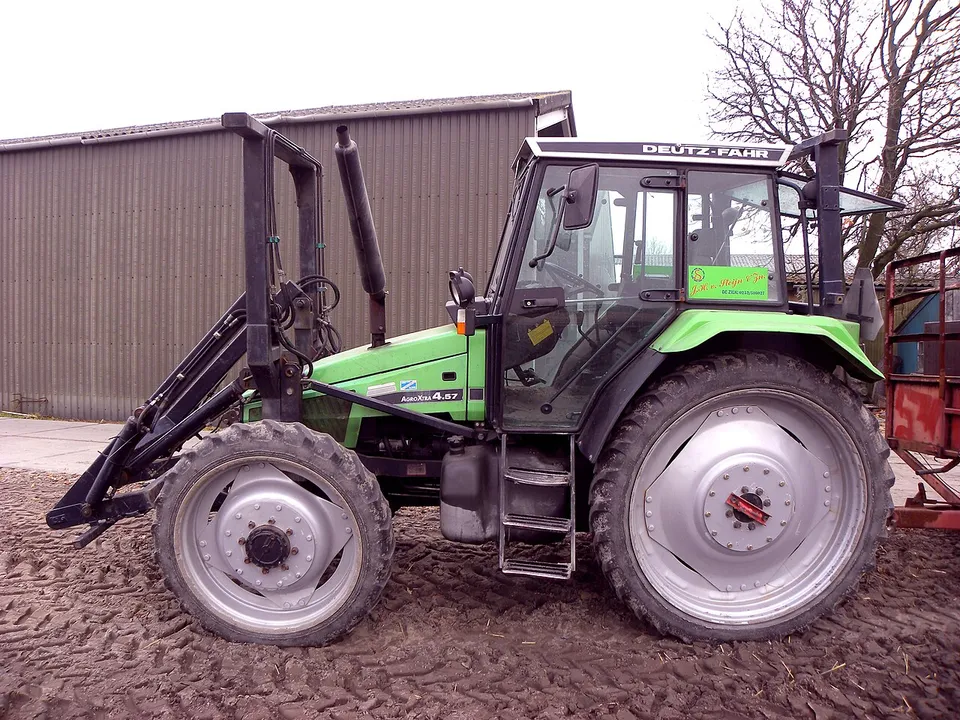

Deutz-Fahr AgroXtra 4.57 specs: hp, weight, years
KHD BF4L 913 four-cylinder diesel.
- Weight
- 8,333 lb
- 3-point lift
- 11,464 lb
- Hyd. flow
- 12.5 gpm
- Top speed
- 18.6–24.9 mph
Deutz-Fahr AgroXtra 4.57 specs: key facts
The Deutz-Fahr AgroXtra 4.57 was built from 1990 to 1995.
The Deutz-Fahr AgroXtra 4.57 is four-wheel drive (4WD).
The Deutz-Fahr AgroXtra 4.57 has a KHD BF4L 913 engine, a 4-cylinder 4.09 L diesel unit.Source 1
The Deutz-Fahr AgroXtra 4.57 weighs 3,780 kg (8,333 lb) unladen.
The Deutz-Fahr AgroXtra 4.57 has an independent rear PTO running at 540/1000/750 rpm.
The three-point hitch of the Deutz-Fahr AgroXtra 4.57 lifts 5,200 kg (11,464 lb) at the lower-link ends.
The hydraulic pump of the Deutz-Fahr AgroXtra 4.57 delivers 47.3 L/min (12.5 gpm).
Source · Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57”
How much horsepower does an AgroXtra 4.57 have?
No sourced power figure for the AgroXtra 4.57 is on record yet.
What engine is in an AgroXtra 4.57?
An AgroXtra 4.57 has a KHD BF4L 913, a 4-cylinder 4.09 L diesel engine.
| Make & model | KHD BF4L 913 |
|---|---|
| Cylinders | 4, air-cooledSource 2 |
| Displacement | 249.3 ci · 4.09 L |
| Max torque | 251 lb·ft · 340 N·m @ 1,600 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Deutz-Fahr AgroStar 4.78”
How much will an AgroXtra 4.57 lift, and what is its hydraulic flow?
An AgroXtra 4.57 lifts 11,464 lb (5,200 kg) at the lower-link ends of its Category 2 three-point hitch.
| Pump flow | 12.5 gpm · 47.3 L/min |
|---|---|
| Hitch category | Category 2 |
| Lift at ends | 11,464 lb · 5,200 kg |
| Rear PTO | Independent, 540/1000/750 rpm @ 2,121 engine rpmEngages under load |
| PTO shaft | 1 3/8"- 6 splines |
Source · Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57”
What transmission does an AgroXtra 4.57 have?
Transmission specifications for the AgroXtra 4.57 are below.
| Clutch | Independent dry double clutch |
|---|---|
| Steering | Hydrostatic ZF steering |
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57”
How much does an AgroXtra 4.57 weigh?
An AgroXtra 4.57 weighs 8,333 lb (3,780 kg) unladen.
| Unladen weight | 8,333 lb · 3,780 kg |
|---|---|
| Maximum permissible mass | 14,551 lb · 6,600 kg |
| Maximum front axle load | 5,512 lb · 2,500 kg |
| Maximum rear axle load | 10,362 lb · 4,700 kg |
| Wheelbase | 96.1 in · 2,440 mm |
| Length | 165.9 in · 4,215 mm |
| Width | 73.6 in · 1,870 mm |
| Height | 103.9 in · 2,640 mm |
| Ground clearance | 17.7 in · 450 mm |
| Front track | 59.1–65.0 in · 1,500–1,650 mm |
| Rear track | 63.0–66.9 in · 1,600–1,700 mm |
| Turning radius, braked | 14.2 ft · 4.32 m |
Source · Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57”
What oil does an AgroXtra 4.57 take, and how much?
An AgroXtra 4.57 engine takes 11.6 qt (11 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.6 qt · 11 LSource: Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57” · single source, not independently verified |
| Transmission | 22.7 qt · 21.5 LSource: Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with an AgroXtra 4.57?
Within 10% of its 83 hp at the PTO as the maker claimed it, with no laboratory test on file, the same type, and first built within 15 years of it.
- Case-IH JX1090U83.3 hp PTO, measured · 2004–2008Side by side with the AgroXtra 4.57 →
- Massey Ferguson 3080 (A)84.3 hp PTO, claimed · 1989–1997Side by side with the AgroXtra 4.57 →
- Bührer Komfort 6105 (A)84.4 hp PTO, claimed · 1975–1978Side by side with the AgroXtra 4.57 →
- Massey Ferguson 298 (A)81.5 hp PTO, claimed · 1979–1986Side by side with the AgroXtra 4.57 →
- Fiat 880-5 (DT)81.0 hp PTO, claimed · 1980–1984Side by side with the AgroXtra 4.57 →
- SOMECA 880-5 (TD)81.0 hp PTO, claimed · 1980–1983Side by side with the AgroXtra 4.57 →
Common questions about the Deutz-Fahr AgroXtra 4.57
Is an AgroXtra 4.57 two-wheel drive or four-wheel drive?
The Deutz-Fahr AgroXtra 4.57 is four-wheel drive (4WD).
What PTO does an AgroXtra 4.57 have?
An AgroXtra 4.57 has a independent 540/1000/750 rpm rear PTO on a 1 3/8"- 6 splines shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “Deutz-Fahr AgroStar 4.78”; and Traktorenlexikon, “Deutz-Fahr AgroXtra 4.57”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Deutz-Fahr AgroStar 4.78 — CC BY-SA 4.0, WIKIBOOKS-TL-79387 · revision 1007751. Wikibooks contributors (Traktorenlexikon). Original document
- Traktorenlexikon: Deutz-Fahr AgroXtra 4.57 — CC BY-SA 4.0, WIKIBOOKS-TL-88579 · revision 1081526. Wikibooks contributors (Traktorenlexikon). Original document
