- Rigid chassis
- WhichTractor size: Utility
- Lab tested ×1
- 2004–2008
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

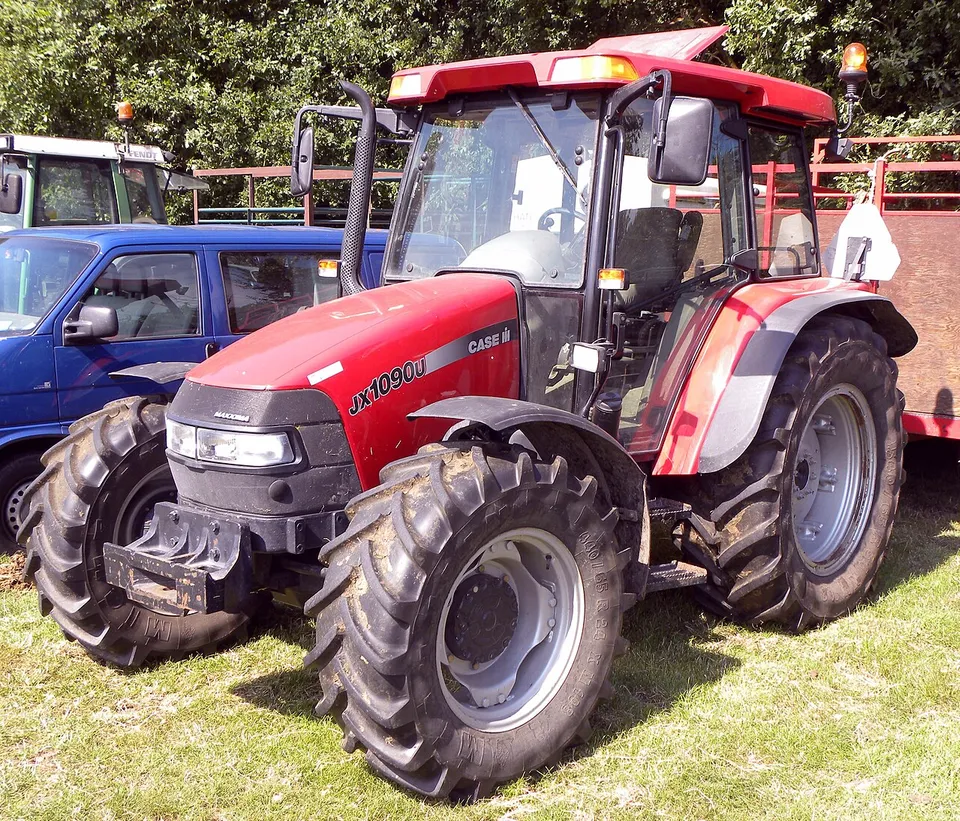

Case-IH JX1090U specs: hp, weight, years
CNH UK Ltd. F4CE0454E*D681 four-cylinder or IVECO-NEF F4CE 0454 E diesel. OECD put one on a dynamometer and measured 83.3 hp at the power take-off — the number to size an implement from.
Measured at the PTO shaft
83.3 hp
Source · OECD Test 2279, measured
- Drawbar hp
- 60.7
Case-IH JX1090U specs: key facts
The Case-IH JX1090U was built from 2004 to 2008 and produced 62.1 kW (83.3 hp) at the PTO, measured on OECD Test 2279.Source 1
The claimed engine power (gross or net not stated) of the Case-IH JX1090U is 66.9–66.9 kW (89.7–89.7 hp), depending on configuration.
The Case-IH JX1090U was offered in two-wheel-drive and four-wheel-drive versions.
The Case-IH JX1090U has a CNH UK Ltd. F4CE0454E*D681 engine, a 4-cylinder 4.49 L unit.Source 1
The Case-IH JX1090U weighs 3,855–4,255 kg (8,499–9,381 lb) unladen, depending on configuration.
The Case-IH JX1090U has an independent rear PTO running at 540E/540/1000 rpm.
The three-point hitch of the Case-IH JX1090U lifts 5,060 kg (11,155 lb) at the lower-link ends.
The hydraulic pump of the Case-IH JX1090U delivers 62.3 L/min (16.5 gpm).
Source · Traktorenlexikon, “Case-IH JX1090U”
How much horsepower does a JX1090U have at the PTO?
At the PTO shaft a JX1090U has 83.3 hp (62.1 kW), measured on OECD Test 2279.
Sources · OECD test report 2279, 2005; Traktorenlexikon, “Case-IH JX1090U”
What engine is in a JX1090U?
A JX1090U has a CNH UK Ltd. F4CE0454E*D681, a 4-cylinder 4.49 L engine. Diesel tractors have a IVECO-NEF F4CE 0454 E. Diesel tractors have a IVECO-NEF F4CE 0454 E.
| Make & model | CNH UK Ltd. F4CE0454E*D681 |
|---|---|
| Cylinders | 4 |
| Displacement | 273.7 ci · 4.49 L |
| Aspiration | supercharged |
| Max torque | 253 lb·ft · 342.7 N·m @ 1,402 rpm |
| Injection | Direct injectionSource 2On record for 1 of 3 configurations |
Source · OECD test report 2279, 2005
How much will a JX1090U lift?
Hydraulic and PTO specifications for the JX1090U are below.
| System | Load sensingOn record for 1 of 3 configurations |
|---|---|
| Pump flow | 16.5 gpm · 62.3 L/minOn record for 1 of 3 configurations |
| Pressure | 2,031 psi · 140 barOn record for 1 of 3 configurations |
| Lift at ends | 11,155 lb · 5,060 kgOn record for 1 of 3 configurations |
| Rear PTO | 540E/540/1000 rpm |
| PTO shaft | 35 mm, 6 splines / 35 mm, 21 splinesSource 1 |
Source · Traktorenlexikon, “Case-IH JX1090U”
What transmission does a JX1090U have?
Transmission specifications for the JX1090U are below.
| Clutch | Dry LuK double clutchOn record for 1 of 3 configurations |
|---|---|
| Top speed | 18.6–24.9 mph · 30–40 km/hOn record for 1 of 3 configurationsthe article lists alternatives |
Source · Traktorenlexikon, “Case-IH JX1090U”
How much does a JX1090U weigh?
Dimensions for the JX1090U are below; no sourced weight is on record yet.
| Unladen weight | 8,499–9,381 lb · 3,855–4,255 kgVaries by configuration: 3,855 kg or 4,255 kgOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version |
|---|---|
| Maximum permissible mass | 13,669 lb · 6,200 kgOn record for 1 of 3 configurations |
| Wheelbase | 91.1–92.2 in · 2,314–2,342 mmVaries by configuration: 2,314 mm or 2,342 mmOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version |
| Length | 154.5 in · 3,925 mmOn record for 1 of 3 configurations |
| Width | 79.2–107.2 in · 2,012–2,724 mmOn record for 1 of 3 configurations |
| Height | 102.0 in · 2,590 mmOn record for 1 of 3 configurations |
| Ground clearance | 14.8–18.0 in · 376–456 mmVaries by configuration: 376 mm or 456 mmOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version |
| Front track | 55.4–85.6 in · 1,407–2,175 mmVaries by configuration: 1,407–2,175 mm or 1,425–2,133 mmOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version |
| Rear track | 60.4–84.1 in · 1,534–2,135 mmOn record for 1 of 3 configurations |
| Turning radius, braked | 12.4–13.6 ft · 3.77–4.15 mVaries by configuration: 3.77 m or 4.15 mOn record for 2 of 3 configurationstwo-wheel-drive versionfour-wheel-drive version |
Source · Traktorenlexikon, “Case-IH JX1090U”
What oil does a JX1090U take, and how much?
A JX1090U engine takes 10.6 qt (10.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 10.6 qt · 10.0 LSource: Traktorenlexikon, “Case-IH JX1090U” · single source, not independently verified |
| Hydraulic | 63.9 qt · 60.5 LSource: Traktorenlexikon, “Case-IH JX1090U” · single source, not independently verified |
| Front axle | 7.4 qt · 7.0 LSource: Traktorenlexikon, “Case-IH JX1090U” · single source, not independently verified |
| Cooling system | 16.9 qt · 16.0 LSource: Traktorenlexikon, “Case-IH JX1090U” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
What did OECD measure on Test 2279?
OECD Test 2279 recorded 83.3 hp at the PTO and 60.7 hp at the drawbar. Configuration as printed: “4 WD · T3C6T1 - 12 speeds - 40 km/h”.
| PTO power, maximum | 83.3 hp at 1,007 PTO rpm · 62.1 kW @ 2,398 engine rpm |
|---|---|
| PTO power, rated engine speed | 82.6 hp at 1,051 PTO rpm · 61.6 kW @ 2,502 engine rpm |
| PTO power, standard PTO speed | 83.3 hp at 1,007 PTO rpm · 62.1 kW @ 2,398 engine rpm |
| Drawbar power, unballasted | 60.7 hp · 45.3 kW |
Source · OECD test report 2279, 2005
How much fuel does a JX1090U burn per hour?
Measured on OECD Test 2279 (tested as the JX1090U (4 WD)), at each condition the laboratory recorded.
Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).
| Test condition | Fuel per hour |
|---|---|
| Maximum PTO powerPTO 62.1 kW (83.3 hp) at 1,007 rpm | 19.70 L/h 5.20 gal/h |
| Rated engine speedPTO 61.6 kW (82.6 hp) at 1,051 rpm | 19.98 L/h 5.28 gal/h |
| Standard PTO speedPTO 62.1 kW (83.3 hp) at 1,007 rpm | 19.70 L/h 5.20 gal/h |
| 75% load, 50% load | Not on record for this test |
Source · OECD Test 2279
Which tractors compare with a JX1090U?
Within 10% of its 83.3 hp measured at the PTO, the same type, and first built within 15 years of it.
- Deutz-Fahr AgroXtra 4.5783 hp PTO, claimed · 1990–1995Side by side with the JX1090U →
- Massey Ferguson 3080 (A)84.3 hp PTO, claimed · 1989–1997Side by side with the JX1090U →
- Deutz-Fahr Agrofarm 43082 hp PTO, claimed · from 2008Side by side with the JX1090U →
- Deutz-Fahr AgroPrima 4.5686 hp PTO, claimed · 1991–1995Side by side with the JX1090U →
- Fendt 209S86.3 hp PTO, claimed · from 2003Side by side with the JX1090U →
- Deutz-Fahr AgroXtra 4.4779 hp PTO, claimed · 1993–1995Side by side with the JX1090U →
Common questions about the Case-IH JX1090U
Is a JX1090U two-wheel drive or four-wheel drive?
The Case-IH JX1090U was offered in two-wheel-drive and four-wheel-drive versions.
What PTO does a JX1090U have?
A JX1090U has a 540E/540/1000 rpm rear PTO on a 35 mm, 6 splines / 35 mm, 21 splines shaft.
What implements will a JX1090U run?
Size PTO implements from the measured 83.3 hp at the shaft.
