Standard layout, Rigid chassis
WhichTractor size: Standard-size
Lab tested ×1
1997–2002

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Case-IH MX 120 specs: hp, weight, years

Name: Case-IH MX 120
Brand: Case-IH

CDC 6T-590 six-cylinder or CUMMINS CDC 6T-590 diesel. The brochure said 118.4 horsepower. OECD strapped one to a dynamometer and got 109.6 at the power take-off — and that is the number to size an implement from. Compared at the engine's rated speed, where the brochure figure is quoted, the shaft gave 106.2 hp — 10.3% below the claim.

Measured at the PTO shaft

109.6 hp

Brochure claimed ~~118.4 hp~~ difference −7%

Source · OECD Test 1678, measured

Why the tested figure is lower than the brochure

Drawbar hp: 95.6
Weight: 13,812 lb
3-point lift: 11,521 lb
Hyd. flow: 28.8 gpm
Top speed: 18.6–24.9 mph

Case-IH MX 120 specs: key facts

The Case-IH MX 120 was built from 1997 to 2002 and produced 81.7 kW (109.6 hp) at the PTO, measured on OECD Test 1678.^{Source 2}
The claimed engine power (gross or net not stated) of the Case-IH MX 120 is 88.3 kW (118.4 hp); that is a claim for the engine, not a measurement at the PTO.
The Case-IH MX 120 is four-wheel drive (4WD).^{Source 1}
The Case-IH MX 120 has a CDC 6T-590 engine, a 6-cylinder 5.88 L unit.^{Source 1}
The Case-IH MX 120 weighs 6,265 kg (13,812 lb) unladen.
The Case-IH MX 120 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Case-IH MX 120 lifts 5,226 kg (11,521 lb) at the lower-link ends.
The hydraulic pump of the Case-IH MX 120 delivers 109 L/min (28.8 gpm).

Source · Traktorenlexikon, “Case-IH MX120”

How does the MX 120 compare with its class?

Worth knowing:
An unladen mass of 6,265 kg is high for its class — 20% above the median of 5,230 kg across the 284 machines within 10% of its power that hold this figure.

Derived by WhichTractor from 284 comparable records. How we work this out

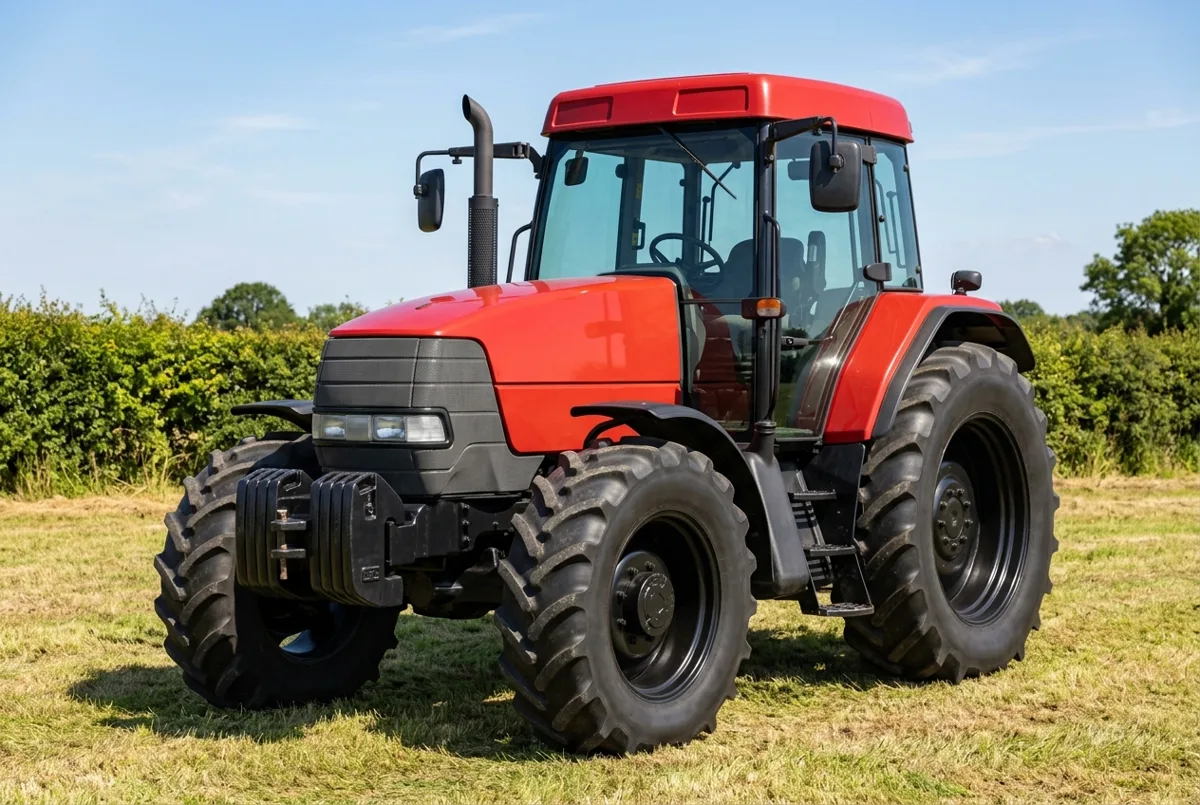

Illustration of the 1997–2002 Case-IH MX 120, a 118 hp farm tractor, a drawing generated from its specification record — Illustration — not a photograph

How much horsepower does an MX 120 have at the PTO?

At the PTO shaft an MX 120 has 109.6 hp (81.7 kW), measured on OECD Test 1678 — against 118.4 hp claimed for the engine. Between the flywheel and the PTO you lose the fan, the alternator, the hydraulic pump and the transmission — which is why the brochure figure is the wrong one to size an implement from.

Engine, claimed (gross/net not stated): 118.4 hp
PTO, measured: 109.6 hp
Drawbar, measured (unballasted): 95.6 hp

Sources · OECD test report 1678, 1997; Traktorenlexikon, “Case-IH MX120”

What engine is in an MX 120?

An MX 120 has a CDC 6T-590, a 6-cylinder 5.88 L engine. Diesel tractors have a CUMMINS CDC 6T-590.

Engine — MX 120 engine specifications
Make & model	CDC 6T-590
Cylinders	6, liquid-cooled^{Source 3}
Displacement	359.0 ci · 5.88 L
Aspiration	supercharged
Max torque	364 lb·ft · 493 N·m @ 1,204 rpm^{Source 3}
Injection	direct injection^{Source 3}
Electrical system	12 V^{Source 3}

Source · OECD test report 1678, 1997

How much will an MX 120 lift, and what is its hydraulic flow?

An MX 120 lifts 11,521 lb (5,226 kg) at the lower-link ends of its Category 2 three-point hitch.

Hydraulics & PTO — MX 120 hydraulics and PTO specifications
System	Closed centre^{Source 1}
Pump flow	28.8 gpm · 109 L/min
Pressure	3,408 psi · 235 bar
Hitch category	Category 2
Lift at ends	11,521 lb · 5,226 kg
Rear PTO	540/1000 rpm @ 1,875 engine rpm
PTO shaft	1 3/8"- 6 splines or 1 3/8"- 21 spline

Source · Traktorenlexikon, “Case-IH MX120”

What transmission does an MX 120 have?

Transmission specifications for the MX 120 are below.

Transmission — MX 120 transmission specifications
Clutch	Wet Case-IH multi-plate clutch integrated in the transmission
Brakes	Pedal-operated hydraulic wet Case-IH full disc brake acting on differential side shafts
Steering	Hydrostatic Danfoss or Eaton steering[class_1_2b@1: the source names alternative makers; the earlier English named only the first]
Top speed	18.6–24.9 mph · 30–40 km/hthe article lists alternatives

Source · Traktorenlexikon, “Case-IH MX120”

How much does an MX 120 weigh?

An MX 120 weighs 13,812 lb (6,265 kg) unladen.

Weights & dimensions — MX 120 weights and dimensions
Unladen weight	13,812 lb · 6,265 kg
Maximum permissible mass	19,842 lb · 9,000 kg
Maximum front axle load	9,921 lb · 4,500 kg
Maximum rear axle load	14,551 lb · 6,600 kg
Wheelbase	106.3 in · 2,700 mm
Length	184.1 in · 4,675 mm
Width	92.9 in · 2,360 mm
Height	116.9 in · 2,970 mm
Ground clearance	15.4 in · 390 mm
Front track	60.2–76.0 in · 1,530–1,930 mmWikibooks gives one track for both axles
Rear track	60.2–76.0 in · 1,530–1,930 mmWikibooks gives one track for both axles

Source · Traktorenlexikon, “Case-IH MX120”

What oil does an MX 120 take, and how much?

An MX 120 engine takes 15.9 qt (15.0 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.

MX 120 fluid capacities, grades and service intervals
System	Capacity
Engine oil	15.9 qt · 15.0 LSource: Traktorenlexikon, “Case-IH MX120” · single source, not independently verified
Transmission & hydraulic	80.3 qt · 76.0 LSource: Traktorenlexikon, “Case-IH MX120” · single source, not independently verified
Front axle	6.3 qt · 6.0 LSource: Traktorenlexikon, “Case-IH MX120” · single source, not independently verified
Cooling system	21.1 qt · 20.0 LSource: Traktorenlexikon, “Case-IH MX120” · single source, not independently verified

Always confirm against the operator’s manual for your machine before service.

What did OECD measure on Test 1678?

OECD Test 1678 recorded 109.6 hp at the PTO and 95.6 hp at the drawbar. Configuration as printed: “4 WD · MAXXUM - 16 speeds - 30 km/h”.

Test results — OECD Test 1678, MX 120: measured results
PTO power, maximum	109.6 hp at 905 PTO rpm · 81.7 kW @ 2,000 engine rpm
PTO power, rated engine speed	106.2 hp at 996 PTO rpm · 79.2 kW @ 2,200 engine rpm
PTO power, standard PTO speed	106.2 hp at 996 PTO rpm · 79.2 kW @ 2,200 engine rpm
Drawbar power, unballasted	95.6 hp · 71.3 kW

Source · OECD test report 1678, 1997

How much fuel does an MX 120 burn per hour?

Measured on OECD Test 1678 (tested as the MX 120 (4 WD)), at each condition the laboratory recorded.

Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).

Your fuel price per litre

Fuel use measured on OECD Test 1678
Test condition	Fuel per hour
Maximum PTO powerPTO 81.7 kW (109.6 hp) at 905 rpm	23.64 L/h 6.25 gal/h
Rated engine speedPTO 79.2 kW (106.2 hp) at 996 rpm	24.46 L/h 6.46 gal/h
Standard PTO speedPTO 79.2 kW (106.2 hp) at 996 rpm	24.46 L/h 6.46 gal/h
75% load, 50% load	Not on record for this test

Source · OECD Test 1678

Which tractors compare with an MX 120?

Within 10% of its 109.6 hp measured at the PTO, the same type, and first built within 15 years of it.

Common questions about the Case-IH MX 120

Is an MX 120 two-wheel drive or four-wheel drive?

The Case-IH MX 120 is four-wheel drive (4WD).

What PTO does an MX 120 have?

An MX 120 has a 540/1000 rpm rear PTO on a 1 3/8"- 6 splines or 1 3/8"- 21 spline shaft.

What implements will an MX 120 run?

Size PTO implements from the measured 109.6 hp at the shaft, not the brochure figure.

Sources and how this page was built

Compiled from OECD tractor test report 1678; Traktorenlexikon, “Case-IH MX135”; and Traktorenlexikon, “Case-IH MX120”.
