Standard layout, Rigid chassis
WhichTractor size: Standard-size
Lab tested ×3
1997–2002

WhichTractor size, not the maker’s category

Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

Case-IH MX 110 Full specifications

Name: Case-IH MX 110
Brand: Case-IH

CDC 6T-590 six-cylinder or CUMMINS CDC 6T-590 diesel. OECD put one on a dynamometer and measured 104.3 hp at the power take-off — the number to size an implement from.

Measured at the PTO shaft

104.3 hp

Source · OECD Test 1679, measured

Drawbar hp: 86.1
Weight: 13,812 lb
3-point lift: 12,950 lb
Hyd. flow: 28.8 gpm
Top speed: 18.6–24.9 mph

Case-IH MX 110 specs: key facts

The Case-IH MX 110 was built from 1997 to 2002 and produced 77.8 kW (104.3 hp) at the PTO, measured on OECD Test 1679.^{Source 2}
The Case-IH MX 110 is four-wheel drive (4WD).^{Source 2,Source 4,Source 5}
The Case-IH MX 110 has a CDC 6T-590 engine, a 6-cylinder 5.88 L unit.^{Source 1}
The Case-IH MX 110 weighs 6,265 kg (13,812 lb) unladen.
The Case-IH MX 110 has an independent rear PTO running at 540/1000 rpm.
The three-point hitch of the Case-IH MX 110 lifts 5,874 kg (12,950 lb) at the lower-link ends.
The hydraulic pump of the Case-IH MX 110 delivers 109.0 L/min (28.8 gpm).

Source · Traktorenlexikon, “Case-IH MX110”

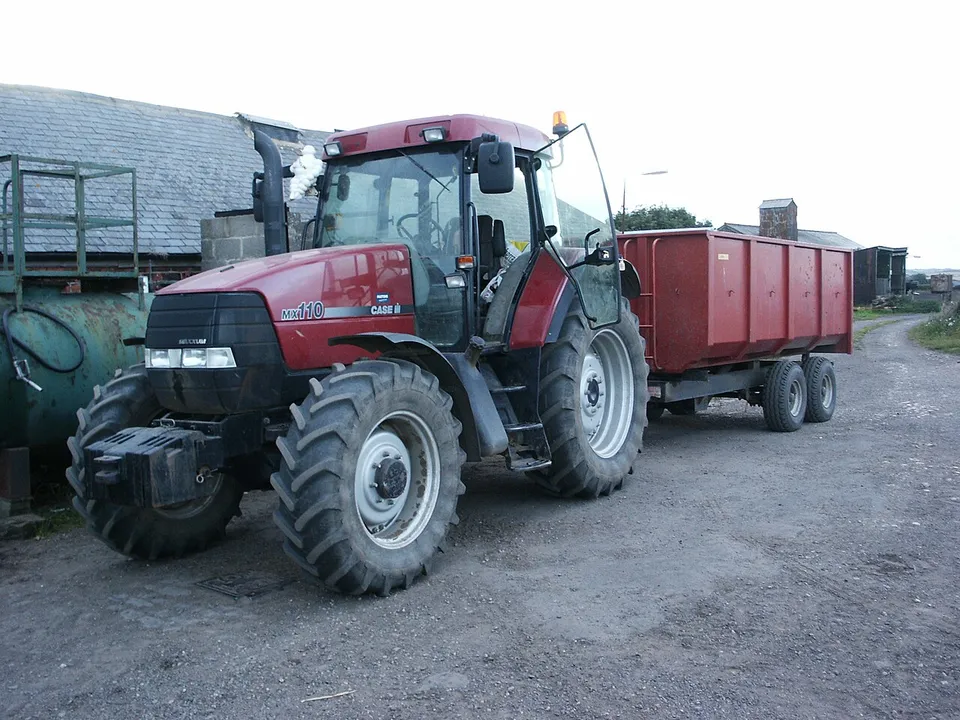

Case-IH MX 110 tractor — Photo: Colin, CC BY-SA 2.0 via Wikimedia Commons · Wrong photo?

How much horsepower does an MX 110 have at the PTO?

At the PTO shaft an MX 110 has 104.3 hp (77.8 kW), measured on OECD Test 1679. The CDC 6T-590 gave 100.2 hp at the PTO on Test 1680. The CDC 6T-590 gave 100.4 hp at the PTO on Test 1691.

PTO, measured: 104.3 hp
Drawbar, measured (unballasted): 86.1 hp

Sources · OECD test report 1679, 1997; OECD test report 1679, 1997; OECD test report 1680, 1997; OECD test report 1691, 1997

What engine is in an MX 110?

An MX 110 has a CDC 6T-590, a 6-cylinder 5.88 L engine. Diesel tractors have a CUMMINS CDC 6T-590.

Engine — MX 110 engine specifications
Make & model	CDC 6T-590
Cylinders	6, liquid-cooled^{Source 7}
Displacement	359.0 ci · 5.88 L
Aspiration	supercharged
Max torque	335 lb·ft · 454 N·m @ 1,102 rpm^{Source 7}
Injection	direct injection^{Source 7}
Electrical system	12 V^{Source 7}

Source · OECD test report 1678, 1997

How much will an MX 110 lift, and what is its hydraulic flow?

An MX 110 lifts 12,950 lb (5,874 kg) at the lower-link ends of its Category 2 three-point hitch.

Hydraulics & PTO — MX 110 hydraulics and PTO specifications
System	Closed centre^{Source 6}
Pump flow	28.8 gpm · 109.0 L/min
Pressure	3,408 psi · 235 bar
Hitch category	Category 2
Lift at ends	12,950 lb · 5,874 kg
Rear PTO	Independent, engine-driven, 540/1000 rpm @ 1,875 engine rpmEngages under load
PTO shaft	35 mm, 6 splines / 35 mm, 21 splines^{Source 2}

Source · Traktorenlexikon, “Case-IH MX110”

What transmission does an MX 110 have?

Transmission specifications for the MX 110 are below.

Transmission — MX 110 transmission specifications
Clutch	Wet Case-IH multi-disc clutch integrated in the transmission
Steering	Hydrostatic Danfoss or Eaton steering[class_1_2b@1: the source names alternative makers; the earlier English named only the first]
Top speed	18.6–24.9 mph · 30–40 km/hthe article lists alternatives

Source · Traktorenlexikon, “Case-IH MX110”

How much does an MX 110 weigh?

An MX 110 weighs 13,812 lb (6,265 kg) unladen.

Weights & dimensions — MX 110 weights and dimensions
Unladen weight	13,812 lb · 6,265 kg
Maximum permissible mass	19,842 lb · 9,000 kg
Maximum front axle load	9,921 lb · 4,500 kg
Maximum rear axle load	14,551 lb · 6,600 kg
Wheelbase	106.3 in · 2,700 mm
Length	184.1 in · 4,675 mm
Width	92.9 in · 2,360 mm
Height	116.9 in · 2,970 mm
Ground clearance	15.9 in · 405 mm
Front track	60.2–76.0 in · 1,530–1,930 mmWikibooks gives one track for both axles
Rear track	60.2–76.0 in · 1,530–1,930 mmWikibooks gives one track for both axles

Source · Traktorenlexikon, “Case-IH MX110”

What did OECD measure on Test 1679?

OECD Test 1679 recorded 104.3 hp at the PTO and 86.1 hp at the drawbar. Configuration as printed: “4 WD · MAXXUM - 16 speeds - 30 km/h”.

Test results — OECD Test 1679, MX 110: measured results
PTO power, maximum	104.3 hp at 860 PTO rpm · 77.8 kW @ 1,900 engine rpm
PTO power, rated engine speed	97.1 hp at 996 PTO rpm · 72.4 kW @ 2,200 engine rpm^{Source 3}
PTO power, standard PTO speed	97.1 hp at 996 PTO rpm · 72.4 kW @ 2,200 engine rpm
Drawbar power, unballasted	86.1 hp · 64.2 kW^{Source 3}

Source · OECD test report 1679, 1997

How much fuel does an MX 110 burn per hour?

Measured on OECD Test 1679 (tested as the MX 110 (4 WD)), at each condition the laboratory recorded.

2 other tests of this model are on record; figures differ between configurations.

Cost per hour = fuel used per hour × your fuel price (per litre, or per US gallon for the gal/h figure).

Your fuel price per litre

Fuel use measured on OECD Test 1679
Test condition	Fuel per hour
Maximum PTO powerPTO 77.8 kW (104.3 hp) at 860 rpm	22.24 L/h 5.88 gal/h
Rated engine speedPTO 72.4 kW (97.1 hp) at 996 rpm	22.55 L/h 5.96 gal/h
Standard PTO speedPTO 72.4 kW (97.1 hp) at 996 rpm	22.55 L/h 5.96 gal/h
75% load, 50% load	Not on record for this test

Source · OECD Test 1679

Which tractors compare with an MX 110?

Within 10% of its 104.3 hp at the PTO (measured), the same type, and first built within 15 years of it.

Everything else people ask

Is an MX 110 two-wheel drive or four-wheel drive?

The Case-IH MX 110 is four-wheel drive (4WD).

What PTO does an MX 110 have?

An MX 110 has a independent 540/1000 rpm rear PTO on a 35 mm, 6 splines / 35 mm, 21 splines shaft.

What implements will an MX 110 run?

Size PTO implements from the measured 104.3 hp at the shaft.

Where this page comes from

Compiled from OECD tractor test reports 1679, 1680 and 1691; Traktorenlexikon, “Case-IH MX135”; and Traktorenlexikon, “Case-IH MX110”.

Last verified

Not yet verified

Spotted an error?

Sources

Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution

OECD Code 2 test report 1 678/1: Case IH MX 120 — Licence not stated by the publisher; facts cited, OECD-1678 · published 1997-10-02 · retrieved 2026-09-14. OECD; testing station DLG, Gross-Umstadt, Germany. Original document
OECD Code 2 test report 1 679/1: Case IH MX 110 — Licence not stated by the publisher; facts cited, OECD-1679 · published 1997-10-02 · retrieved 2026-09-14. OECD; testing station DLG, Gross-Umstadt, Germany. Original document
OECD Code 2 test report 1 679/2: Case IH MX 110 — Licence not stated by the publisher; facts cited, OECD-1679 · published 1997-10-02 · retrieved 2026-09-14. OECD; testing station DLG, Gross-Umstadt, Germany. Original document
OECD Code 2 test report 1 680: Case IH MX 110 — Licence not stated by the publisher; facts cited, OECD-1680 · published 1997-10-03 · retrieved 2026-09-14. OECD; testing station DLG, Gross-Umstadt, Germany. Original document
OECD Code 2 test report 1 691/1: Case IH MX 110 — Licence not stated by the publisher; facts cited, OECD-1691 · published 1997-10-21 · retrieved 2026-09-14. OECD; testing station DLG, Gross-Umstadt, Germany. Original document
OECD Code 2 test report 1 691/2: Case IH MX 110 — Licence not stated by the publisher; facts cited, OECD-1691 · published 1997-10-21 · retrieved 2026-09-14. OECD; testing station DLG, Gross-Umstadt, Germany. Original document
Traktorenlexikon: Case-IH MX110 — CC BY-SA 4.0, WIKIBOOKS-TL-89519 · revision 980921. Wikibooks contributors (Traktorenlexikon). Original document
Traktorenlexikon: Case-IH MX135 — CC BY-SA 4.0, WIKIBOOKS-TL-29103 · revision 1010867. Wikibooks contributors (Traktorenlexikon). Original document
