- Rigid chassis
- WhichTractor size: Compact
- Not independently tested
- 2001–2004
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

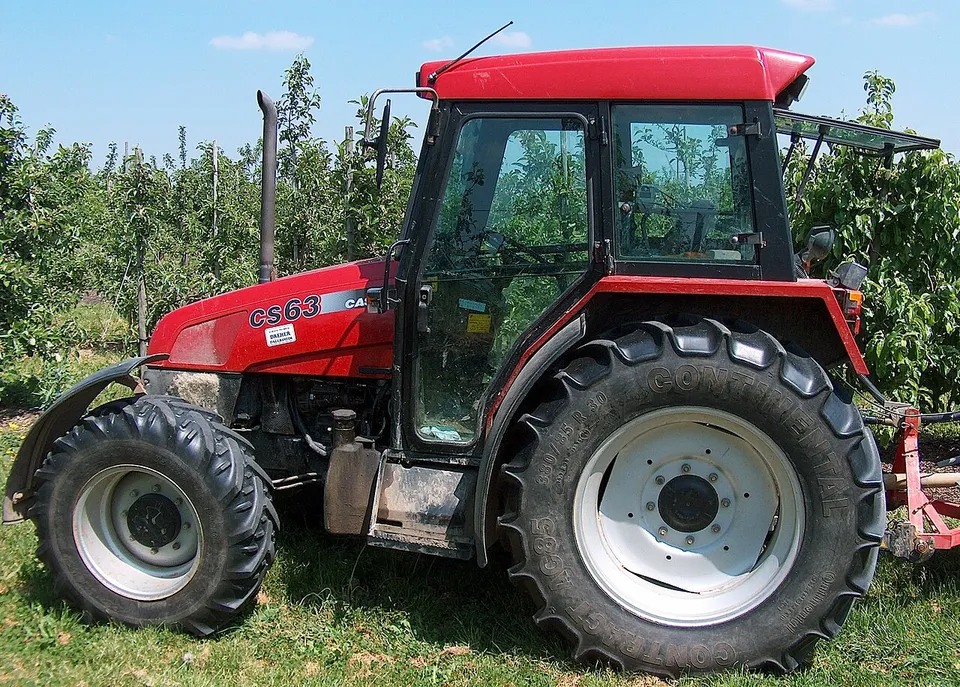

Case-IH CS-63 Full specifications
PERKINS 903-27 T three-cylinder diesel. The manufacturer claimed 62.2 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
62.2 hp
46.4 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Case-IH CS63/a”, claimed
- Weight
- 5,490 lb
- 3-point lift
- 5,556 lb
- Hyd. flow
- 8.1 gpm
- Top speed
- 18.6–24.9 mph
Case-IH CS-63 specs: key facts
The Case-IH CS-63 was built from 2001 to 2004.
The Case-IH CS-63 has a claimed engine power (gross or net not stated) of 46.4 kW (62.2 hp); it has no measured PTO figure.
The Case-IH CS-63 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
The Case-IH CS-63 has a PERKINS 903-27 T engine, a 3-cylinder 2.70 L diesel unit.Source 1
The Case-IH CS-63 weighs 2,490 kg (5,490 lb) unladen.
The Case-IH CS-63 has a rear PTO running at 540/1000 rpm.
The three-point hitch of the Case-IH CS-63 lifts 2,520 kg (5,556 lb) at the lower-link ends.
The hydraulic pump of the Case-IH CS-63 delivers 30.8 L/min (8.1 gpm).
Source · Traktorenlexikon, “Case-IH CS63/a”
How much horsepower does a CS-63 have?
The only figure for the CS-63 is 62.2 hp (46.4 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Case-IH CS63/a”
What engine is in a CS-63?
A CS-63 has a PERKINS 903-27 T, a 3-cylinder 2.70 L diesel engine.
| Make & model | PERKINS 903-27 T |
|---|---|
| Cylinders | 3, liquid-cooledSource 2 |
| Displacement | 164.8 ci · 2.70 L |
| Aspiration | supercharged |
| Max torque | 176 lb·ft · 239 N·m @ 1,400 rpmSource 2 |
| Electrical system | 12 VSource 2 |
Source · Traktorenlexikon, “Case-IH CS52/a”
How much will a CS-63 lift, and what is its hydraulic flow?
A CS-63 lifts 5,556 lb (2,520 kg) at the lower-link ends.
| Pump flow | 8.1 gpm · 30.8 L/min |
|---|---|
| Lift at ends | 5,556 lb · 2,520 kg |
| Rear PTO | 540/1000 rpm @ 2,046 engine rpm |
Source · Traktorenlexikon, “Case-IH CS63/a”
What transmission does a CS-63 have?
Transmission specifications for the CS-63 are below.
| Clutch | Dry double clutch |
|---|---|
| Top speed | 18.6–24.9 mph · 30–40 km/hthe article lists alternatives |
Source · Traktorenlexikon, “Case-IH CS63/a”
How much does a CS-63 weigh?
A CS-63 weighs 5,490 lb (2,490 kg) unladen.
| Unladen weight | 5,490 lb · 2,490 kgtwo-wheel-drive version |
|---|---|
| Wheelbase | 83.3 in · 2,117 mm |
| Length | 139.0 in · 3,530 mmtwo-wheel-drive version |
| Width | 74.8 in · 1,900 mm |
| Height | 92.9 in · 2,360 mm |
| Front track | 52.0 in · 1,322 mmtwo-wheel-drive version |
| Rear track | 58.7 in · 1,492 mm |
Source · Traktorenlexikon, “Case-IH CS63/a”
Which tractors compare with a CS-63?
Within 10% of its 62.2 hp of claimed engine power, the same type, and first built within 15 years of it.
- Steyr M 963 (a)62.2 hp engine, claimed · 2001–2004Side by side with the CS-63 →
- John Deere 2200 (A)62.2 hp engine, claimed · 1993–1996Side by side with the CS-63 →
- SAME Dorado 65 (DT)62.1 hp engine, claimed · 2000–2004Side by side with the CS-63 →
- ZETOR 5321/5341 Super63.2 hp engine, claimed · 1997–2004Side by side with the CS-63 →
- Steyr 964 (a)63.2 hp engine, claimed · 1992–1997Side by side with the CS-63 →
- UTB U-643 DT63.2 hp engine, claimed · 1988–2004Side by side with the CS-63 →
Everything else people ask
Is a CS-63 two-wheel drive or four-wheel drive?
The Case-IH CS-63 was built in two-wheel drive (2WD) and four-wheel drive (4WD) versions, depending on configuration.
What PTO does a CS-63 have?
A CS-63 has a 540/1000 rpm rear PTO.
Where this page comes from
Compiled from Traktorenlexikon, “Case-IH CS63/a”; and Traktorenlexikon, “Case-IH CS52/a”.
