- Rigid chassis
- WhichTractor size: Compact
- Not independently tested
- 1980–1984
- 53,322 built
WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

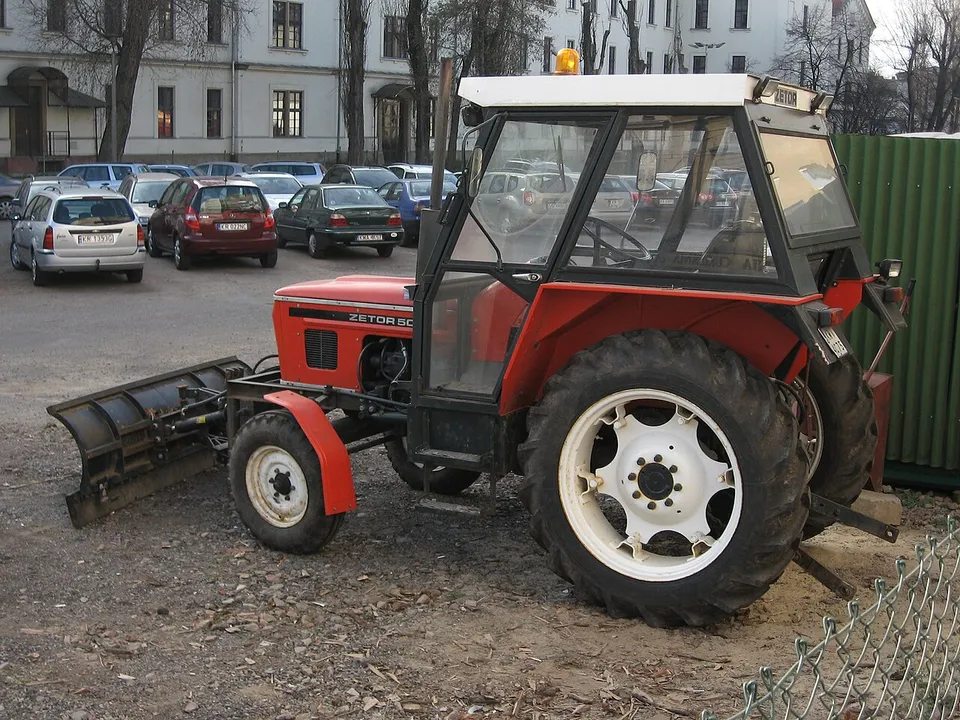

ZETOR 5011 Full specifications
ZBROJORKA Z-5001 three-cylinder diesel. The manufacturer claimed 44.4 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
44.4 hp
33.1 kW as stated by the source
Not independently tested
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Zetor 5011”, claimed
- Weight
- 5,886 lb
- 3-point lift
- 2,359 lb
- Hyd. flow
- 6.2 gpm
- Top speed
- 15.5 mph
ZETOR 5011 specs: key facts
The ZETOR 5011 was built from 1980 to 1984.
The ZETOR 5011 has a claimed engine power (gross or net not stated) of 33.1 kW (44.4 hp); it has no measured PTO figure.
The ZETOR 5011 is two-wheel drive (2WD).
The ZETOR 5011 has a ZBROJORKA Z-5001 engine, a 3-cylinder 2.70 L diesel unit.
The ZETOR 5011 weighs 2,670 kg (5,886 lb) unladen.
The ZETOR 5011 has an independent rear PTO running at 540 rpm.
The three-point hitch of the ZETOR 5011 lifts 1,070 kg (2,359 lb) at the lower-link ends.
The hydraulic pump of the ZETOR 5011 delivers 23.3 L/min (6.2 gpm).
Source · Traktorenlexikon, “Zetor 5011”
How much horsepower does a 5011 have?
The only figure for the 5011 is 44.4 hp (33.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Zetor 5011”
What engine is in a 5011?
A 5011 has a ZBROJORKA Z-5001, a 3-cylinder 2.70 L diesel engine.
| Make & model | ZBROJORKA Z-5001 |
|---|---|
| Cylinders | 3, liquid-cooled |
| Displacement | 164.5 ci · 2.70 L |
| Max torque | 108 lb·ft · 147 N·m @ 1,600 rpm |
| Injection | Direct injection |
| Electrical system | 12 V |
Source · Traktorenlexikon, “Zetor 5011”
How much will a 5011 lift, and what is its hydraulic flow?
A 5011 lifts 2,359 lb (1,070 kg) at the lower-link ends of its Category 2 three-point hitch.
| Pump flow | 6.2 gpm · 23.3 L/min |
|---|---|
| Pressure | 3,046 psi · 210 bar |
| Hitch category | Category 2 |
| Lift at ends | 2,359 lb · 1,070 kg |
| Rear PTO | Independent, engine-driven, 540 rpm @ 1,994 engine rpmGround-speed PTO available |
| PTO shaft | 1 3/8"- 6 splines and or 1 3/8"- 21 part |
Source · Traktorenlexikon, “Zetor 5011”
What transmission does a 5011 have?
Transmission specifications for the 5011 are below.
| Clutch | Pedal-operated dry Zbrojovka double clutch |
|---|---|
| Top speed | 15.5 mph · 25 km/h |
Source · Traktorenlexikon, “Zetor 5011”
How much does a 5011 weigh?
A 5011 weighs 5,886 lb (2,670 kg) unladen.
| Unladen weight | 5,886 lb · 2,670 kg |
|---|---|
| Wheelbase | 79.7 in · 2,025 mm |
| Length | 132.9 in · 3,375 mm |
| Width | 71.3 in · 1,810 mm |
| Height | 103.1 in · 2,620 mm |
| Ground clearance | 17.3 in · 440 mm |
| Front track | 50.4–68.9 in · 1,280–1,750 mm |
| Rear track | 53.1–70.9 in · 1,350–1,800 mm |
| Turning radius, braked | 10.1 ft · 3.09 m |
Source · Traktorenlexikon, “Zetor 5011”
Which tractors compare with a 5011?
Within 10% of its 40.0 hp at the PTO (claimed), the same type, and first built within 15 years of it.
- International Harvester 42339.9 hp PTO, claimed · 1966–1975Side by side with the 5011 →
- ZETOR 5211/524540.1 hp PTO, claimed · 1984–1993Side by side with the 5011 →
- Renault 50-12 LB40.1 hp PTO, claimed · 1987–1993Side by side with the 5011 →
- VALMET 50039.7 hp PTO, claimed · 1968–1971Side by side with the 5011 →
- Fiat 480-8 (DT)40.3 hp PTO, claimed · 1981–1982Side by side with the 5011 →
- SOMECA 480-8 (TD)40.3 hp PTO, claimed · 1981–1982Side by side with the 5011 →
Everything else people ask
Is a 5011 two-wheel drive or four-wheel drive?
The ZETOR 5011 is two-wheel drive (2WD).
What PTO does a 5011 have?
A 5011 has a independent 540 rpm rear PTO on a 1 3/8"- 6 splines and or 1 3/8"- 21 part shaft.
Where this page comes from
Compiled from Traktorenlexikon, “Zetor 5011”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: Zetor 5011 — CC BY-SA 4.0, WIKIBOOKS-TL-100595 · revision 989276. Wikibooks contributors (Traktorenlexikon). Original document
