- Rigid chassis
- WhichTractor size: High-power
- No lab test on file
- 1976–1982
It sits on the standard-size/high-power boundary, so either size is a fair description. It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
Derived by WhichTractor from a sourced three-point linkage. How we decide what a machine is

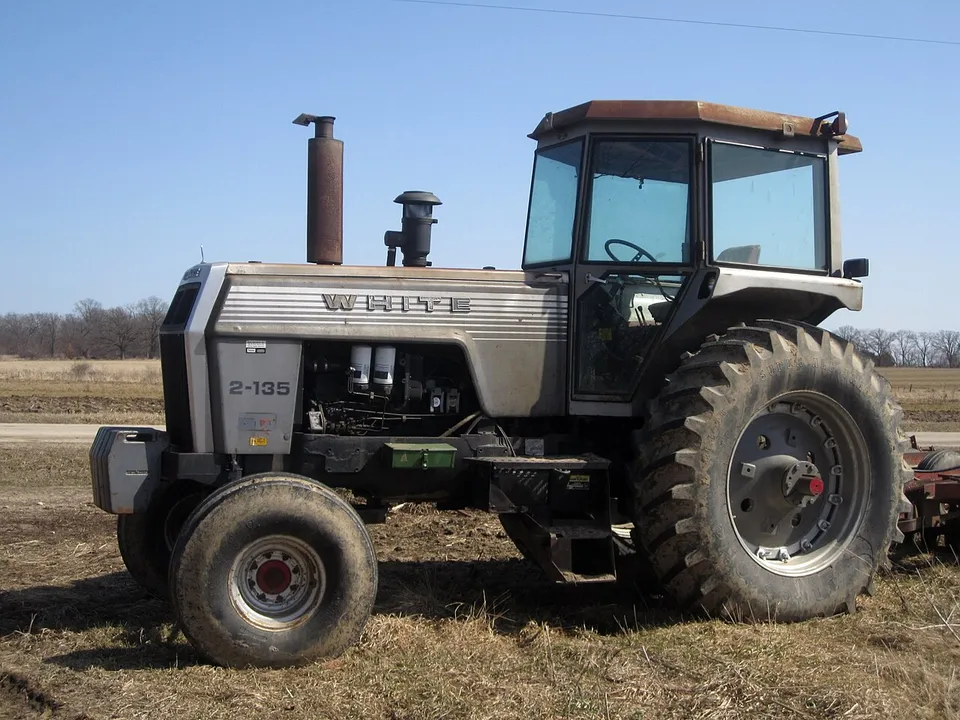

WHITE 2-135 specs: hp, weight, years
The manufacturer claimed 135.2 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
135.2 hp
100.8 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “White 2-135”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 14,182 lb
- Top speed
- 18.6 mph
WHITE 2-135 specs: key facts
The WHITE 2-135 was built from 1976 to 1982.
The WHITE 2-135 has a claimed engine power (gross or net not stated) of 100.8 kW (135.2 hp); it has no measured PTO figure.
The WHITE 2-135 is two-wheel drive (2WD).
The WHITE 2-135 weighs 6,433 kg (14,182 lb) unladen.
The WHITE 2-135 has an independent rear PTO running at 1000 rpm.
Source · Traktorenlexikon, “White 2-135”
How does the 2-135 compare with its class?
- Limitation:
The power figure is a manufacturer claim, not a measurement. No laboratory test report exists for this machine. Of the 264 tractors within 10% of its power, 11% carry one.
Derived by WhichTractor from 264 comparable records. How we work this out
How much horsepower does a 2-135 have?
The only figure for the 2-135 is 135.2 hp (100.8 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “White 2-135”
How much will a 2-135 lift?
Hydraulic and PTO specifications for the 2-135 are below.
| System | Closed centre |
|---|---|
| Rear PTO | Independent, engine-driven, 1000 rpm |
| PTO shaft | 1 3/8"- 6 splines (Form-A) |
Source · Traktorenlexikon, “White 2-135”
What transmission does a 2-135 have?
Transmission specifications for the 2-135 are below.
| Clutch | Pedal-operated dry single-disc clutch |
|---|---|
| Brakes | Pedal-operated hydraulic wet disc brake acting on differential half-shafts of rear axle |
| Steering | Hydrostatic steering |
| Top speed | 18.6 mph · 30 km/h |
Source · Traktorenlexikon, “White 2-135”
How much does a 2-135 weigh?
A 2-135 weighs 14,182 lb (6,433 kg) unladen.
| Unladen weight | 14,182 lb · 6,433 kg4 WD: 6,758 |
|---|---|
| Wheelbase | 113.0 in · 2,870 mm4 WD: 2,286 |
| Length | 168.0 in · 4,267 mm |
| Width | 96.0 in · 2,438 mm |
| Height | 117.0 in · 2,972 mm |
| Ground clearance | 22.0 in · 559 mm4 WD: 406 |
| Front track | 60.0–84.0 in · 1,524–2,134 mm |
| Rear track | 60.0–106.0 in · 1,524–2,692 mm |
| Turning radius, braked | 12.2 ft · 3.71 m |
Source · Traktorenlexikon, “White 2-135”
What oil does a 2-135 take, and how much?
A 2-135 engine takes 11.0 qt (10.4 L). Single source, not independently verified — always confirm against the operator’s manual for your machine.
| System | Capacity |
|---|---|
| Engine oil | 11.0 qt · 10.4 LSource: Traktorenlexikon, “White 2-135” · single source, not independently verified |
| Transmission | 42.6 qt · 40.3 LSource: Traktorenlexikon, “White 2-135” · single source, not independently verified |
| Hydraulic | 92.0 qt · 87.1 LSource: Traktorenlexikon, “White 2-135” · single source, not independently verified |
| Cooling system | 14.8 qt · 14.0 LSource: Traktorenlexikon, “White 2-135” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a 2-135?
Within 10% of its 135.2 hp of claimed engine power, the same type, and first built within 15 years of it.
- Deutz-Fahr DX 6.50A135.2 hp engine, claimed · 1983–1990Side by side with the 2-135 →
- DEUTZ-ALLIS 9130135.2 hp engine, claimed · 1989–1990Side by side with the 2-135 →
- AGCO-ALLIS 9130135.2 hp engine, claimed · 1991–1992Side by side with the 2-135 →
- ALLIS-CHALMERS 220 Landhandler136.1 hp engine, claimed · 1969–1973Side by side with the 2-135 →
- VALMET 1502134 hp engine, claimed · 1975–1980Side by side with the 2-135 →
- Massey Ferguson 1134 (A)133.3 hp engine, claimed · 1978–1990Side by side with the 2-135 →
Common questions about the WHITE 2-135
Is a 2-135 two-wheel drive or four-wheel drive?
The WHITE 2-135 is two-wheel drive (2WD).
What PTO does a 2-135 have?
A 2-135 has a independent 1000 rpm rear PTO on a 1 3/8"- 6 splines (Form-A) shaft.
Sources and how this page was built
Compiled from Traktorenlexikon, “White 2-135”.
Sources
Facts taken from these documents, units converted. Numbers beside a figure refer to this list. Licences and attribution
- Traktorenlexikon: White 2-135 — CC BY-SA 4.0, WIKIBOOKS-TL-122221 · revision 1080300. Wikibooks contributors (Traktorenlexikon). Original document
