- Vehicle type: unspecified
- Rigid chassis
- WhichTractor size: Utility
- No lab test on file
- 1947–1952
- 9,469 built
It was ranked on an engine power figure whose source does not say gross or net. WhichTractor size, not the maker’s category
We looked and the record does not say what this machine is. How we decide what a machine is

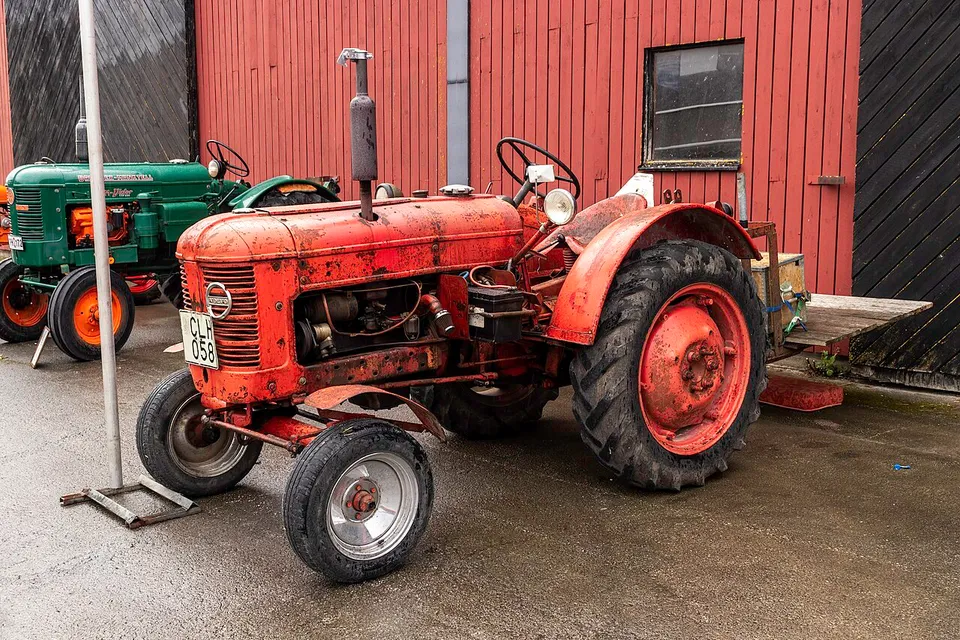

Volvo T-22 specs: hp, weight, years
VOLVO C 4 F four-cylinder. The manufacturer claimed 20.2 horsepower. No laboratory has tested one, so there is no measured figure at the shaft.
Engine power, claimed · gross or net not stated
20.2 hp
15.1 kW as stated by the source
No lab test on file
Claimed · standard not stated by the source
Source · Traktorenlexikon, “Volvo T 22”, claimed
This is the maker’s own figure, measured at the engine. Power at the PTO is lower — by how much, for this machine, nobody has measured.
- Weight
- 2,767 lb
- Top speed
- 12.4 mph
Volvo T-22 specs: key facts
The Volvo T-22 was built from 1947 to 1952.
The Volvo T-22 has a claimed engine power (gross or net not stated) of 15.1 kW (20.2 hp); it has no measured PTO figure.
The Volvo T-22 is two-wheel drive (2WD).
The Volvo T-22 has a VOLVO C 4 F engine, a 4-cylinder 2.00 L unit.Source 1
The Volvo T-22 weighs 1,255 kg (2,767 lb) unladen.
The Volvo T-22 has a rear PTO running at 540 rpm.
Source · Traktorenlexikon, “Volvo T 22”
How much horsepower does a T-22 have?
The only figure for the T-22 is 20.2 hp (15.1 kW) of claimed engine power, gross or net not stated, no test standard stated — not power at the shaft.
Source · Traktorenlexikon, “Volvo T 22”
What engine is in a T-22?
A T-22 has a VOLVO C 4 F, a 4-cylinder 2.00 L engine.
| Make & model | VOLVO C 4 F |
|---|---|
| Cylinders | 4, liquid-cooledSource 2 |
| Displacement | 122.2 ci · 2.00 L |
| Electrical system | 6 VSource 2 |
Source · Traktorenlexikon, “Volvo T 21”
How much will a T-22 lift?
Hydraulic and PTO specifications for the T-22 are below.
| Rear PTO | 540 rpm |
|---|
Source · Traktorenlexikon, “Volvo T 22”
What transmission does a T-22 have?
Transmission specifications for the T-22 are below.
| Clutch | Pedal-operated dry single-plate clutch |
|---|---|
| Brakes | Pedal-operated internal expanding brakes, acting on the rear wheels |
| Steering | Mechanical steering |
| Top speed | 12.4 mph · 20 km/h |
Source · Traktorenlexikon, “Volvo T 22”
How much does a T-22 weigh?
A T-22 weighs 2,767 lb (1,255 kg) unladen.
| Unladen weight | 2,767 lb · 1,255 kg |
|---|---|
| Wheelbase | 66.9 in · 1,700 mm |
| Length | 98.8 in · 2,510 mm |
| Width | 51.2 in · 1,300 mm |
| Height | 73.0 in · 1,855 mm |
| Front track | 47.2–53.9 in · 1,200–1,370 mmthe article lists alternatives |
| Rear track | 47.2–74.8 in · 1,200–1,900 mm |
Source · Traktorenlexikon, “Volvo T 22”
What oil does a T-22 take, and how much?
Fluid capacities for the T-22 are below.
| System | Capacity |
|---|---|
| Cooling system | 11.6 qt · 11 LSource: Traktorenlexikon, “Volvo T 22” · single source, not independently verified |
Always confirm against the operator’s manual for your machine before service.
Which tractors compare with a T-22?
Within 10% of its 20.2 hp of claimed engine power, the same type, and first built within 15 years of it.
- John Deere Modell-M20.4 hp engine, claimed · 1947–1952Side by side with the T-22 →
- MASSEY-HARRIS 101/102 Junior20.5 hp engine, claimed · 1939–1946Side by side with the T-22 →
- MASSEY-HARRIS M-H 8120.8 hp engine, claimed · 1941–1946Side by side with the T-22 →
- MASSEY-HARRIS M-H 8220.8 hp engine, claimed · 1941–1946Side by side with the T-22 →
- International Harvester D-320 Farmall19.7 hp engine, claimed · 1956–1962Side by side with the T-22 →
- Fiat 211 R (A)19.7 hp engine, claimed · 1958–1964Side by side with the T-22 →
Common questions about the Volvo T-22
Is a T-22 two-wheel drive or four-wheel drive?
The Volvo T-22 is two-wheel drive (2WD).
What PTO does a T-22 have?
A T-22 has a 540 rpm rear PTO.
